5 Mounting and connection

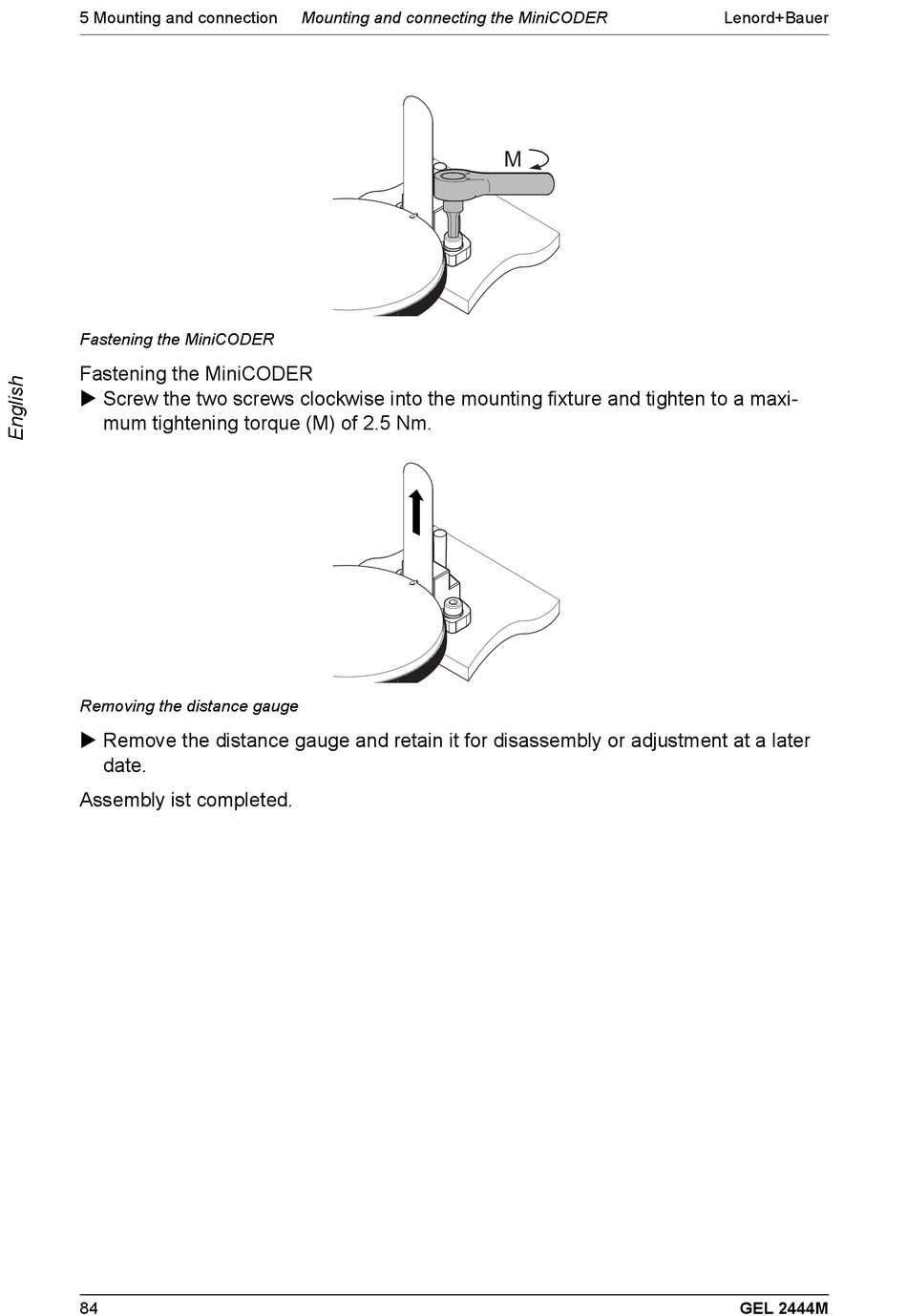

Fastening the MiniCODER
Fastening the MiniCODER
 Screw the two screws clockwise into the mounting fixture and tighten to a maxi-
mum tightening torque (M) of 2.5 Nm.
Removing the distance gauge
 Remove the distance gauge and retain it for disassembly or adjustment at a later
date.
Assembly ist completed.
