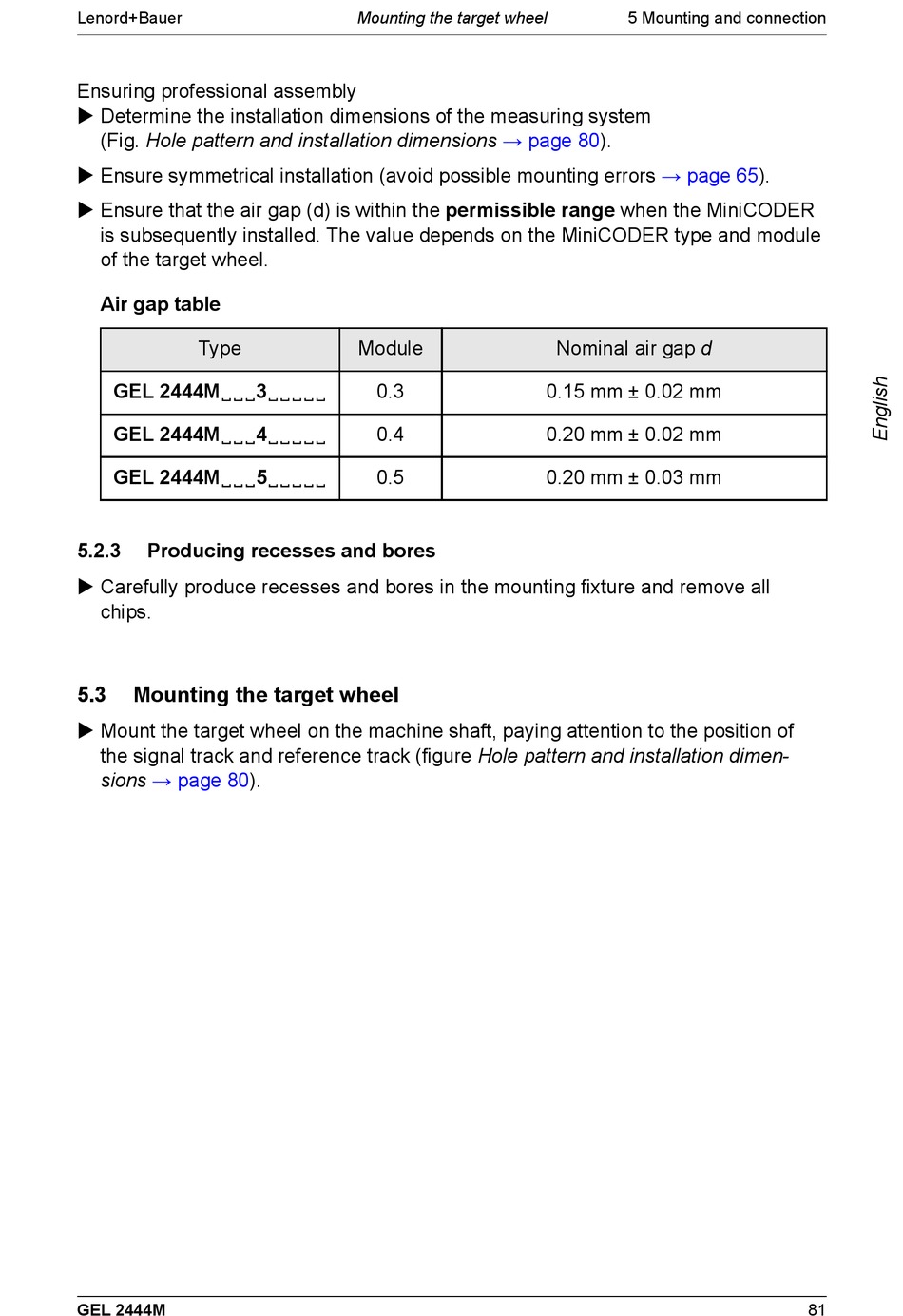

Ensuring professional assembly
Determine the installation dimensions of the measuring system
(Fig. Hole pattern and installation dimensions
Ensure symmetrical installation (avoid possible mounting errors
Ensure that the air gap (d) is within the permissible range when the MiniCODER
is subsequently installed. The value depends on the MiniCODER type and module
of the target wheel.
Air gap table
Type
GEL 2444M
GEL 2444M
GEL 2444M
5.2.3
Producing recesses and bores
Carefully produce recesses and bores in the mounting fixture and remove all
chips.
5.3
Mounting the target wheel
Mount the target wheel on the machine shaft, paying attention to the position of
the signal track and reference track (figure Hole pattern and installation dimen-
sions
→ page
80).
GEL 2444M
Mounting the target wheel
Module
3
0.3
4
0.4
5
0.5
5 Mounting and connection
→ page
80).
→ page
Nominal air gap d
0.15 mm ± 0.02 mm
0.20 mm ± 0.02 mm
0.20 mm ± 0.03 mm
65).
