BIKE SET-UP

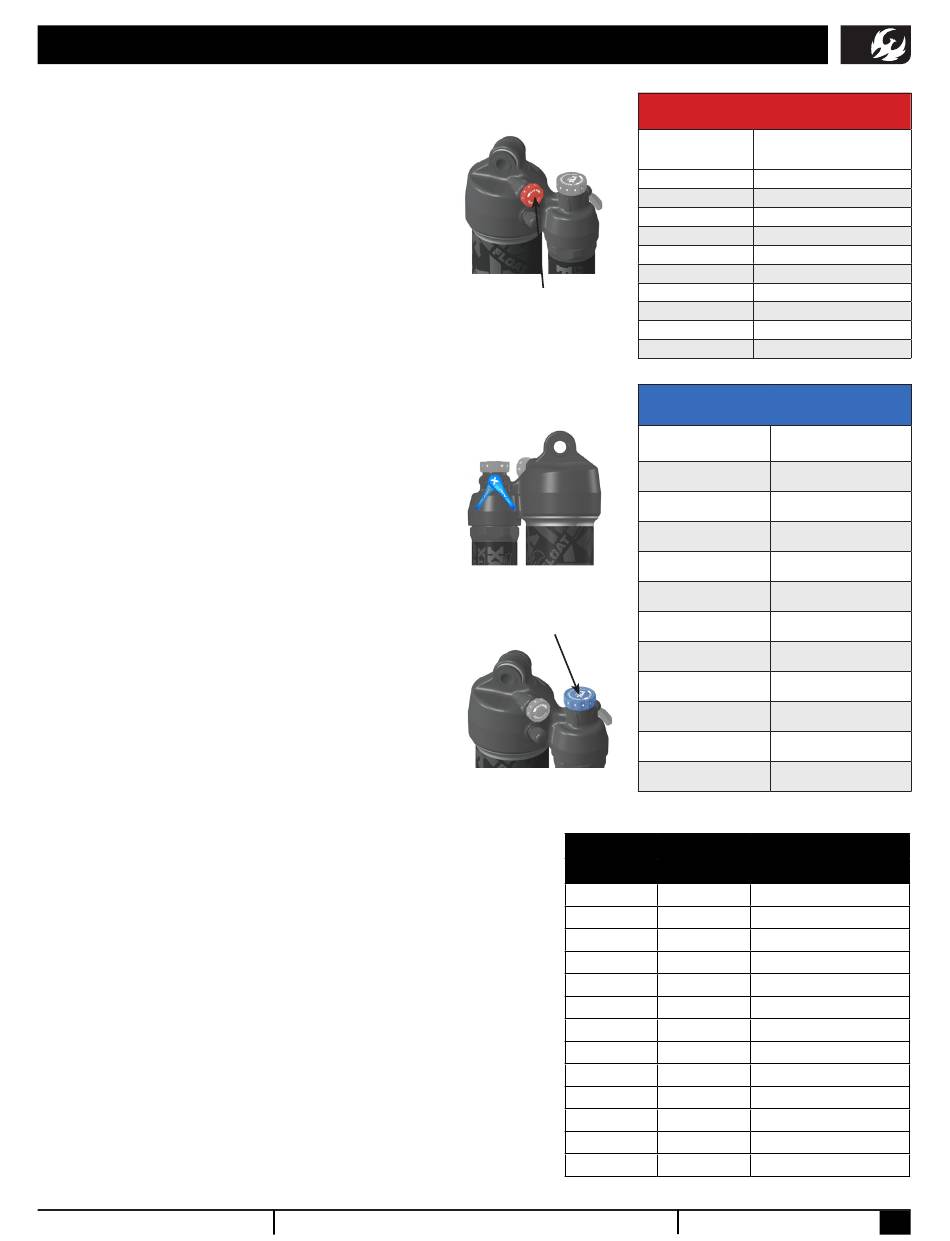

Setting Rebound Damping on the Fox Float X
• Rebound is set from the most open (fully
counter-clockwise) position.
• The rebound setting is determined by the air
pressure in the shock.
• Refer to the table on the right for the suggested
rebound setting. The number in the chart refers
to how many clicks in (clockwise) from the open
setting the rebound should be set. Fox sets
rebound from the closed position, so that has
been provided in the table in parentheses.
Setting Compression Damping on the Float X
2-Position Lever
Float X shocks feature a two position lever that
allows for on-the-fly adjustment between fully
open and firm for climbing. For most riding
conditions it is best to have the lever open. As with
the other shocks, the firm setting is best suited for
long fire road climbs and smooth XC courses.
Low Speed Compression Adjuster
The Factory Series Float X features a
speed compression adjustment knob, which can
be used to fine tune the open mode of the com-
pression damping. This knob offers 10 additional
fine tune adjustment settings to the open mode.
Turning the knob clockwise will increase low
speed compression damping. Turning the knob
counter-clockwise will decrease low speed com-
pression damping. You can experiment with all of
these options to find the setting that provides the
best compression support and plushest feel for
your weight and riding style. Refer to the table to
the right for initial settings.
Setting Air Pressure on the Fox 38 Forks
• Fox recommends setting sag between 15% and 20%
of the total fork travel. The Shuttle LT comes with a
170mm fork, so the proper sag measurement is 25.5 -
34.0mm.
• The air pressure in the Fox 38 forks should not exceed
8.3 [bar] (120 [psi]).
• To achieve the proper sag, reference the chart to the
right for an initial starting point.
• Just like with the shock sag, the fork needs to be
equalized when the pressure is changed. Press down on
the fork a few times after making a pressure change to
get an accurate measurement.
