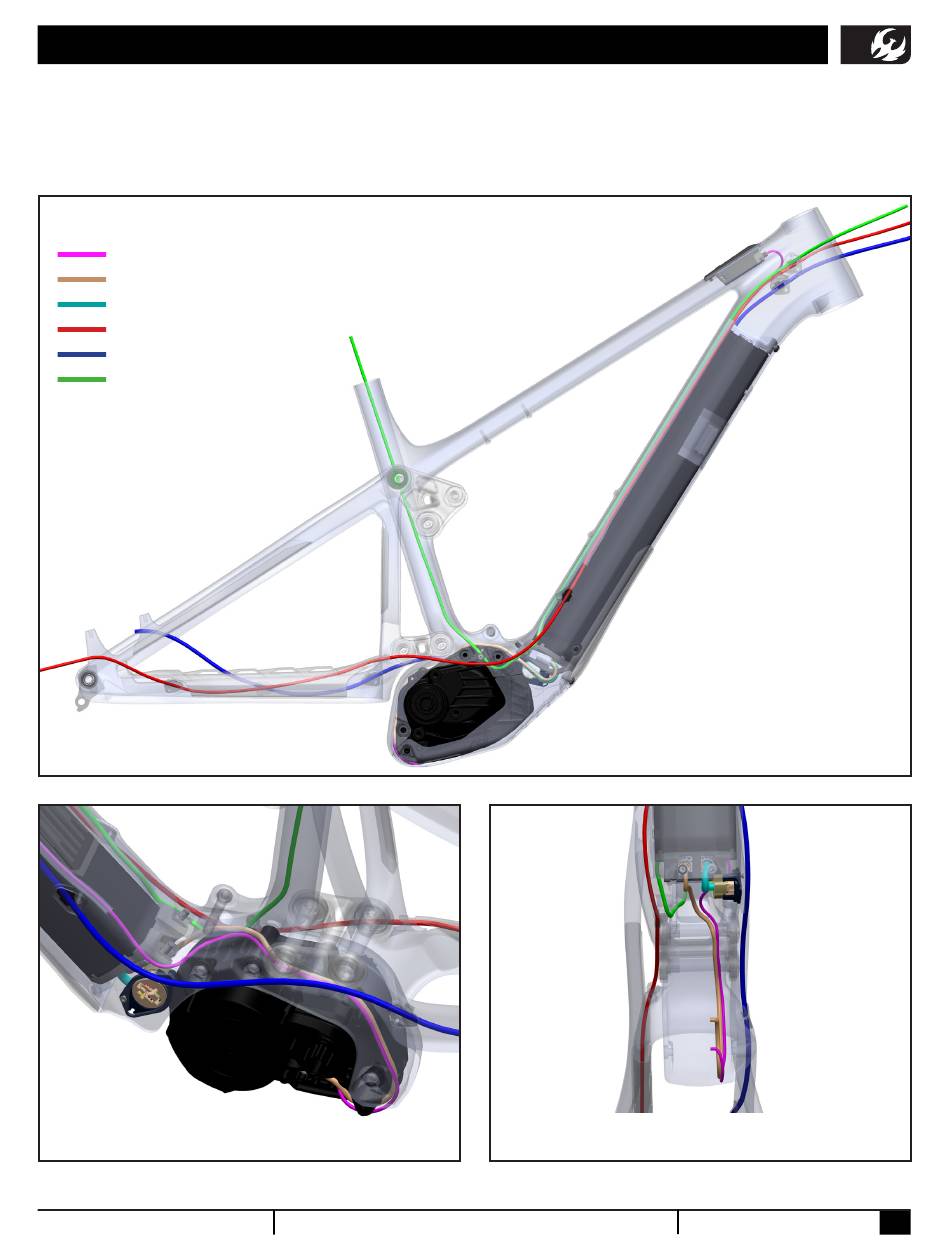

SHUTTLE LT WIRING DIAGRAM
• The diagrams below will help illustrate how the wires are to be routed through the internal cable guides.
• The routing shown below will help minimize the likelihood of pinching a wire when removing and installing
the motor for maintenance purposes.
Frame Wiring Diagram
System Controller Wire
Battery Wire
Charging Port Wire
Shift Housing
Brake Line
Dropper Post Housing
Side View of System Wiring
pivotcycles.com info@pivotcycles.com
Top View of System Wiring
