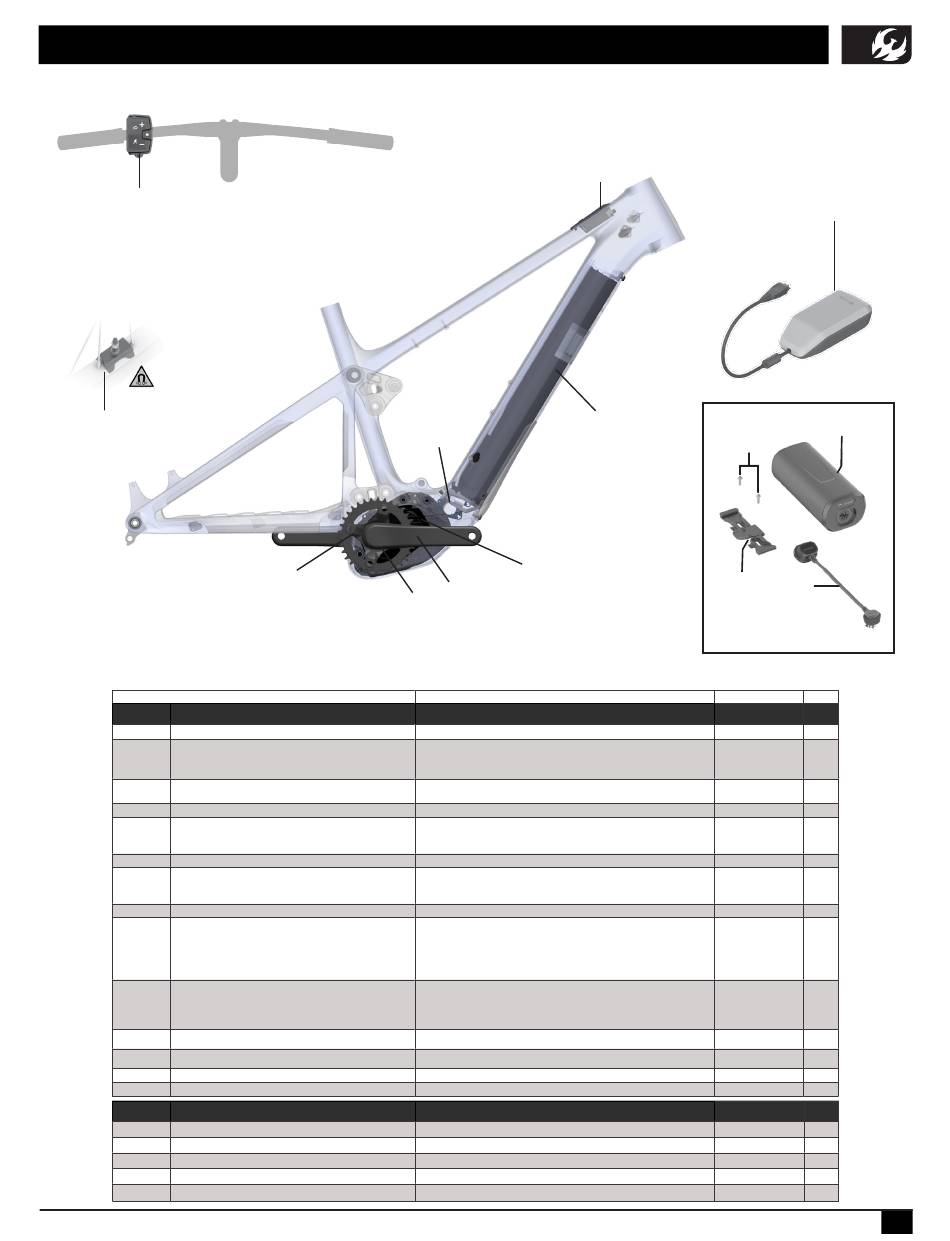

SCHÉMA DE L'UNITÉ MOTRICE BOSCH
(A)
(D)
LETTRE
A Mini Remote
System Controller
B 1300mm HMI cable
SCREW FOR SYSTEM CONTROLLER
PowerTube 750 Battery (US, CAN, JP, KOR)
C
PowerTube 750 Battery (EU28, CH, NO, AUS, NZ)
D Rim Magnet/ sleeve (Speed Sensor)
Spider & Chainring (Ride Builds)
E Spider & Chainring (Pro Builds)
Spider & Chainring (Team Builds)
F Drive Unit Lockring & O-Ring
Crank Arms (Ride Builds)
G
Crank Arms (Pro Builds)
Crank Arms (Team Builds)
H CX Performance Race Edition Drive Unit
Charging Socket & Cable
Charging Socket Cover
I CHARGING SOCKET HOLDER
CHARGING SOCKET O-RING 24X2
CHARGING SOCKET SCREW M3X14
Battery Charger 4A110V/Cable (US)
J
Battery Charger 4A 230V/Cable(EU)
Battery Charger 4A 230V/Cable(AUS)
Battery Charger 4A 230V/Cable(UK)
K PowerMore 250 Range Extender Battery (NA/EU)
L PowerMore Cable 150mm
M M5x8 Bracket Fastening Screws
N Bracket for PowerMore
LETTRE
- DRIVE UNIT CONNECTION SHORT PLATE LEFT
- DRIVE UNIT CONNECTION SHORT PLATE RIGHT
- BATTERY ADAPTER 2 (2 PLUG IN LOCATION FOR BATTERY CABLE)
- BATTERY CABLE 500MM
- LOGO BEZEL FOR PERFORMANCE CX RACE EDITION DRIVE UNIT
