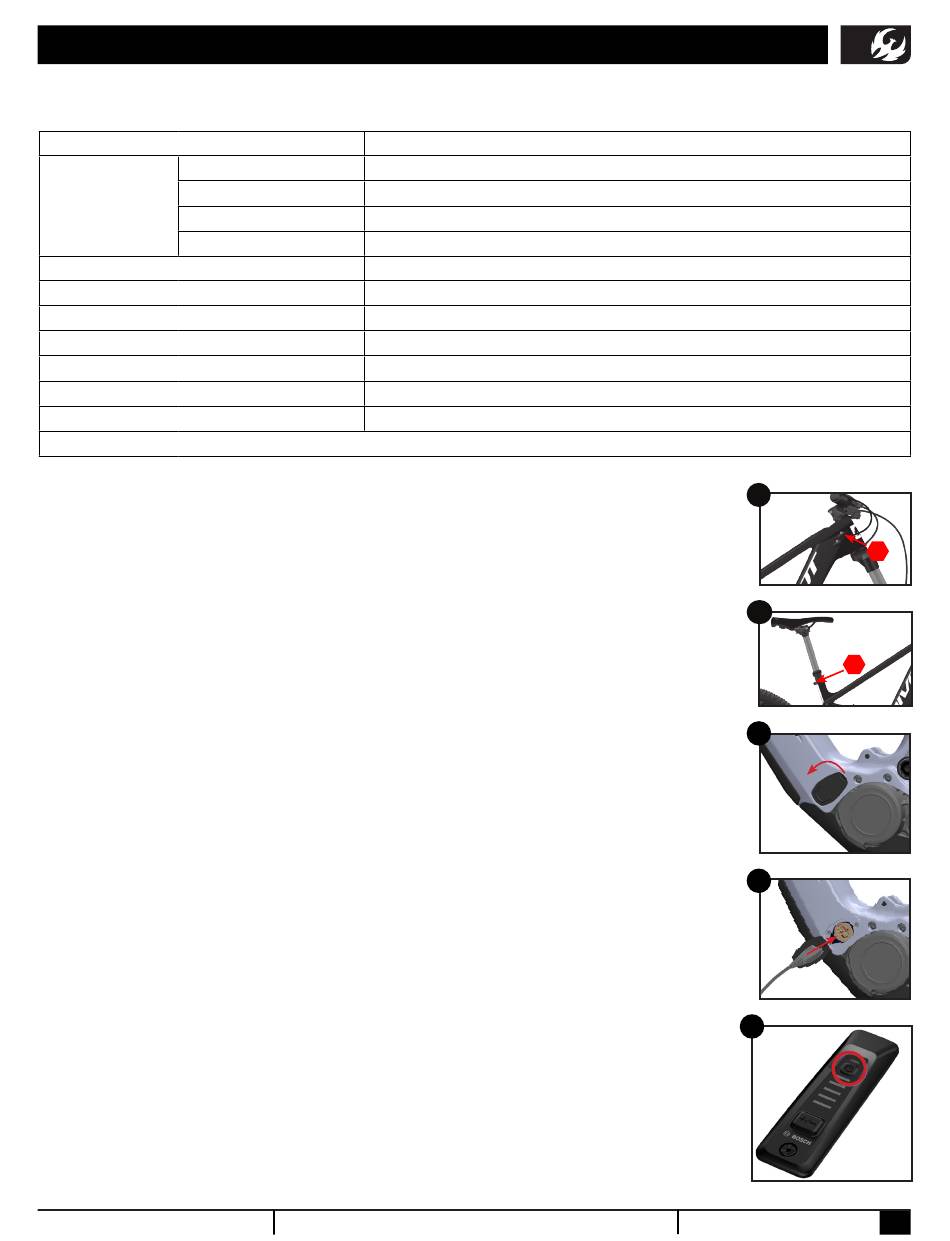

QUICK START GUIDE
This "Quick Start Guide" provides the essential information to set up your bike.
Suspension/Tire Set-up
COMPONENT
Body Weight in [lbs] to [psi] Float X: Body Weight [lbs] + 10 [psi] | Float X2: Body Weight [lbs] + 20 [psi]
Shock Air Pressure
(by Body Weight) Body Weight in [kg] to [psi] Float X: 2.2 × Body Weight [kg] + 10 [psi]| Float X2: 2.2 × Body Weight [kg] + 20 [psi]
! Always Check Sag
Body Weight in [kg] to [bar] Float X: 0.15 × Body Weight [kg] + 0.7 [bar]| Float X2: 0.15 × Body Weight [kg] + 1.4 [bar]
see page 3 !
Body Weight in [lbs] to [bar] Float X: 0.07 × Body Weight [lbs] + 0.7 [bar] | Float X2: 0.07 × Body Weight [lbs] + 1.4 [bar]
Shock Compression Damping
Shock Rebound Damping
Fork Air Pressure
Fork Compression Damping
Fork Rebound Damping
Front Tire Pressure
Rear Tire Pressure
* These Adjustments are not available on all builds.
Adjusting Saddle Height
1. Use a 2mm hex wrench, loosen the drive side cable port cap securing the dropper
post housing. (fig. 1)
2. Using a 4mm hex wrench, loosen the seat post clamp bolt and raise/lower the
saddle to the preferred height. (fig. 2)
3. Using a 4mm hex wrench, tighten the seat post clamp bolt to 5 Nm.
4. Tighten the cable port cap screw with a 2mm hex wrench to secure the dropper
post housing.
Charging the Battery
NOTE: The battery does not come fully charged and must be charged com-
pletely before the first use.
1. Locate the rubber charging port cover on the non-drive side of the frame. (fig.3)
2. Pull back the sealing cover to access the charging terminal.
3. Insert the charging cable into the charging terminal, ensuring the cable and
terminal are properly aligned. (fig. 4)
4. The System Controller will illuminate and display the charging status.
5. When done charging, remove the cable from the terminal and close the sealing
cover.
*The battery is fixed in the frame and should only be removed by an authorized
dealer.
Powering the System ON and OFF
1. The power button is located in the system controller on the top tube. (fig. 5)
2. Power the system on or off with a quick press and release on the power symbol
near the top of the controller. The System Controller will power up and power
down with an animation of the five LED bars.
3. If the bike has not moved for 10 minutes, the power will shut off automatically.
pivotcycles.com
Float X- 8 clicks in from OPEN* (Float X2 refer to page 4)
Float X- 6 clicks in from OPEN (Float X2 refer to page 4)
80 [psi] / 5.52 [bar]
HSC: 3 clicks in from OPEN*; LSC: 5 clicks in from OPEN
HSR: 3 clicks in from OPEN*; LSR: 9 clicks in from OPEN
23 [psi] / 1.58 [bar]
28 [psi] / 1.93 [bar]
info@pivotcycles.com
QUICK START SETTING
1.877.857.4868
1
2mm
2
4mm
3
4
5
1
