MINI REMOTE & SYSTEM CONTROLLER FUNCTION
(7)
(8) (9)

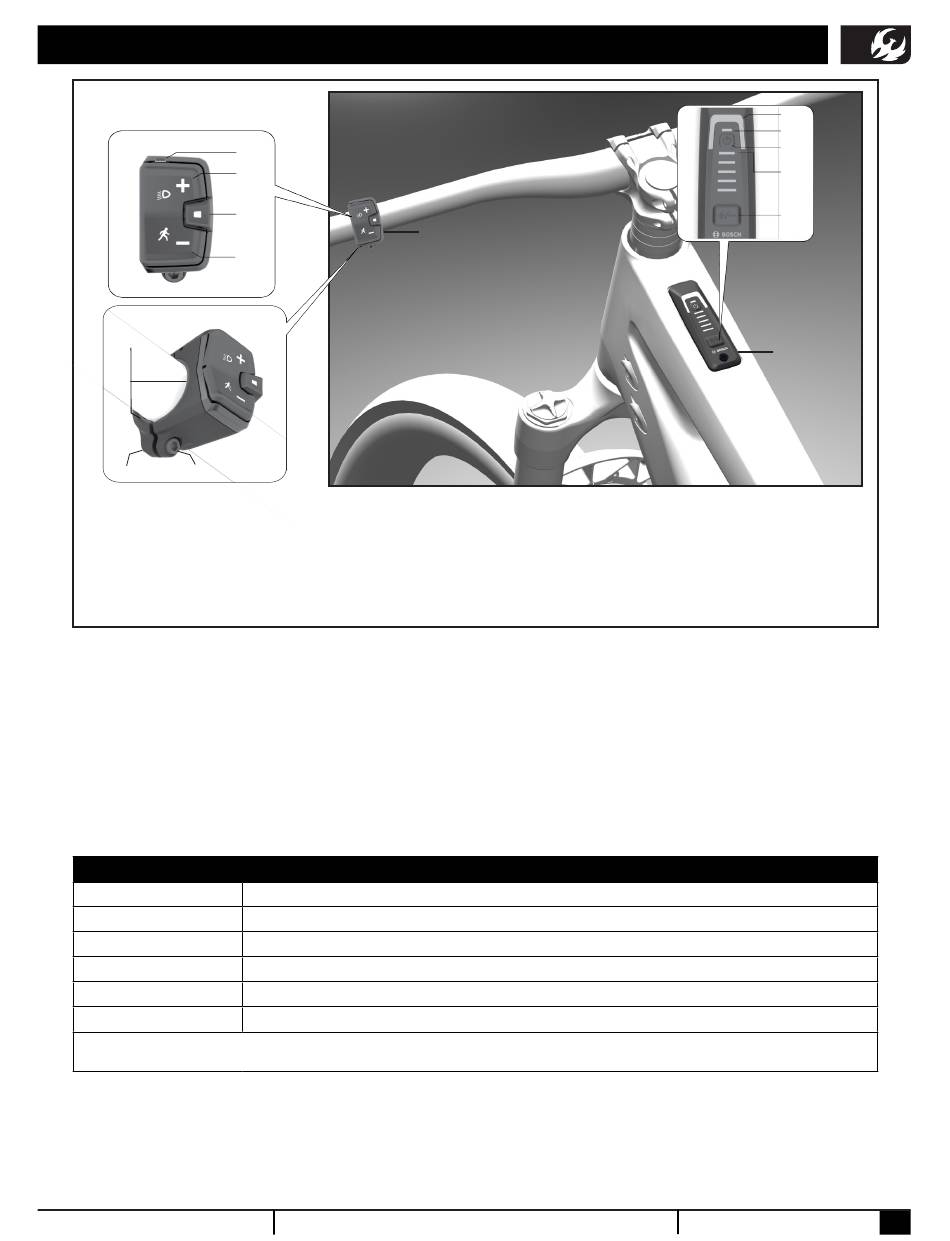

(1) Mini Remote operating unit
(2) System Controller
(3) LED indicator lamp
(4) Button for increasing support level +/ bike lights
(5) Select Button
(6) Button for decreasing support level -/walk assistance
(7) Rubber insert/battery holder
Adjusting the Level of Assistance
The assist level can be selected with the Mini Remote (1) or with the System Controller (2).
•
Mini Remote: Briefly press (< 1 s) the + (4) button to increase assistance. Briefly press (< 1 s) the - (6) button to
•
decrease assistance.
System Controller: Briefly press (< 1 s) the mode button (14) to increase assistance.
•
Press the mode button (14) for longer than 1 s to decrease the assistance.
•
• The assistance level can be changed at any time, even while cycling, and is displayed in color on the Assistance level
LED (10). See the table below for assist modes, LED color, and description.
The Shuttle LT also features walk assist. To start walk assistance, press the (6) button for < 1 s and keep it pressed.
•
The battery charge indicator (13) goes out and a white moving light in the direction of travel shows that it is ready.
Releasing the (6) button pauses walk mode.
LED COLOR
LED OFF
GREEN
BLUE
PURPLE
RED
FLASHING SEQUENCE Walk assist. The battery charge indicator (13) LEDs turn off then flash in the direction of travel.
*Assist levels can be selected or customized in the Bosch eBike Flow smartphone app. The LED colors stay the same even if you change
modes. Green will always be the lowest assist level and Red will always be the highest.
RACE MODE
The Shuttle LT is built with the Bosch Performance CX Limited Edition Race Motor. These limited edition motors feature a
more powerful assist level above Turbo. This maximum support has a very direct response behavior and maximum "Extended
Boost" for the best possible performance in competitive situations. This mode is so powerful it can be unmanageable in most
trail riding situations. We recommend getting comfortable with the bike in the lower power modes before using this powerful
mode. With great power comes great responsibility!
