LAUNCH SmartLink C V2.0 Schnellstartanleitung Seite 2

The SmartLink C V2.0 dongle can work as a VCI (Vehicle Communication Interface)
device, together with the LAUNCH-specific diagnostic tool, or as a SmartLink Customer
device, requesting technical assistance from a master technician (SmartLink B).

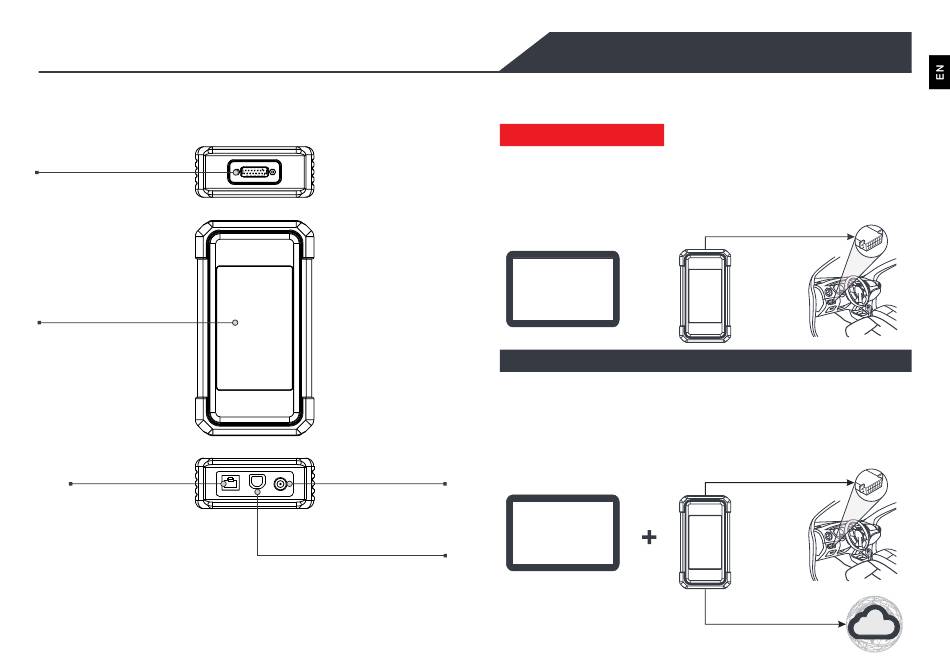

DB-15 Diagnostic Connector
3.97 Inch Touch Screen
LAN/WAN Port
(Connects the crossover
cable. Only applied in
the "SmartLink" mode.)
*Warning: The SmartLink C V2.0 dongle obtains power through the vehicle's DLC via the
DB-15 diagnostic connector.
Do NOT connect the DC-IN port to an external DC power supply when the SmartLink C V2.0
dongle is properly connected to the vehicle. No responsibility can be assumed for any damage
or loss caused as a result of not strictly following the above method.
The SmartLink C V2.0 dongle can be applied in the following situations(*For other application
scenario, see User Manual):
In this mode, it needs to work in conjunction with the Diagnose module of the diagnostic
tool, which is used to obtain vehicle data, and then send it to the diagnostic tool for
analysis via WiFi / BT / USB communication (*The available communication method depends
on the hardware of the diagnostic tool).
It can be used if users need remote technical assistance from master technicians. In this
mode, it does not communicate with the diagnostic tool, but it needs to work together with
the SmartLink module of the diagnostic tool. The diagnostic tool is mainly used to issue
remote diagnostic requests, and the SmartLink C V2.0 dongle is networked to receive and
execute commands from the remote SmartLink B (Business).
DC-IN Port
(See "*Warning".)
Data I/O Port
(Connects the data cable.)
*During the SmartLink diagnosis, especially
during remote online programming, it is
recommended that the vehicle battery is connected
to a charging power source. Doing so can prevent
the vehicle from running out of power and failing
to start due to long diagnosis time.
Knowledge
of
SmartLink
C
V2.0 Dongle
.
1 Works as a VCI device
Diagnostic Tool
WiFi/BT/
(Using " Diagnose "
USB
function)
.
2 Work as a SmartLink C(Customer) dongle (In the case of SmartLink Diag.)
Diagnostic Tool
(Using " SmartLink "
function)
Vehicle's DLC
Diagnostic Cable
Vehicle's DLC
Diagnostic Cable
Internet
