LAUNCH CReader Serie Schnellstartanleitung

CReader Series

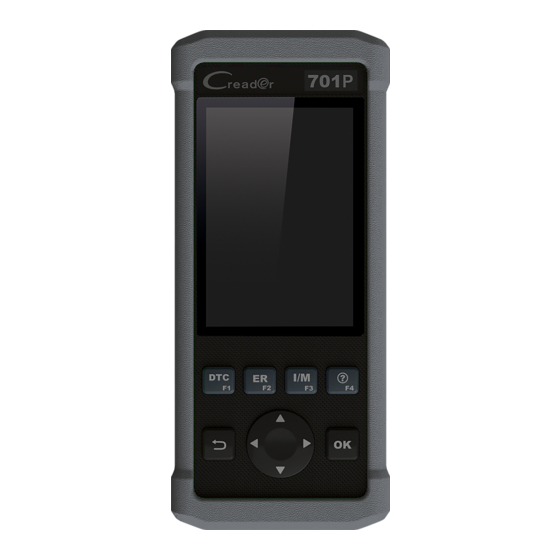

CReader Series Handset
(To connect to the vehicle with OBD2 DLC.)
(Indicates test results.)
Erase Button*1
(To clear the diagnostic trouble codes.)
DTC Button*1
(To read the diagnostic trouble codes.)
ESC Button
(To return to the previous screen.)
Memory Card Slot
(To insert the memory card to update your tool.)
USB Port
(To update your tool via USB cable.)
Notes:
Ÿ The buttons marked with * indicate the function hot keys(namely, F1, F2, F3 and F4) and only apply to Diagnostics.
CReader serial products feature the similar styling, except that some difference exists between appearance color and product features.
Ÿ
All pictures illustrated herein are only for reference. This Quick Start Guide is subject to change without prior written notice.
Quick Start Guide
DB15 Connector
LCD Screen
(To connect the vehicle's DLC and the tool.)
(Quick access to I/M readiness function.)
(Provides detailed descriptions/tips for diagnostics.)
OK Button
(Confirms the current operation.)
Selection Button
(Up/Down: To select different items.
Left/Right: To return /advance to the previous/next page.)
Diagnostic Cable
I/M Button*1
Help Button*1
