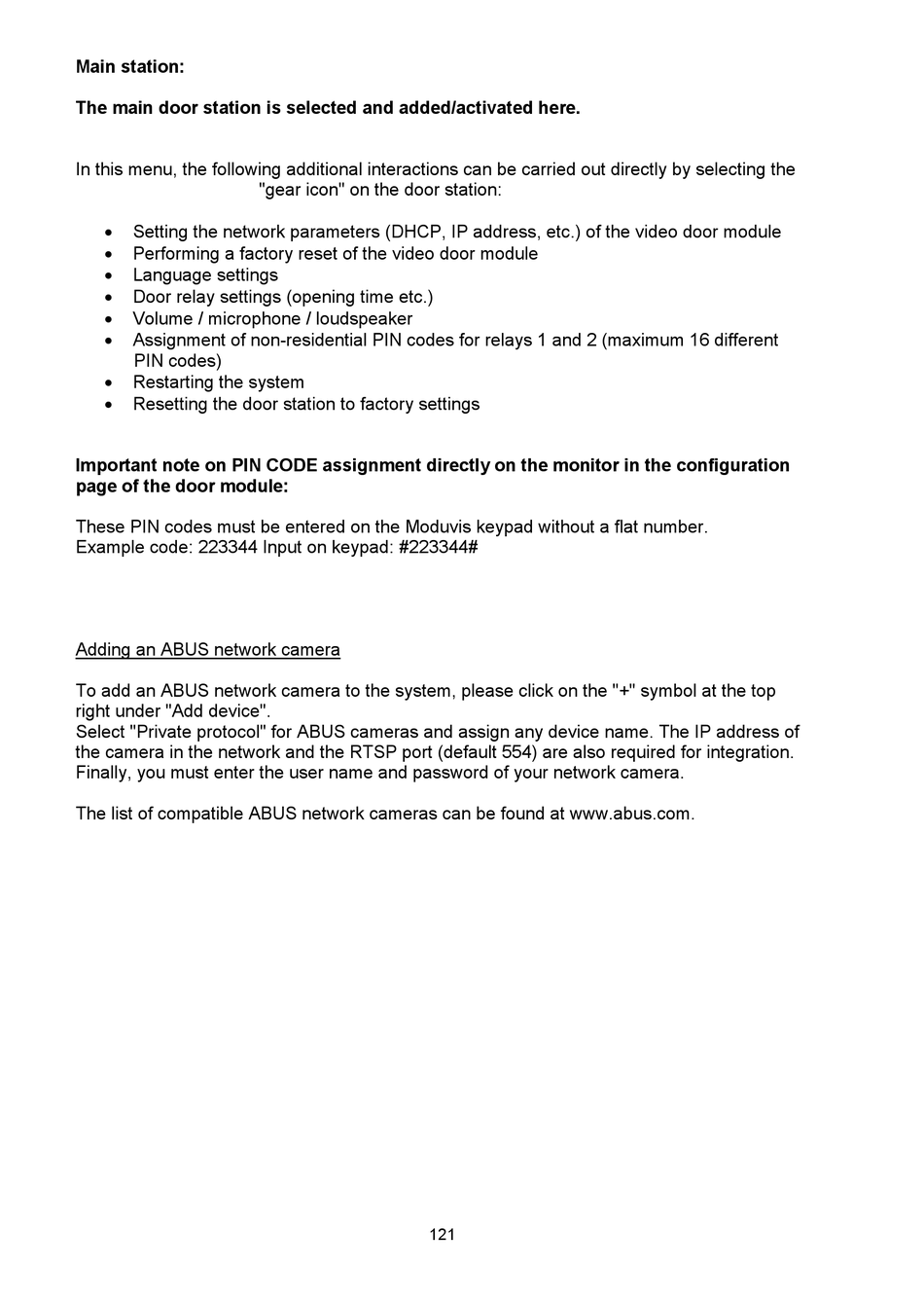

Abus MODUVIS Bedienungsanleitung Seite 121

Main station:
The main door station is selected and added/activated here.
In this menu, the following additional interactions can be carried out directly by selecting the

Setting the network parameters (DHCP, IP address, etc.) of the video door module

Performing a factory reset of the video door module

Language settings

Door relay settings (opening time etc.)

Volume / microphone / loudspeaker

Assignment of non-residential PIN codes for relays 1 and 2 (maximum 16 different
PIN codes)

Restarting the system

Resetting the door station to factory settings
Important note on PIN CODE assignment directly on the monitor in the configuration
page of the door module:
These PIN codes must be entered on the Moduvis keypad without a flat number.
Example code: 223344 Input on keypad: #223344#
Adding an ABUS network camera
To add an ABUS network camera to the system, please click on the "+" symbol at the top
right under "Add device".
Select "Private protocol" for ABUS cameras and assign any device name. The IP address of
the camera in the network and the RTSP port (default 554) are also required for integration.
Finally, you must enter the user name and password of your network camera.
The list of compatible ABUS network cameras can be found at www.abus.com.
"gear icon" on the door station:
