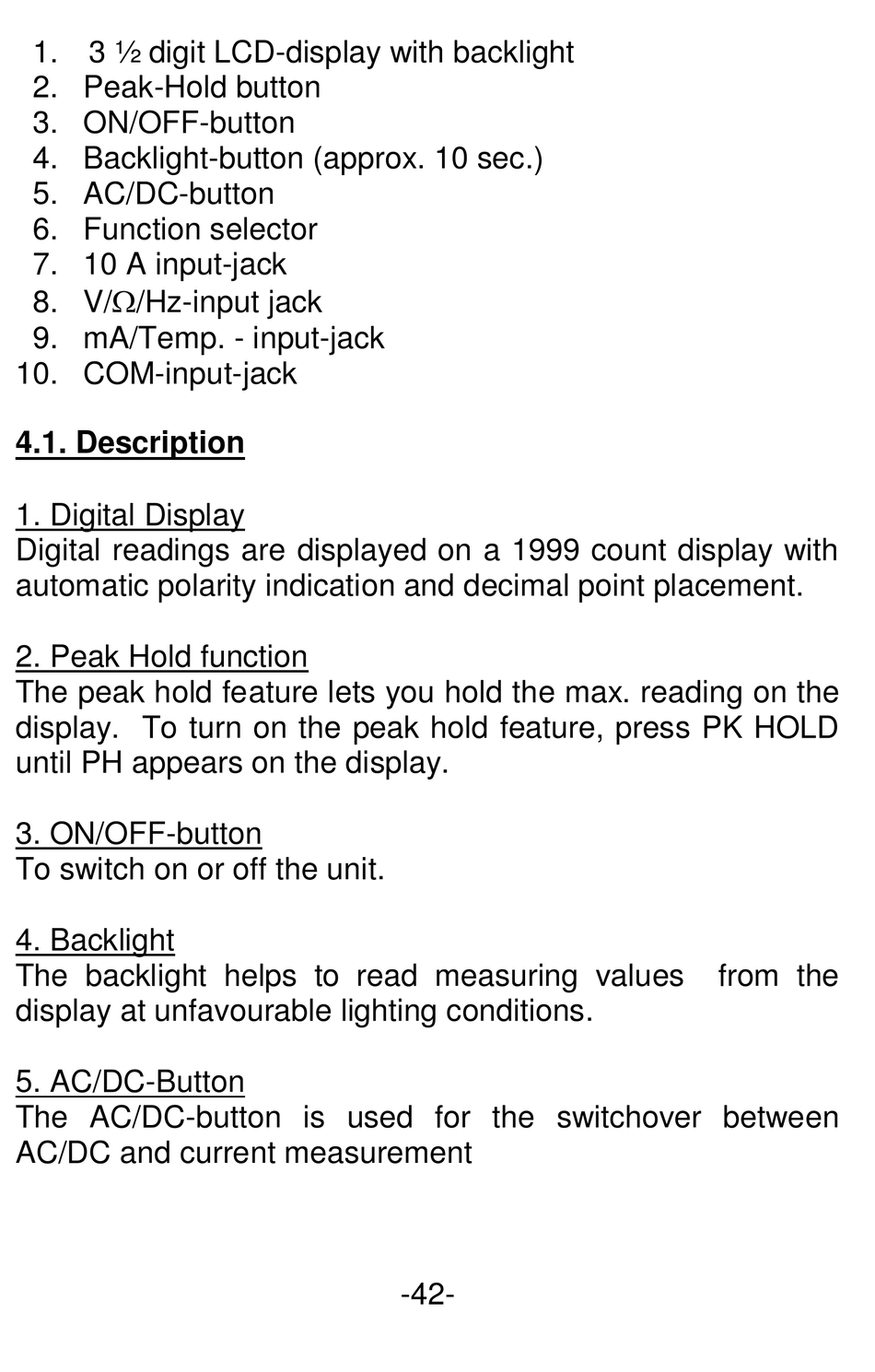

1. 3 ½ digit LCD-display with backlight
2. Peak-Hold button
3. ON/OFF-button
4. Backlight-button (approx. 10 sec.)
5. AC/DC-button
6. Function selector
7. 10 A input-jack
8. V//Hz-input jack
9. mA/Temp. - input-jack
10. COM-input-jack
4.1. Description
1. Digital Display
Digital readings are displayed on a 1999 count display with
automatic polarity indication and decimal point placement.
2. Peak Hold function
The peak hold feature lets you hold the max. reading on the
display. To turn on the peak hold feature, press PK HOLD
until PH appears on the display.
3. ON/OFF-button
To switch on or off the unit.
4. Backlight
The backlight helps to read measuring values
display at unfavourable lighting conditions.
5. AC/DC-Button
The AC/DC-button is used for the switchover between
AC/DC and current measurement
-42-
