Accessories

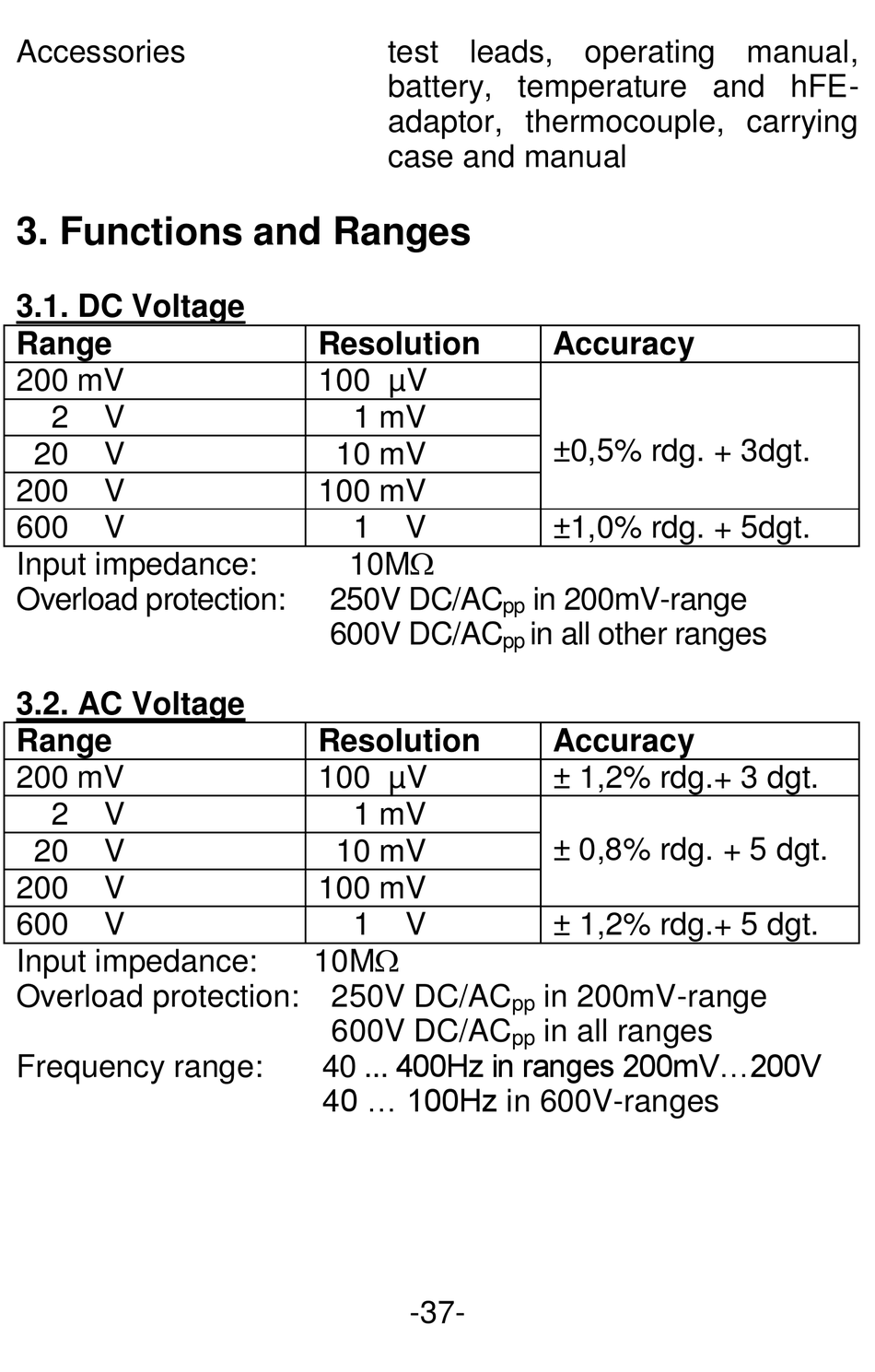

3. Functions and Ranges
3.1. DC Voltage
Range
200 mV
2 V
20 V
200 V
600 V
Input impedance:
Overload protection:
3.2. AC Voltage
Range
200 mV
2 V
20 V
200 V
600 V
Input impedance:
Overload protection: 250V DC/AC
Frequency range:
test leads, operating manual,
battery, temperature and hFE-
adaptor, thermocouple, carrying
case and manual
Resolution
100 µV
1 mV
10 mV
100 mV
1 V
10M
250V DC/AC
600V DC/AC
Resolution
100 µV
1 mV
10 mV
100 mV
1 V
10M
600V DC/AC
40 ... 400Hz in ranges 200mV...200V
40 ... 100Hz in 600V-ranges
-37-
Accuracy
±0,5% rdg. + 3dgt.
±1,0% rdg. + 5dgt.
in 200mV-range
pp
in all other ranges
pp
Accuracy
± 1,2% rdg.+ 3 dgt.
± 0,8% rdg. + 5 dgt.
± 1,2% rdg.+ 5 dgt.
in 200mV-range
pp
in all ranges
pp
