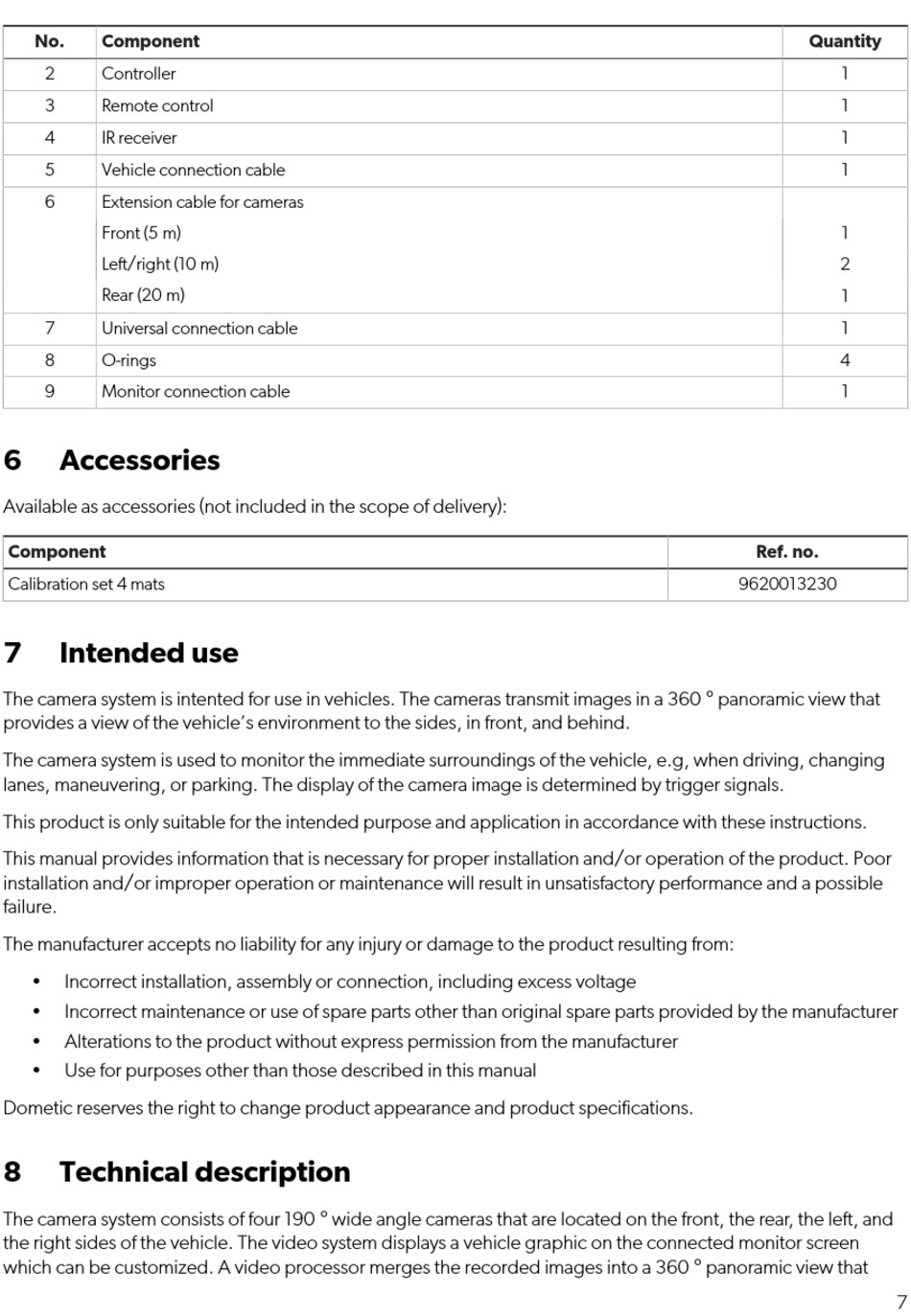

No. Component
2 Controller
3 Remote control
4 IR receiver
5 Vehicle connection cable
6 Extension cable for cameras
Front (5 m)
Le/right (10 m)
Rear (20 m)
7 Universal connection cable
8 O-rings
9 Monitor connection cable
6 Accessories
Available as accessories (not included in the scope of delivery):
Component
Calibration set 4 mats
7 Intended use
The camera system is intented for use in vehicles. The cameras transmit images in a 360 ° panoramic view that
provides a view of the vehicle's environment to the sides, in front, and behind.
The camera system is used to monitor the immediate surroundings of the vehicle, e.g, when driving, changing
lanes, maneuvering, or parking. The display of the camera image is determined by trigger signals.
This product is only suitable for the intended purpose and application in accordance with these instructions.
This manual provides information that is necessary for proper installation and/or operation of the product. Poor
installation and/or improper operation or maintenance will result in unsatisfactory performance and a possible
failure.
The manufacturer accepts no liability for any injury or damage to the product resulting from:
• Incorrect installation, assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product specifications.
8 Technical description
The camera system consists of four 190 ° wide angle cameras that are located on the front, the rear, the le, and
the right sides of the vehicle. The video system displays a vehicle graphic on the connected monitor screen
which can be customized. A video processor merges the recorded images into a 360 ° panoramic view that
Quantity
1
1
1
1
1
2
1
1
4
1
Ref. no.
9620013230
7
