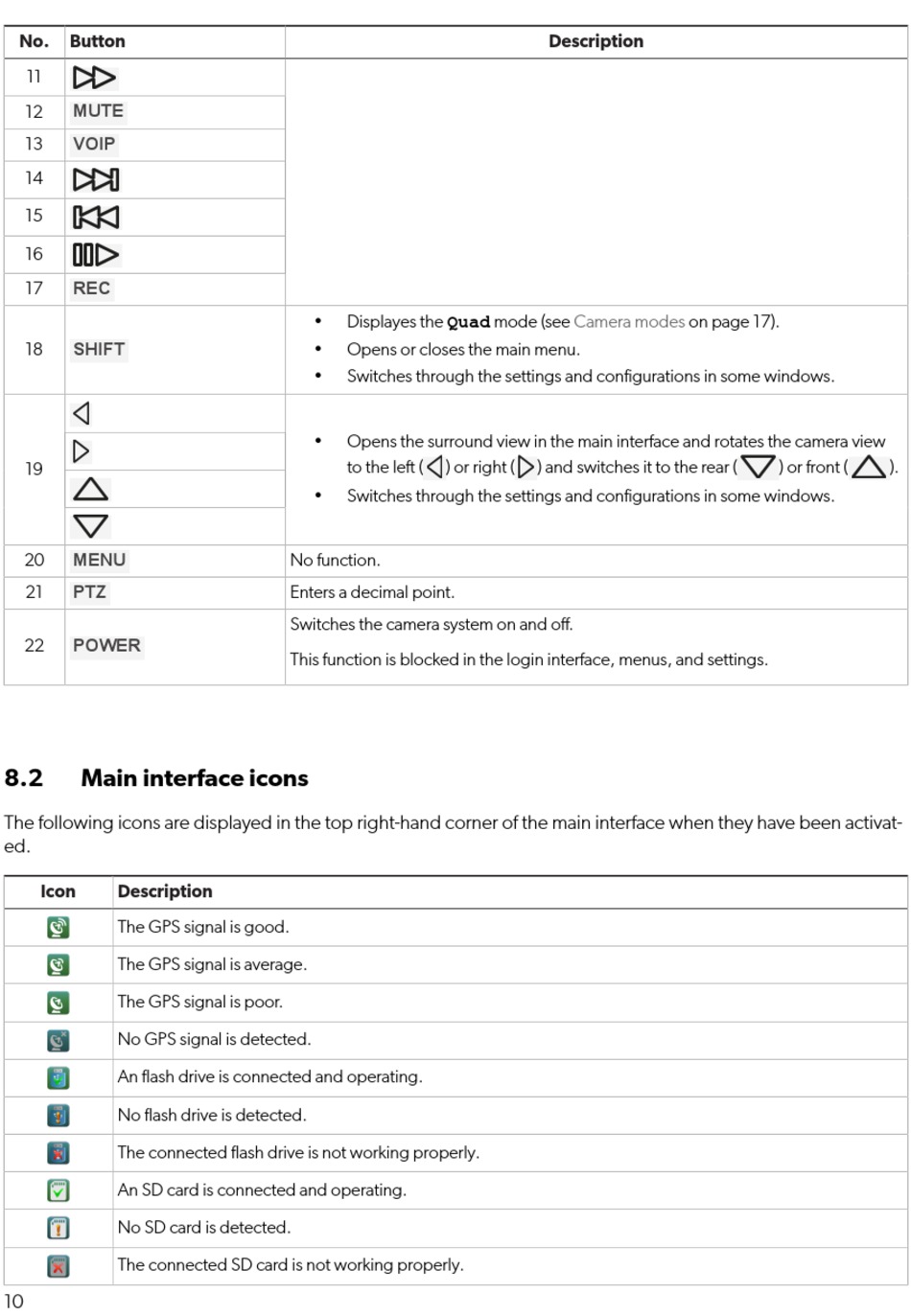

No. Button
11
MUTE
12
VOIP
13
14
15
16
REC
17
SHIFT
18
19
MENU
20
PTZ
21
POWER
22
8.2 Main interface icons
The following icons are displayed in the top right-hand corner of the main interface when they have been activat-
ed.
Icon Description
The GPS signal is good.
The GPS signal is average.
The GPS signal is poor.
No GPS signal is detected.
An flash drive is connected and operating.
No flash drive is detected.
The connected flash drive is not working properly.
An SD card is connected and operating.
No SD card is detected.
The connected SD card is not working properly.
10
• Displayes the Quad mode (see
• Opens or closes the main menu.
• Switches through the settings and configurations in some windows.
• Opens the surround view in the main interface and rotates the camera view
to the le ( ) or right (
• Switches through the settings and configurations in some windows.
No function.
Enters a decimal point.
Switches the camera system on and off.
This function is blocked in the login interface, menus, and settings.
Description
Camera modes on page 17).
) and switches it to the rear ( ) or front ( ).
