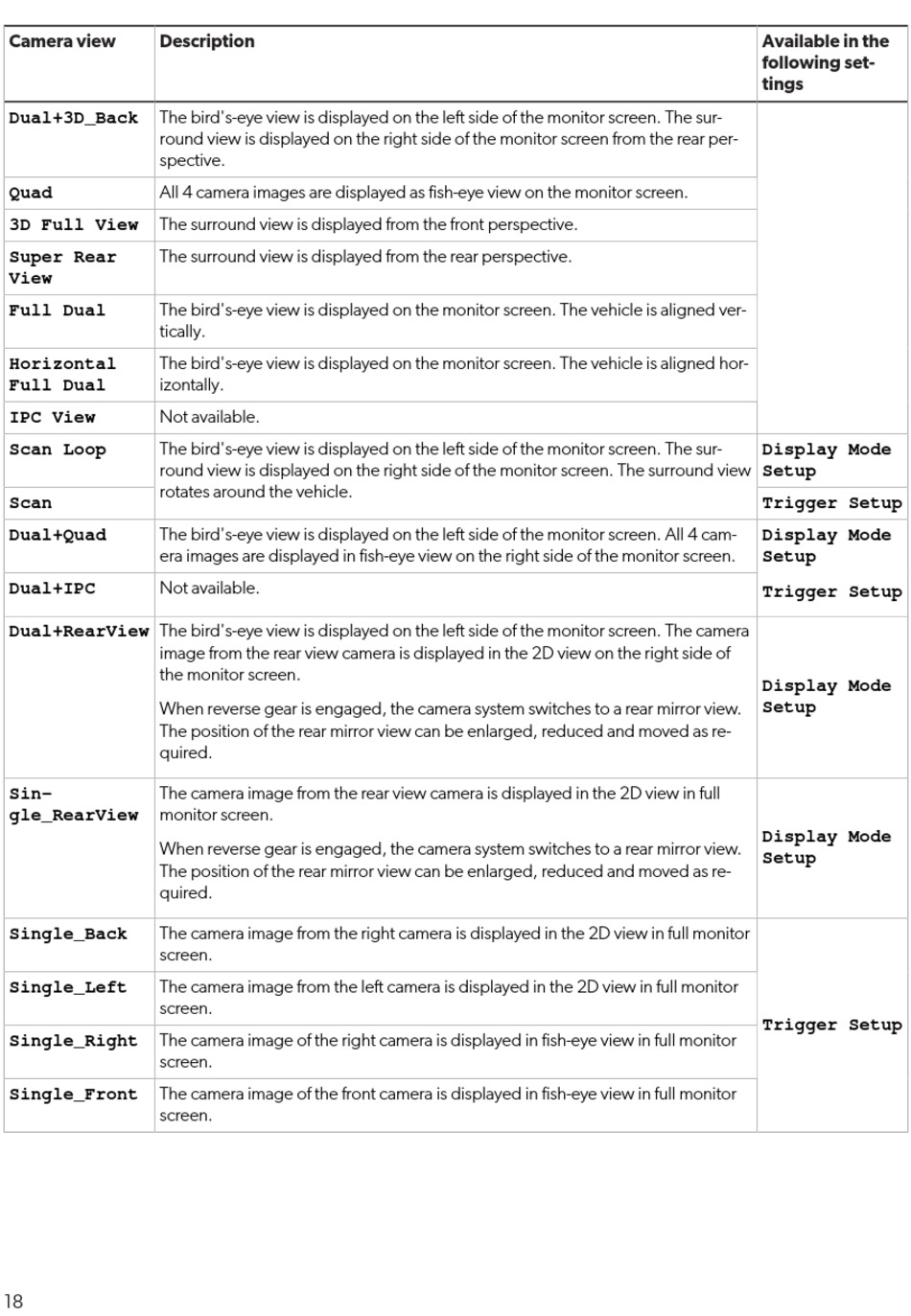

Camera view Description
The bird's-eye view is displayed on the le side of the monitor screen. The sur-
Dual+3D_Back
round view is displayed on the right side of the monitor screen from the rear per-
spective.
All 4 camera images are displayed as fish-eye view on the monitor screen.
Quad
The surround view is displayed from the front perspective.
3D Full View
The surround view is displayed from the rear perspective.
Super Rear
View
The bird's-eye view is displayed on the monitor screen. The vehicle is aligned ver-
Full Dual
tically.
The bird's-eye view is displayed on the monitor screen. The vehicle is aligned hor-
Horizontal
izontally.
Full Dual
Not available.
IPC View
The bird's-eye view is displayed on the le side of the monitor screen. The sur-
Scan Loop
round view is displayed on the right side of the monitor screen. The surround view
rotates around the vehicle.
Scan
The bird's-eye view is displayed on the le side of the monitor screen. All 4 cam-
Dual+Quad
era images are displayed in fish-eye view on the right side of the monitor screen.
Not available.
Dual+IPC
Dual+RearView The bird's-eye view is displayed on the le side of the monitor screen. The camera
image from the rear view camera is displayed in the 2D view on the right side of
the monitor screen.
When reverse gear is engaged, the camera system switches to a rear mirror view.
The position of the rear mirror view can be enlarged, reduced and moved as re-
quired.
The camera image from the rear view camera is displayed in the 2D view in full
Sin-
monitor screen.
gle_RearView
When reverse gear is engaged, the camera system switches to a rear mirror view.
The position of the rear mirror view can be enlarged, reduced and moved as re-
quired.
The camera image from the right camera is displayed in the 2D view in full monitor
Single_Back
screen.
The camera image from the le camera is displayed in the 2D view in full monitor
Single_Left
screen.
The camera image of the right camera is displayed in fish-eye view in full monitor
Single_Right
screen.
The camera image of the front camera is displayed in fish-eye view in full monitor
Single_Front
screen.
18
Available in the
following set-
tings
Display Mode
Setup
Trigger Setup
Display Mode
Setup
Trigger Setup
Display Mode
Setup
Display Mode
Setup
Trigger Setup
