Dometic POWER & CONTROL CAM360AHDHD Montage- Und Bedienungsanleitung Seite 23

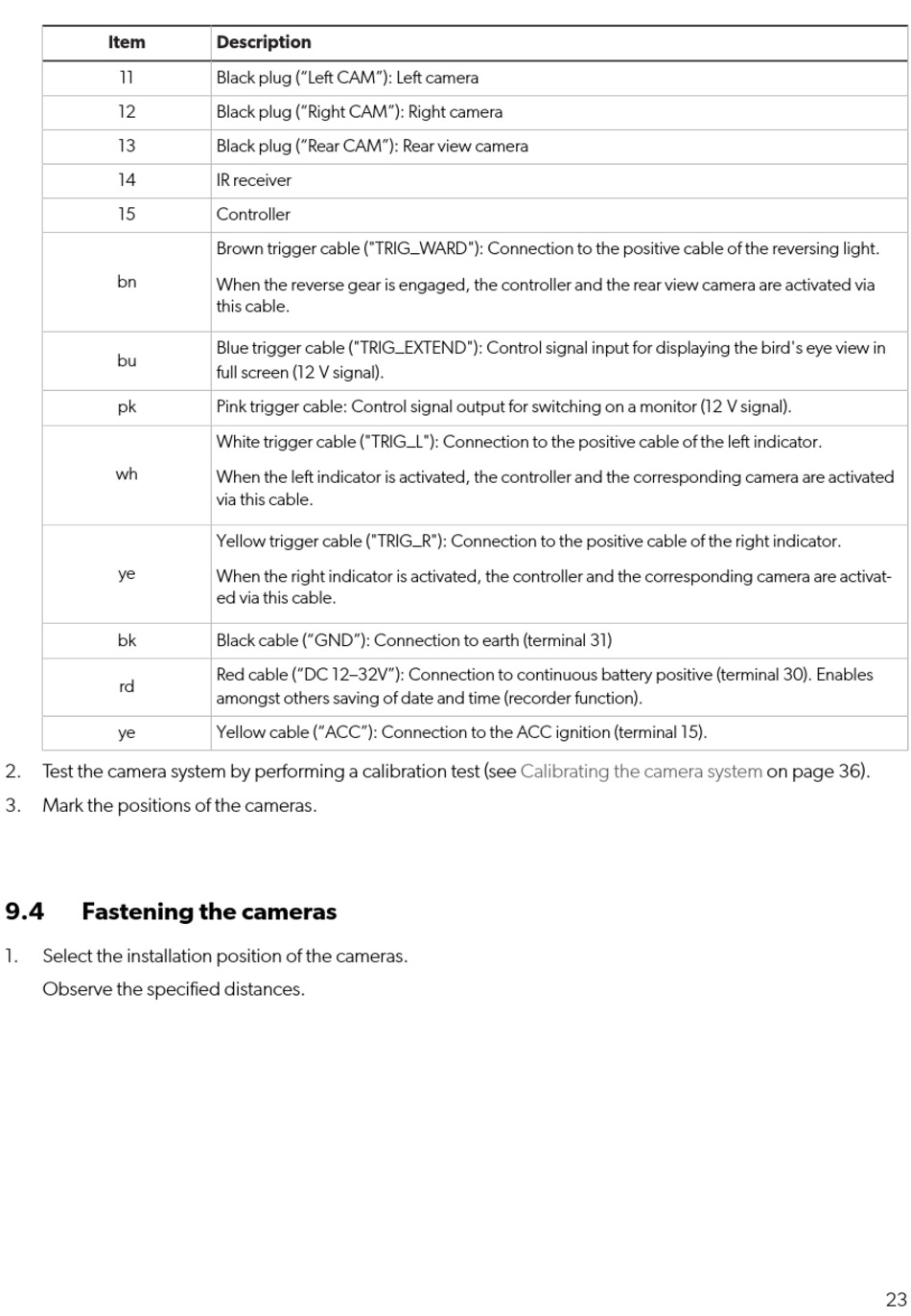

Item
11
12
13
14
15
bn
bu
pk
wh
ye
bk
rd
ye
2. Test the camera system by performing a calibration test (see
3. Mark the positions of the cameras.
9.4 Fastening the cameras
1. Select the installation position of the cameras.
Observe the specified distances.
Description
Black plug ("Le CAM"): Le camera
Black plug ("Right CAM"): Right camera
Black plug ("Rear CAM"): Rear view camera
IR receiver
Controller
Brown trigger cable ("TRIG_WARD"): Connection to the positive cable of the reversing light.
When the reverse gear is engaged, the controller and the rear view camera are activated via
this cable.
Blue trigger cable ("TRIG_EXTEND"): Control signal input for displaying the bird's eye view in
full screen (12 V signal).
Pink trigger cable: Control signal output for switching on a monitor (12 V signal).
White trigger cable ("TRIG_L"): Connection to the positive cable of the le indicator.
When the le indicator is activated, the controller and the corresponding camera are activated
via this cable.
Yellow trigger cable ("TRIG_R"): Connection to the positive cable of the right indicator.
When the right indicator is activated, the controller and the corresponding camera are activat-
ed via this cable.
Black cable ("GND"): Connection to earth (terminal 31)
Red cable ("DC 12–32V"): Connection to continuous battery positive (terminal 30). Enables
amongst others saving of date and time (recorder function).
Yellow cable ("ACC"): Connection to the ACC ignition (terminal 15).
Calibrating the camera system on page 36).
23
