Configuration

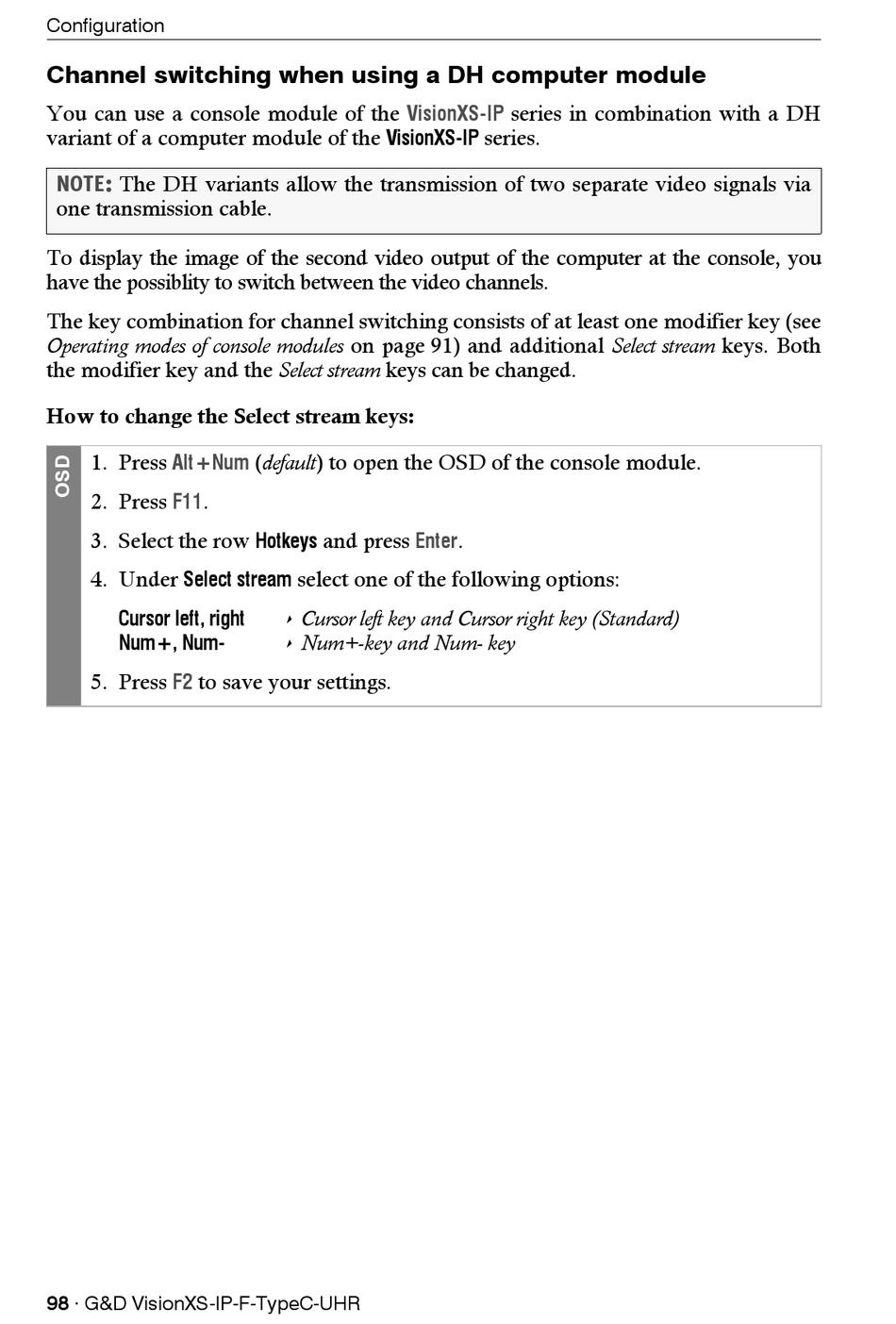

Channel switching when using a DH computer module
You can use a console module of the
variant of a computer module of the
NOTE:
The DH variants allow the transmission of two separate video signals via
one transmission cable.
To display the image of the second video output of the computer at the console, you
have the possiblity to switch between the video channels.
The key combination for channel switching consists of at least one modifier key (see
Operating modes of console modules on page 91) and additional Select stream keys. Both
the modifier key and the Select stream keys can be changed.
How to change the Select stream keys:
1. Press
Alt+Num
2. Press
.
F11
3. Select the row
4. Under
Select stream
Cursor left, right
Num+, Num-
5. Press
F2
to save your settings.
98 · G&D VisionXS-IP-F-TypeC-UHR
VisionXS-IP
VisionXS-IP
(default) to open the OSD of the console module.
Hotkeys
and press
Enter
select one of the following options:
Cursor left key and Cursor right key (Standard)
Num+-key and Num- key
series in combination with a DH
series.
.
