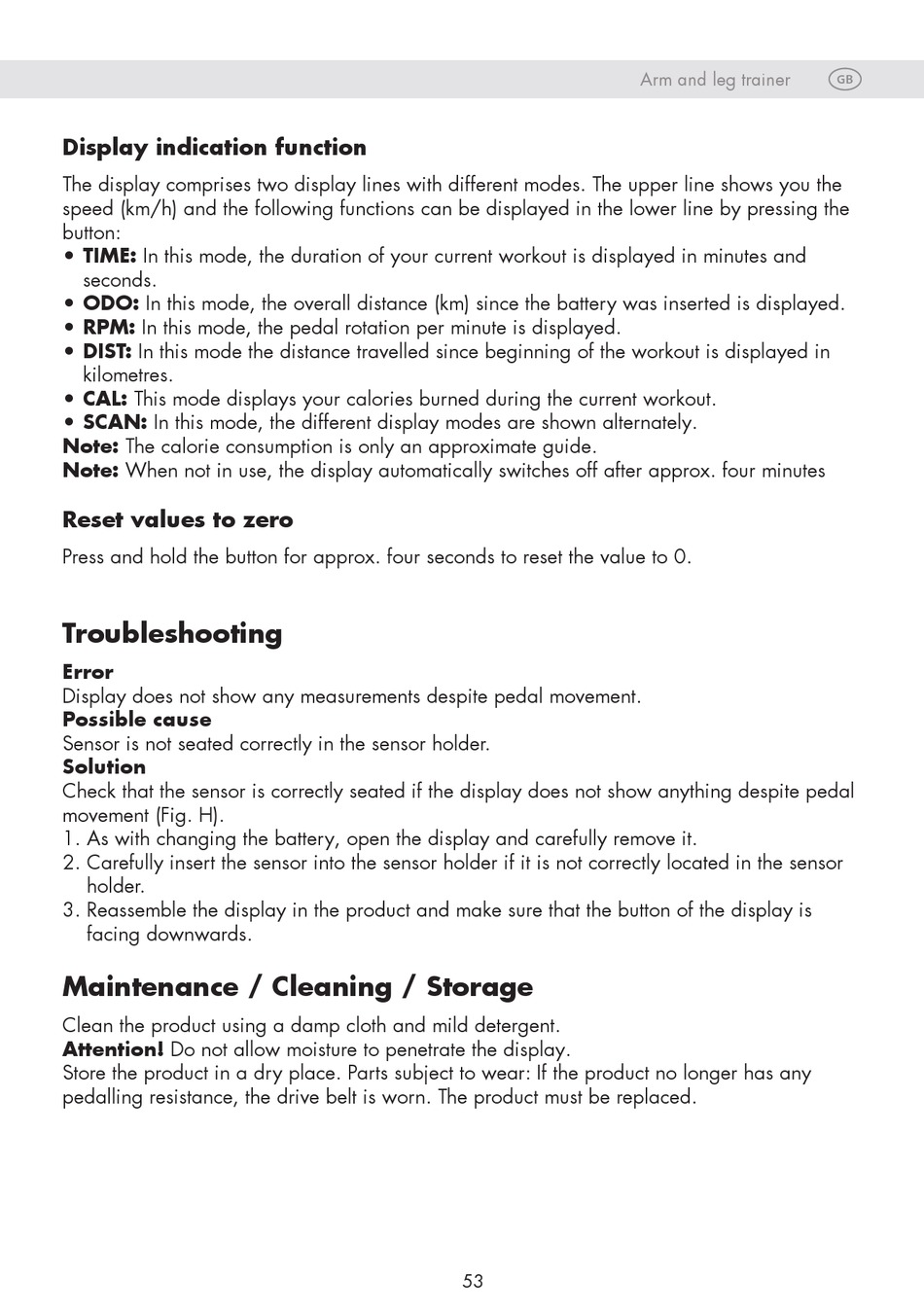

Crivit SP-MB-020 Gebrauchsanleitung Seite 51

Display indication function
The display comprises two display lines with different modes. The upper line shows you the
speed (km/h) and the following functions can be displayed in the lower line by pressing the
button:
• TIME: In this mode, the duration of your current workout is displayed in minutes and
seconds.
• ODO: In this mode, the overall distance (km) since the battery was inserted is displayed.
• RPM: In this mode, the pedal rotation per minute is displayed.
• DIST: In this mode the distance travelled since beginning of the workout is displayed in
kilometres.
• CAL: This mode displays your calories burned during the current workout.
• SCAN: In this mode, the different display modes are shown alternately.
Note: The calorie consumption is only an approximate guide.
Note: When not in use, the display automatically switches off after approx. four minutes
Reset values to zero
Press and hold the button for approx. four seconds to reset the value to 0.
Troubleshooting
Error
Display does not show any measurements despite pedal movement.
Possible cause
Sensor is not seated correctly in the sensor holder.
Solution
Check that the sensor is correctly seated if the display does not show anything despite pedal
movement (Fig. H).
1. As with changing the battery, open the display and carefully remove it.
2. Carefully insert the sensor into the sensor holder if it is not correctly located in the sensor
holder.
3. Reassemble the display in the product and make sure that the button of the display is
facing downwards.
Maintenance / Cleaning / Storage
Clean the product using a damp cloth and mild detergent.
Attention! Do not allow moisture to penetrate the display.
Store the product in a dry place. Parts subject to wear: If the product no longer has any
pedalling resistance, the drive belt is worn. The product must be replaced.
