7.

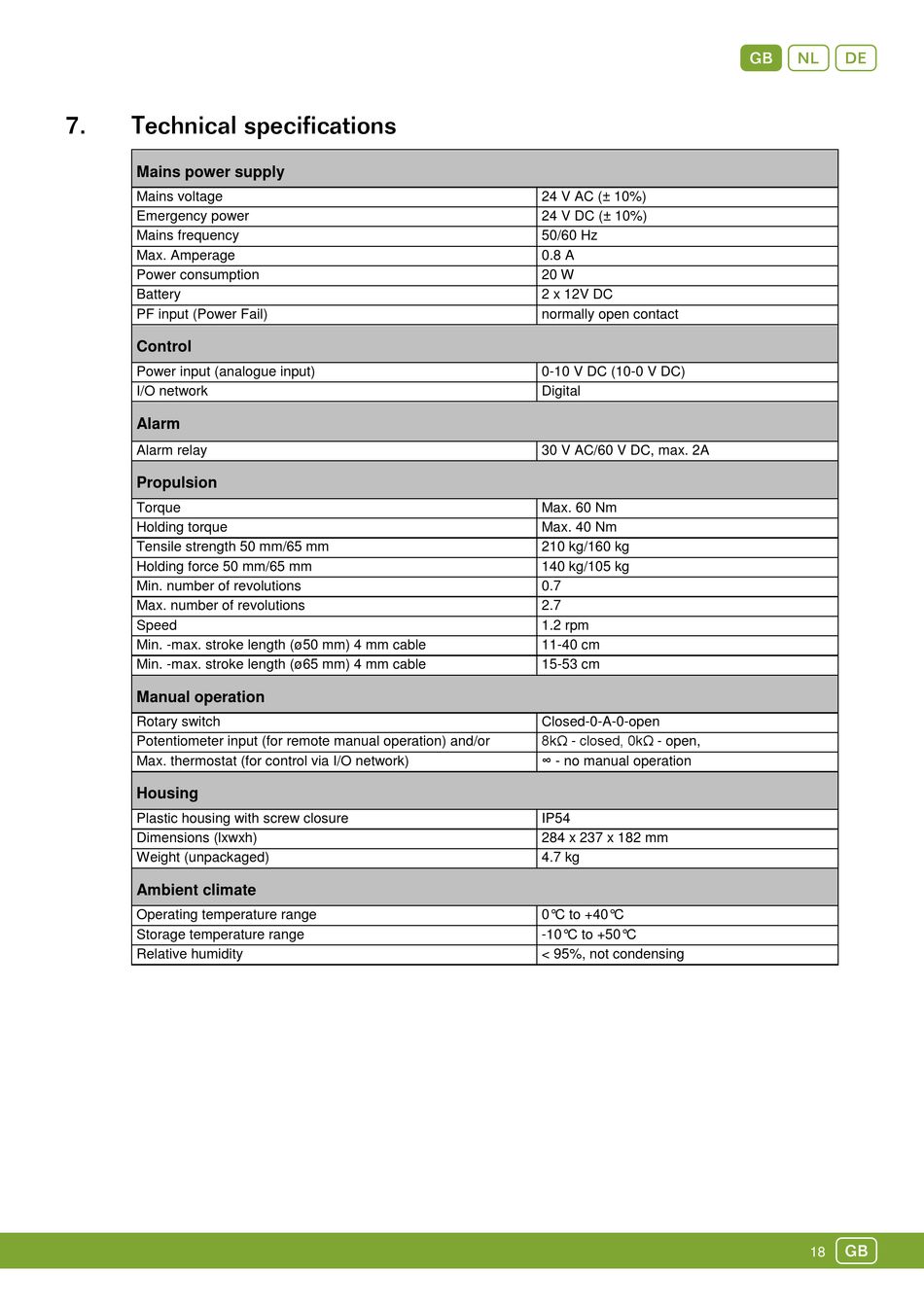

Technical specifications
Mains power supply
Mains voltage
Emergency power
Mains frequency
Max. Amperage
Power consumption
Battery
PF input (Power Fail)
Control
Power input (analogue input)
I/O network
Alarm
Alarm relay
Propulsion
Torque
Holding torque
Tensile strength 50 mm/65 mm
Holding force 50 mm/65 mm
Min. number of revolutions
Max. number of revolutions
Speed
Min. -max. stroke length (ø50 mm) 4 mm cable
Min. -max. stroke length (ø65 mm) 4 mm cable
Manual operation
Rotary switch
Potentiometer input (for remote manual operation) and/or
Max. thermostat (for control via I/O network)
Housing
Plastic housing with screw closure
Dimensions (lxwxh)
Weight (unpackaged)
Ambient climate
Operating temperature range
Storage temperature range
Relative humidity
24 V AC (± 10%)
24 V DC (± 10%)
50/60 Hz
0.8 A
20 W
2 x 12V DC
normally open contact
0-10 V DC (10-0 V DC)
Digital
30 V AC/60 V DC, max. 2A
Max. 60 Nm
Max. 40 Nm
210 kg/160 kg
140 kg/105 kg
0.7
2.7
1.2 rpm
11-40 cm
15-53 cm
Closed-0-A-0-open
8kΩ - closed, 0kΩ - open,
∞ - no manual operation
IP54
284 x 237 x 182 mm
4.7 kg
0°C to +40°C
-10°C to +50°C
< 95%, not condensing
Gnd
g
18
