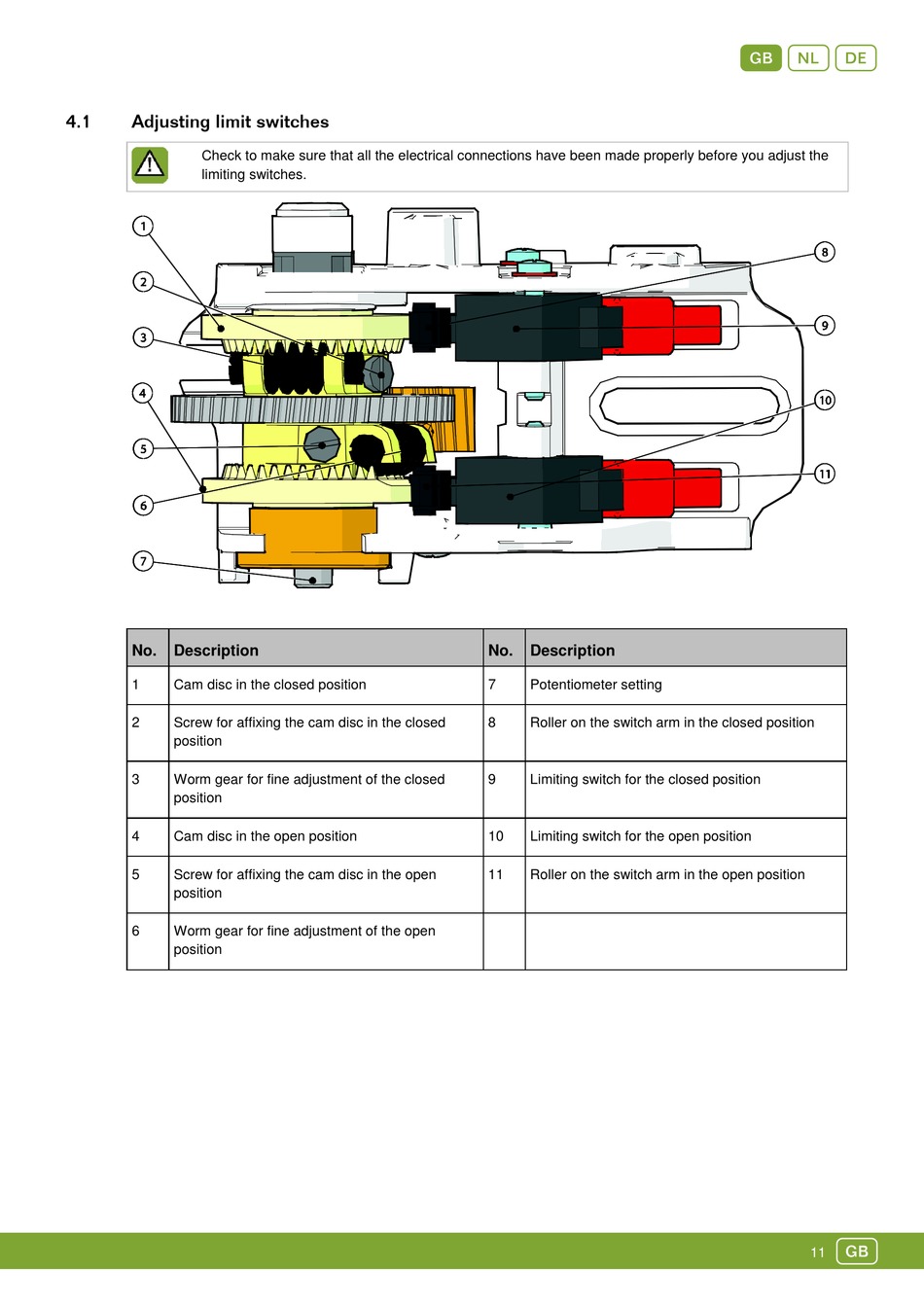

4.1 Adjusting limit switches
Check to make sure that all the electrical connections have been made properly before you adjust the
limiting switches.
No. Description
1 Cam disc in the closed position
2 Screw for affixing the cam disc in the closed
position
3 Worm gear for fine adjustment of the closed
position
4 Cam disc in the open position
5 Screw for affixing the cam disc in the open
position
6 Worm gear for fine adjustment of the open
position
No. Description
7 Potentiometer setting
8 Roller on the switch arm in the closed position
9 Limiting switch for the closed position
10 Limiting switch for the open position
11 Roller on the switch arm in the open position
