3.

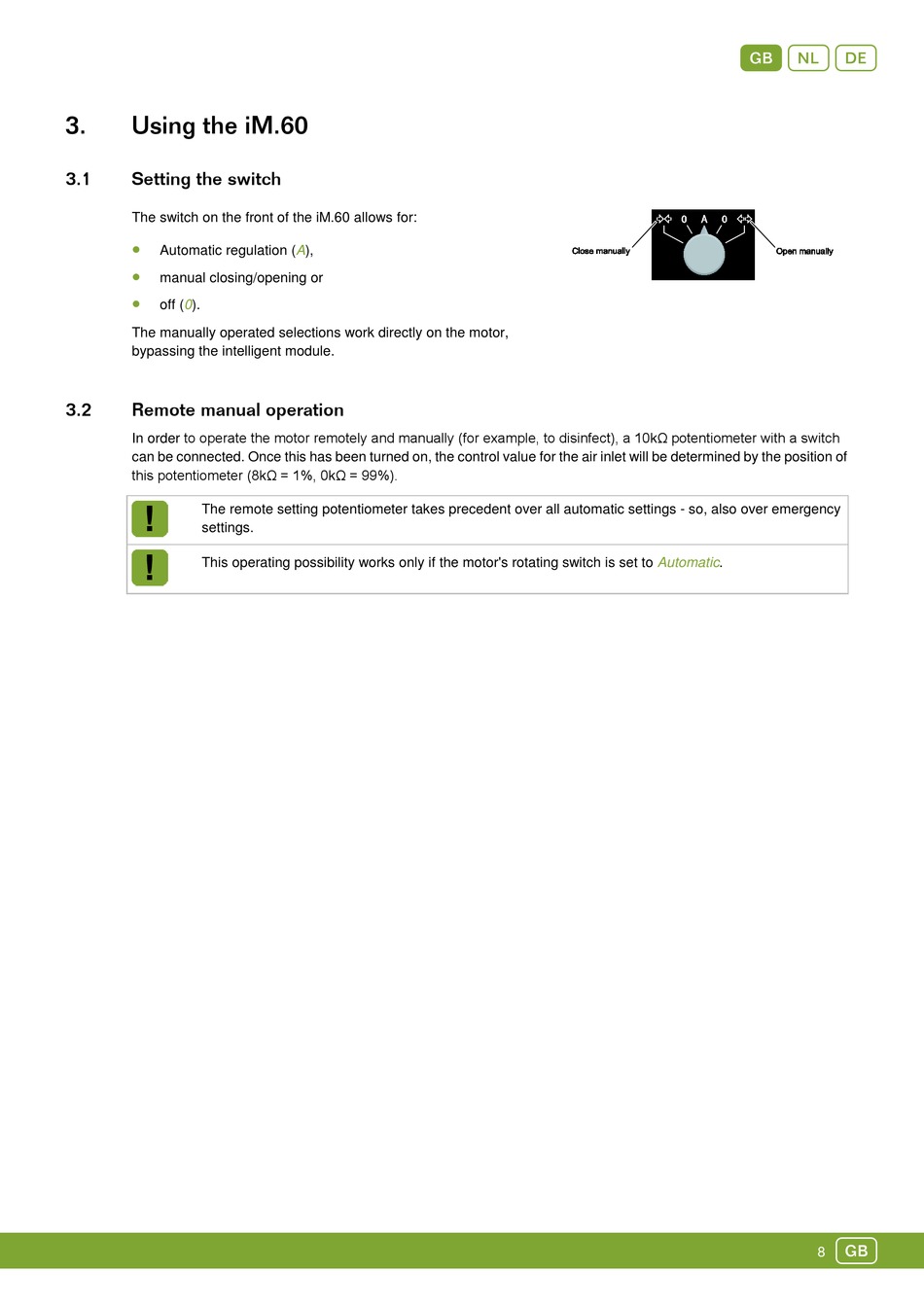

Using the iM.60

3.1

Setting the switch

The switch on the front of the iM.60 allows for:
•
Automatic regulation (A),
•
manual closing/opening or
•
off (0).
The manually operated selections work directly on the motor,
bypassing the intelligent module.
3.2

Remote manual operation

In order to operate the motor remotely and manually (for example, to disinfect), a 10kΩ potentiometer with a switch
can be connected. Once this has been turned on, the control value for the air inlet will be determined by the position of
this potentiometer (8kΩ = 1%, 0kΩ = 99%).
The remote setting potentiometer takes precedent over all automatic settings - so, also over emergency
settings.
This operating possibility works only if the motor's rotating switch is set to Automatic.
Gnd
g
8
