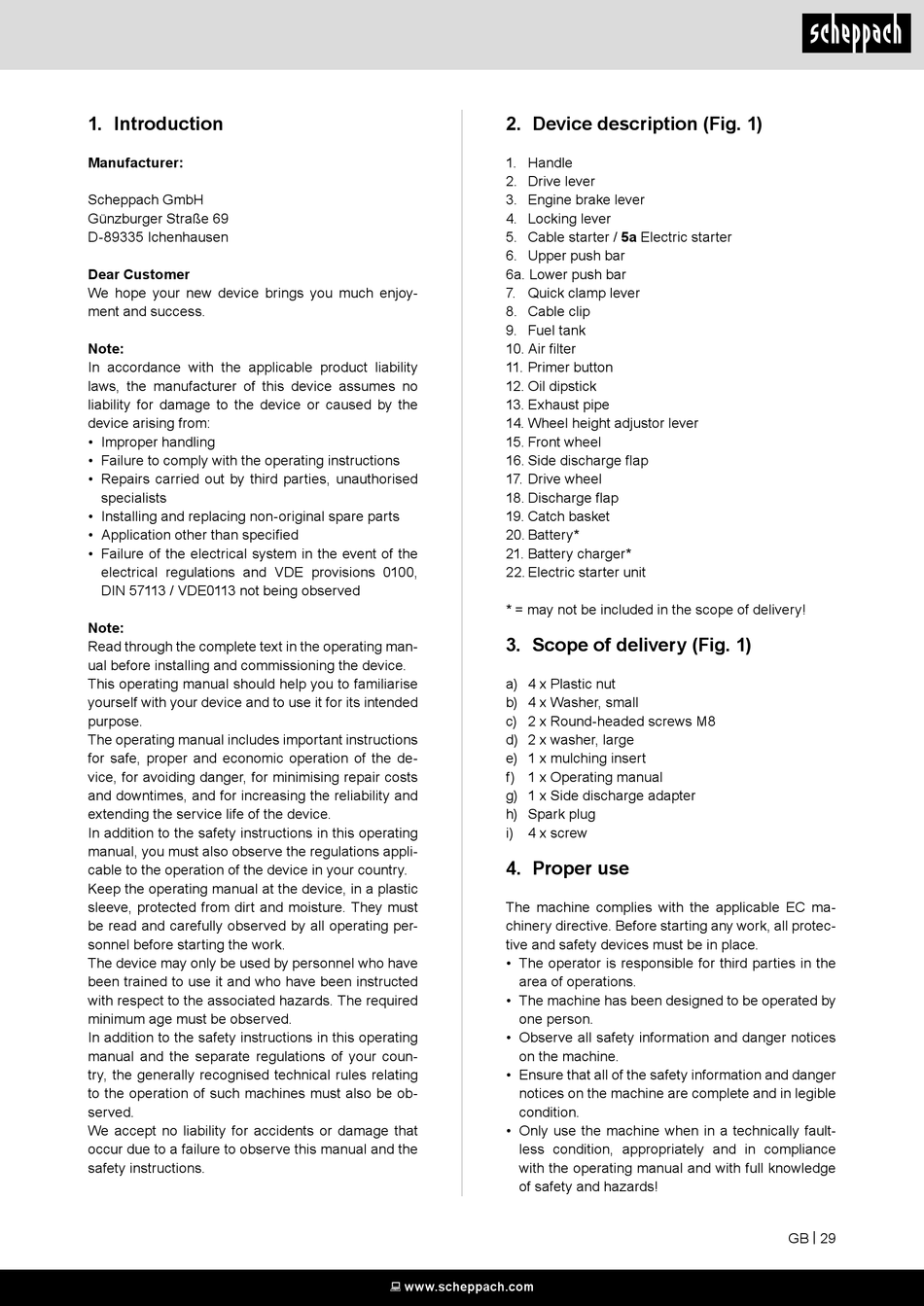

1. Introduction
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer
We hope your new device brings you much enjoy-
ment and success.
Note:
In accordance with the applicable product liability
laws, the manufacturer of this device assumes no
liability for damage to the device or caused by the
device arising from:
• Improper handling
• Failure to comply with the operating instructions
• Repairs carried out by third parties, unauthorised
specialists
• Installing and replacing non-original spare parts
• Application other than specified
• Failure of the electrical system in the event of the
electrical regulations and VDE provisions 0100,
DIN 57113 / VDE0113 not being observed
Note:
Read through the complete text in the operating man-
ual before installing and commissioning the device.
This operating manual should help you to familiarise
yourself with your device and to use it for its intended
purpose.
The operating manual includes important instructions
for safe, proper and economic operation of the de-
vice, for avoiding danger, for minimising repair costs
and downtimes, and for increasing the reliability and
extending the service life of the device.
In addition to the safety instructions in this operating
manual, you must also observe the regulations appli-
cable to the operation of the device in your country.
Keep the operating manual at the device, in a plastic
sleeve, protected from dirt and moisture. They must
be read and carefully observed by all operating per-
sonnel before starting the work.
The device may only be used by personnel who have
been trained to use it and who have been instructed
with respect to the associated hazards. The required
minimum age must be observed.
In addition to the safety instructions in this operating
manual and the separate regulations of your coun-
try, the generally recognised technical rules relating
to the operation of such machines must also be ob-
served.
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.
2. Device description (Fig. 1)
1. Handle
2. Drive lever
3. Engine brake lever
4. Locking lever
5. Cable starter / 5a Electric starter
6. Upper push bar
6a. Lower push bar
7. Quick clamp lever
8. Cable clip
9. Fuel tank
10. Air filter
11. Primer button
12. Oil dipstick
13. Exhaust pipe
14. Wheel height adjustor lever
15. Front wheel
16. Side discharge flap
17. Drive wheel
18. Discharge flap
19. Catch basket
20. Battery*
21. Battery charger*
22. Electric starter unit
* = may not be included in the scope of delivery!
3. Scope of delivery (Fig. 1)
a) 4 x Plastic nut
b) 4 x Washer, small
c) 2 x Round-headed screws M8
d) 2 x washer, large
e) 1 x mulching insert
f) 1 x Operating manual
g) 1 x Side discharge adapter
h) Spark plug
i) 4 x screw
4. Proper use
The machine complies with the applicable EC ma-
chinery directive. Before starting any work, all protec-
tive and safety devices must be in place.
• The operator is responsible for third parties in the
area of operations.
• The machine has been designed to be operated by
one person.
• Observe all safety information and danger notices
on the machine.
• Ensure that all of the safety information and danger
notices on the machine are complete and in legible
condition.
• Only use the machine when in a technically fault-
less condition, appropriately and in compliance
with the operating manual and with full knowledge
of safety and hazards!
www.scheppach.com
GB | 29
