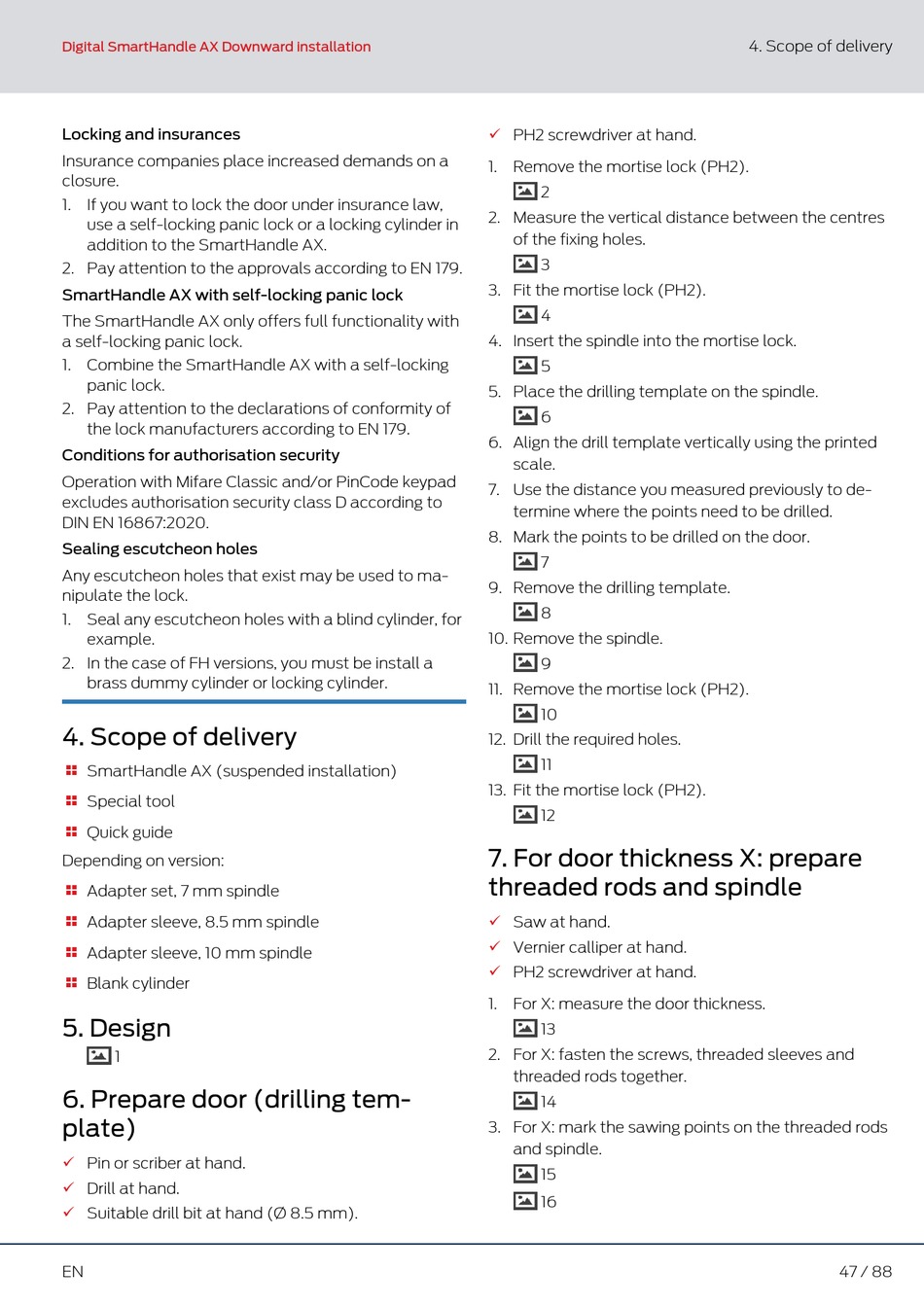

Digital SmartHandle AX Downward installation
Locking and insurances
Insurance companies place increased demands on a
closure.
1. If you want to lock the door under insurance law,
use a self-locking panic lock or a locking cylinder in
addition to the SmartHandle AX.
2. Pay attention to the approvals according to EN 179.
SmartHandle AX with self-locking panic lock
The SmartHandle AX only offers full functionality with
a self-locking panic lock.
1. Combine the SmartHandle AX with a self-locking
panic lock.
2. Pay attention to the declarations of conformity of
the lock manufacturers according to EN 179.
Conditions for authorisation security
Operation with Mifare Classic and/or PinCode keypad
excludes authorisation security class D according to
DIN EN 16867:2020.
Sealing escutcheon holes
Any escutcheon holes that exist may be used to ma-
nipulate the lock.
1. Seal any escutcheon holes with a blind cylinder, for
example.
2. In the case of FH versions, you must be install a
brass dummy cylinder or locking cylinder.
4. Scope of delivery
SmartHandle AX (suspended installation)
Special tool
Quick guide
Depending on version:
Adapter set, 7 mm spindle
Adapter sleeve, 8.5 mm spindle
Adapter sleeve, 10 mm spindle
Blank cylinder
5. Design
1
6. Prepare door (drilling tem-
plate)
Pin or scriber at hand.
ü
Drill at hand.
ü
ü
Suitable drill bit at hand (Ø 8.5 mm).
EN
ü
PH2 screwdriver at hand.
1. Remove the mortise lock (PH2).
2
2. Measure the vertical distance between the centres
of the fixing holes.
3
3. Fit the mortise lock (PH2).
4
4. Insert the spindle into the mortise lock.
5
5. Place the drilling template on the spindle.
6
6. Align the drill template vertically using the printed
scale.
7. Use the distance you measured previously to de-
termine where the points need to be drilled.
8. Mark the points to be drilled on the door.
7
9. Remove the drilling template.
8
10. Remove the spindle.
9
11. Remove the mortise lock (PH2).
10
12. Drill the required holes.
11
13. Fit the mortise lock (PH2).
12
7. For door thickness X: prepare
threaded rods and spindle
ü
Saw at hand.
ü
Vernier calliper at hand.
ü
PH2 screwdriver at hand.
1. For X: measure the door thickness.
13
2. For X: fasten the screws, threaded sleeves and
threaded rods together.
14
3. For X: mark the sawing points on the threaded rods
and spindle.
15
16
4. Scope of delivery
47 / 88
