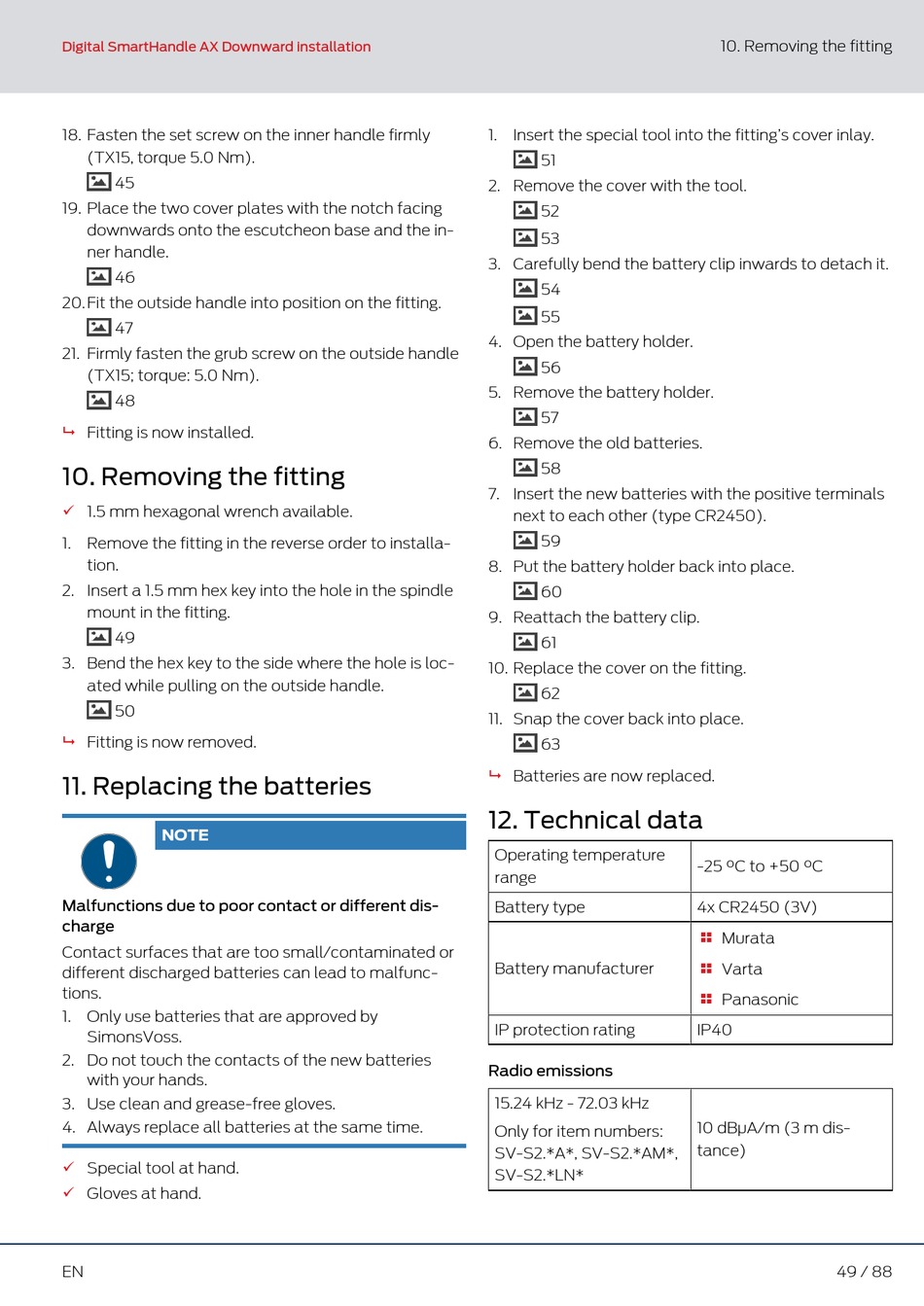

Digital SmartHandle AX Downward installation
18. Fasten the set screw on the inner handle firmly
(TX15, torque 5.0 Nm).
45
19. Place the two cover plates with the notch facing
downwards onto the escutcheon base and the in-
ner handle.
46
20. Fit the outside handle into position on the fitting.
47
21. Firmly fasten the grub screw on the outside handle
(TX15; torque: 5.0 Nm).
48
9 Fitting is now installed.
10. Removing the fitting
1.5 mm hexagonal wrench available.
ü
1. Remove the fitting in the reverse order to installa-
tion.
2. Insert a 1.5 mm hex key into the hole in the spindle
mount in the fitting.
49
3. Bend the hex key to the side where the hole is loc-
ated while pulling on the outside handle.
50
Fitting is now removed.
9
11. Replacing the batteries
NOTE
Malfunctions due to poor contact or different dis-
charge
Contact surfaces that are too small/contaminated or
different discharged batteries can lead to malfunc-
tions.
1. Only use batteries that are approved by
SimonsVoss.
2. Do not touch the contacts of the new batteries
with your hands.
3. Use clean and grease-free gloves.
4. Always replace all batteries at the same time.
Special tool at hand.
ü
Gloves at hand.
ü
EN
1. Insert the special tool into the fitting's cover inlay.
51
2. Remove the cover with the tool.
52
53
3. Carefully bend the battery clip inwards to detach it.
54
55
4. Open the battery holder.
56
5. Remove the battery holder.
57
6. Remove the old batteries.
58
7. Insert the new batteries with the positive terminals
next to each other (type CR2450).
59
8. Put the battery holder back into place.
60
9. Reattach the battery clip.
61
10. Replace the cover on the fitting.
62
11. Snap the cover back into place.
63
9 Batteries are now replaced.
12. Technical data
Operating temperature
range
Battery type
Battery manufacturer
IP protection rating
Radio emissions
15.24 kHz - 72.03 kHz
Only for item numbers:
SV-S2.*A*, SV-S2.*AM*,
SV-S2.*LN*
10. Removing the fitting
-25 °C to +50 °C
4x CR2450 (3V)
Murata

Varta

Panasonic

IP40
10 dBµA/m (3 m dis-
tance)
