RTM ABIx MT EasyTeach

5 Attaching the multifunctional flange

Risk of injury due to unexpected start
If power is supplied to the robot during maintenance or disassembly, parts can start running unexpectedly
and cause injuries.
► Observe the documentation for the system components.
► Disconnect the electrical power supply.

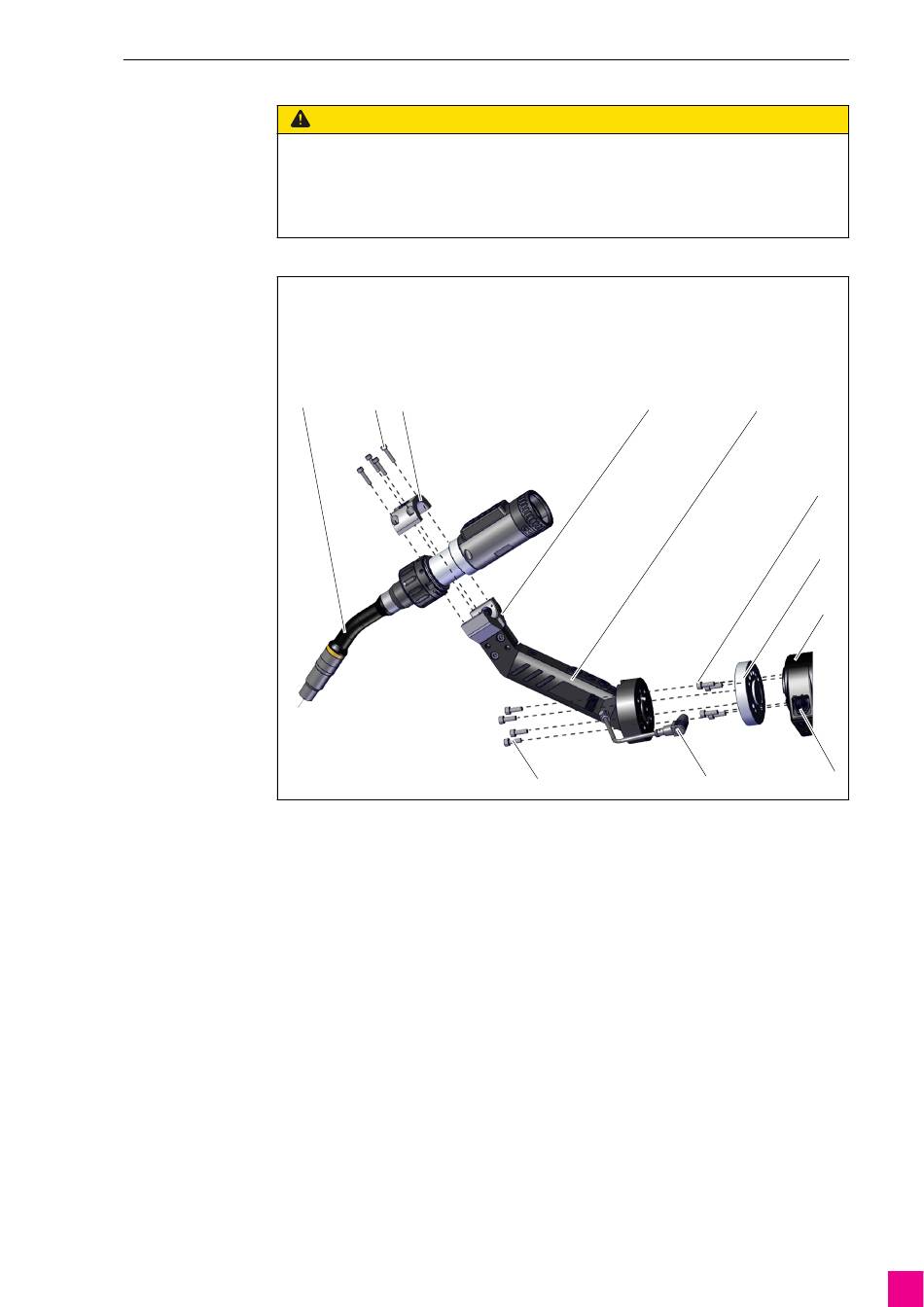

Fig. 2
A Welding torch
B 4× M5 × 20 cylinder head screws
C Clamp
D Torch mount
E RTM ABIx MT EasyTeach multifunctional flange
F 4× M6 × 16 cylinder head screws
A
Use the M6 × 16 cylinder head screws (4×) (F) to attach the intermediate flange (G) to the robot (H).
1
Use the M6 × 25 cylinder head screws (4×) (K) to attach the RTM ABIx MT EasyTeach multifunctional
2
flange (E) to the intermediate flange (G) with a maximum tightening torque of 4 Nm.
Connect the connection cable (J) to the connector on the robot (I).
3
Insert the welding torch (A) into the torch mount (D) and secure in place.
4
Use the M5 × 20 cylinder head screws (4×) (B) to attach the clamp (C) with a maximum tightening
5
torque of 4 Nm.
CAUTION
Attaching the multifunctional flange
B C
5 Attaching the multifunctional flange
G Intermediate flange
H Robot
I Connector for robot connection cable
J Connection cable
K 4× M6 × 25 cylinder head screws
D
K J
E
F
G
H
I
EN - 7
