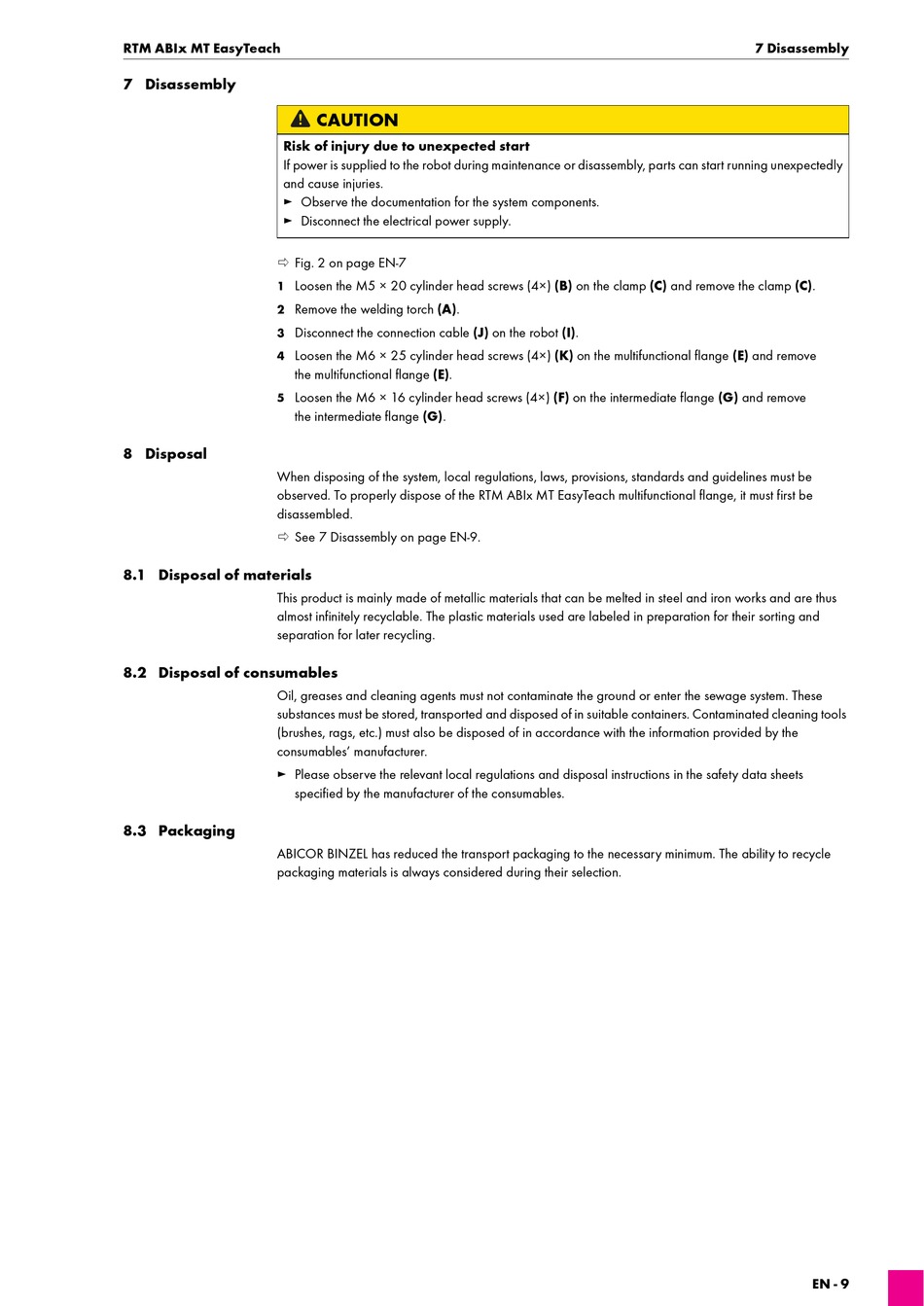

7 Disassembly

Risk of injury due to unexpected start
If power is supplied to the robot during maintenance or disassembly, parts can start running unexpectedly
and cause injuries.
► Observe the documentation for the system components.
► Disconnect the electrical power supply.
 Fig. 2 on page EN-7
Loosen the M5 × 20 cylinder head screws (4×) (B) on the clamp (C) and remove the clamp (C).
1
Remove the welding torch (A).
2
Disconnect the connection cable (J) on the robot (I).
3
Loosen the M6 × 25 cylinder head screws (4×) (K) on the multifunctional flange (E) and remove
4
the multifunctional flange (E).
Loosen the M6 × 16 cylinder head screws (4×) (F) on the intermediate flange (G) and remove
5
the intermediate flange (G).

8 Disposal

When disposing of the system, local regulations, laws, provisions, standards and guidelines must be
observed. To properly dispose of the RTM ABIx MT EasyTeach multifunctional flange, it must first be
disassembled.
 See 7 Disassembly on page EN-9.

8.1 Disposal of materials

This product is mainly made of metallic materials that can be melted in steel and iron works and are thus
almost infinitely recyclable. The plastic materials used are labeled in preparation for their sorting and
separation for later recycling.

8.2 Disposal of consumables

Oil, greases and cleaning agents must not contaminate the ground or enter the sewage system. These
substances must be stored, transported and disposed of in suitable containers. Contaminated cleaning tools
(brushes, rags, etc.) must also be disposed of in accordance with the information provided by the
consumables' manufacturer.
► Please observe the relevant local regulations and disposal instructions in the safety data sheets
specified by the manufacturer of the consumables.

8.3 Packaging

ABICOR BINZEL has reduced the transport packaging to the necessary minimum. The ability to recycle
packaging materials is always considered during their selection.
CAUTION
