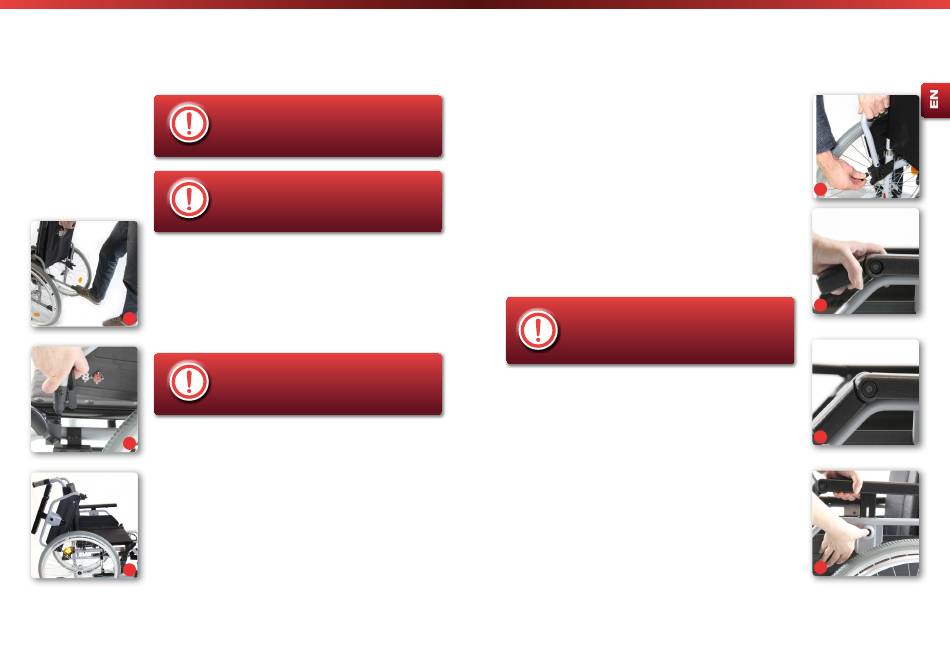

5.5. Amputation leg support
(optional)
Assembly, disassembly and swivelling down are carried out as with
the standard legrests, adjustment as with the horizontally adjustable
11.
legrest.
5.6. Tipping aid
12.
• The tipping aid makes it easier for the attendant to tilt your
wheelchair, e.g. to drive over a step.
• To do this, press the tipping aid down with the foot (Fig. 11).
• You keep your balance by using the push handles.
• The tipping aid protrudes to the right and left of the frame and is
fitted with rubber profiles to ensure sufficient grip.
• Optionally, anti-tip wheels with integrated tipping aid can be fitted
13.
instead of the rubber profiles.
67 67
Never climb onto the foot plate and watch your
fingers when swivelling, there is a danger of getting
caught.
The legrest must be swivelled away or removed in
order to sit down. Never sit on the legrest.
Danger of tipping over!
The legrest must be swivelled away or removed in
order to sit down. Never sit on the legrest.
Danger of tipping over!
Leichtgewichtrollstuhl | Light weight wheelchair |
5.7. Side parts
• To make it easier to get in/out of the chair, the two side sections with
the armrests can be swivelled upwards.
• Operate the locking lever with light finger pressure and at the same
time swivel the side part upwards (Fig.12 / 13).
• To lock the side part, fold it forwards and let it engage with a slight
pressure on the armrest.
• The side panels can be removed completely.
• Fold up the side parts as described. Then pull out the knob at the
back of the fastening (Fig. 14) and at the same time pull the side
part on the armrest upwards away.
When swivelling the side parts, make sure that no
items of clothing or other utensils can be trapped.
Check that the side panels are firmly in place before
putting them into operation!
5.8. Armrests
If necessary, the armrests can be angled in the area of the wrists so
that your hands rest comfortably or the armrest is shorter.
• Press the push button on the outside, the front part of the support
moves inwards towards the seat surface (Fig 15).
• Now you can fold the front part down until it snaps back into place
and can no longer be moved (Fig 16). You can also push the entire
front part inwards and fold it down.
You can adjust the height of the armrests:
• Press the button and at the same time pull the armrest up to the
desired position (Fig 17).
• Release the button at the desired height.
• Check that the armrest is locked in place so that it cannot be moved.
