Fronius Robacta Drive Einbauanleitung Seite 9

Conversion kit for Robacta Drive with intermediate
drive
General
Robacta Drive The 4,100,210,U kit is made up of the following components:
Single
conversion kit
(9)
(11)

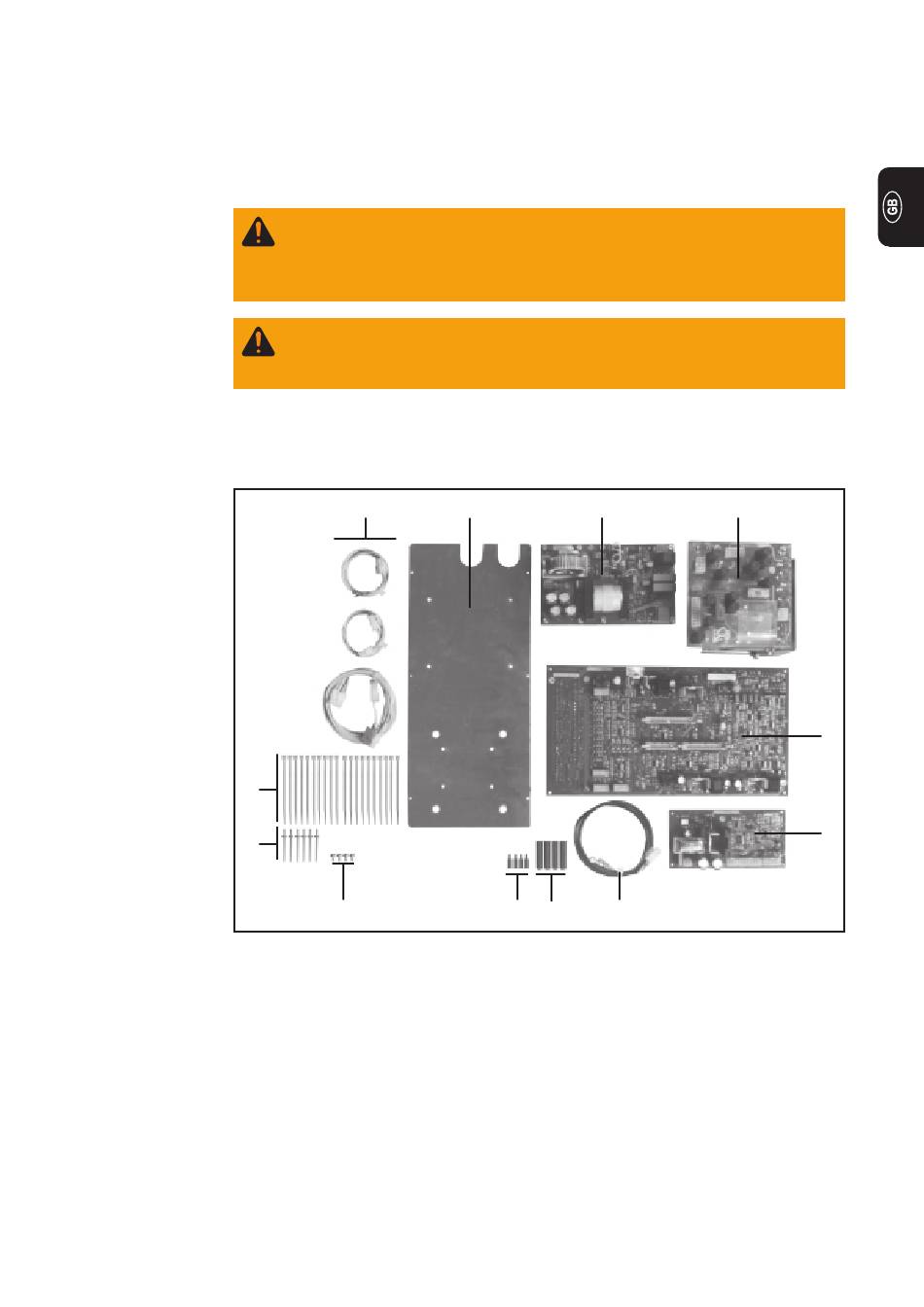

Fig.1
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10) 4 pan-head tapping screws 4.8x9.5
(11)
Warning! Work that is carried out incorrectly can cause serious personal injury
and damage to property. The activities described below must only be carried
out by specialist personnel trained by Fronius! Please follow the safety
regulations given in the operating instructions for the power source.
Warning! An electric shock can be fatal. Before opening the machine:
- Switch the mains switch for the power source into the "O" position
- Unplug the power source from the mains
(6)
(10)
Conversion kit
P.-c. board NVZ 42
P.-c. board PV 45 S
P.-c. board NMI 4 RD
4 spacers M4x15
4 spacers M4x40
Robacta Drive cable harness
P.-c. board mounting plate
Control transformer 220-415V/50H
20 cable ties
6 rivets 3.2
(7) (1)
(4) (5) (6)
1
(8)
(3)
(2)
