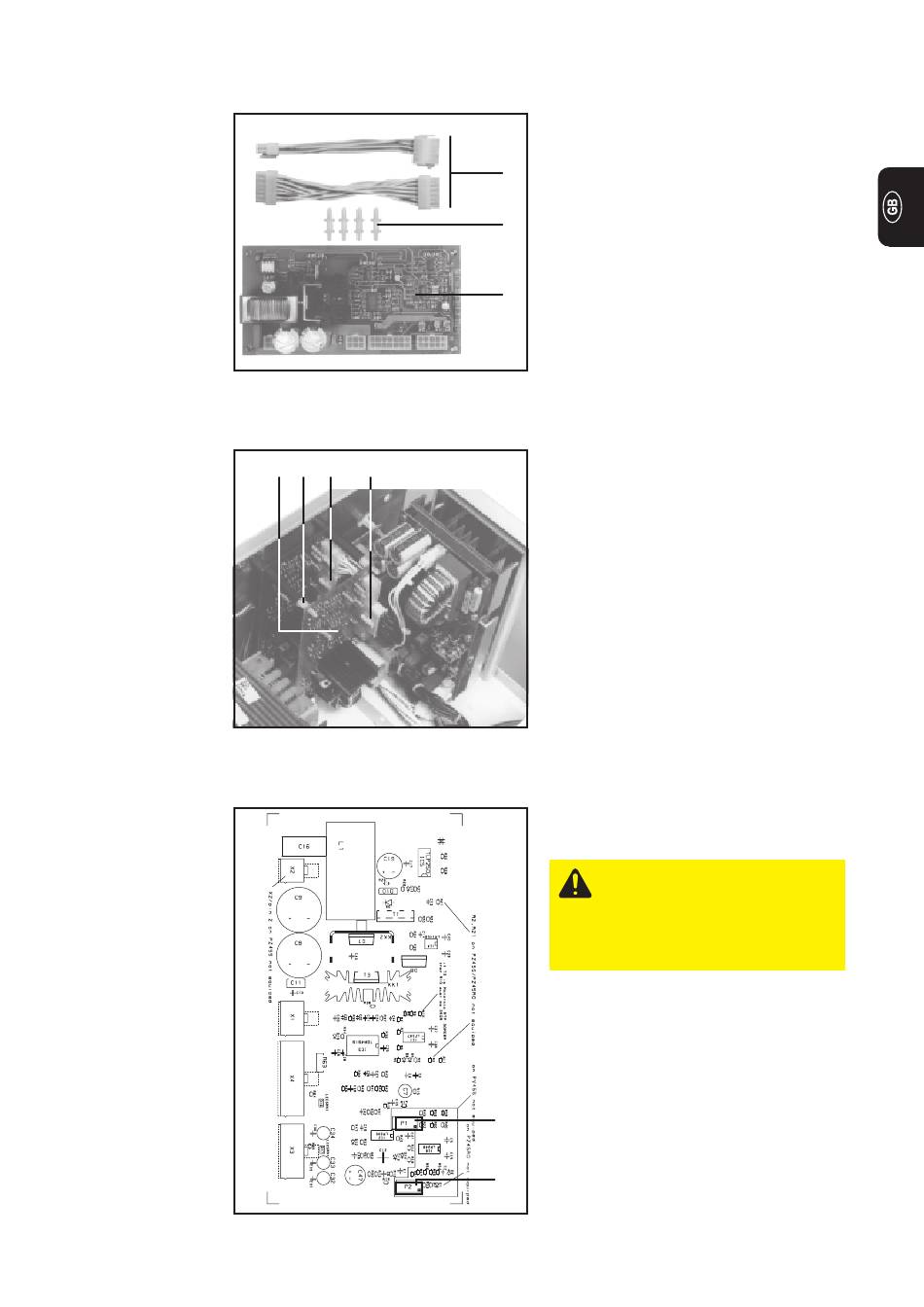

"Intermediate The 4,100,211,U kit is made up of the following components:
Drive for Robacta
Drive"
conversion kit
Fig.3
Converting
appliance to
"Intermediate
Drive for
Robacta"
Fig.4
Motor speed
readjustment for
Intermediate
Drive (VR 153/
155)
Fig.5
Conversion kit
(7) (5) (6) (8)
Installation location of pc board PZ45 RO
Pc board PZ45RO
(1) P.-c. board PZ 45RO
(2) 4 spacers, plug-in type
(3) Cable harness for intermediate drive
(3)
(2)
(1)
- Unscrew housing cover and side
panels
- Screw snap-in spacers - Fig.3/Item (2)
- onto spacers M4x40 - Fig.4/Item (5).
- Plug cables - Fig.3/Item (3) - into the
14-pin jack on pc board PV45S
(A25x4) - Fig.4/Item (6).
- Fit pc board PZ45 RO - Fig.3/Item (1) -
parallel to pc board PV45 S - Fig.4/
Item (7)
- Plug the 14-pin connector into pc
board PZ45 RO (A26X4) - Fig.4/Item
(8)
- Plug the 4-pin connector onto pc board
PZ45 RO (A26X2) and the 10-pin
coupling into the 10-pin jack.
- Assemble entire system (without
welding wire!)
Caution! Risk of injury from
welding wire emerging at speed
from the torch. Hold the torch so
that it points away from your face
and body.
- Check sense of rotation
- Set wirefeed speed to the minimum of
1m/min ... intermediate drive speed:
10 rpm
- Correction possible with P2 on pc
board PZ 45RO - Fig.5
- Set wirefeed speed to the maximum of
P1
22m/min ... intermediate drive speed:
226 rpm
- Correction possible with P1 on pc
P2
board PZ 45RO - Fig.5
- Following alignment, check the
minimum and maximum value once
again.
