Scope of supply
Complete weighing module mounted with stay rod without RTN load cell. For
additional information on the appropriate load cell, please refer to our data
sheet RTN...
Notice
Instead of the load cell, a dummy is installed which is able to support loads up
to the values specified above. Please take care you have to lift the mounted
tank by min. 10 mm to replace the dummy with an RTN load cell.

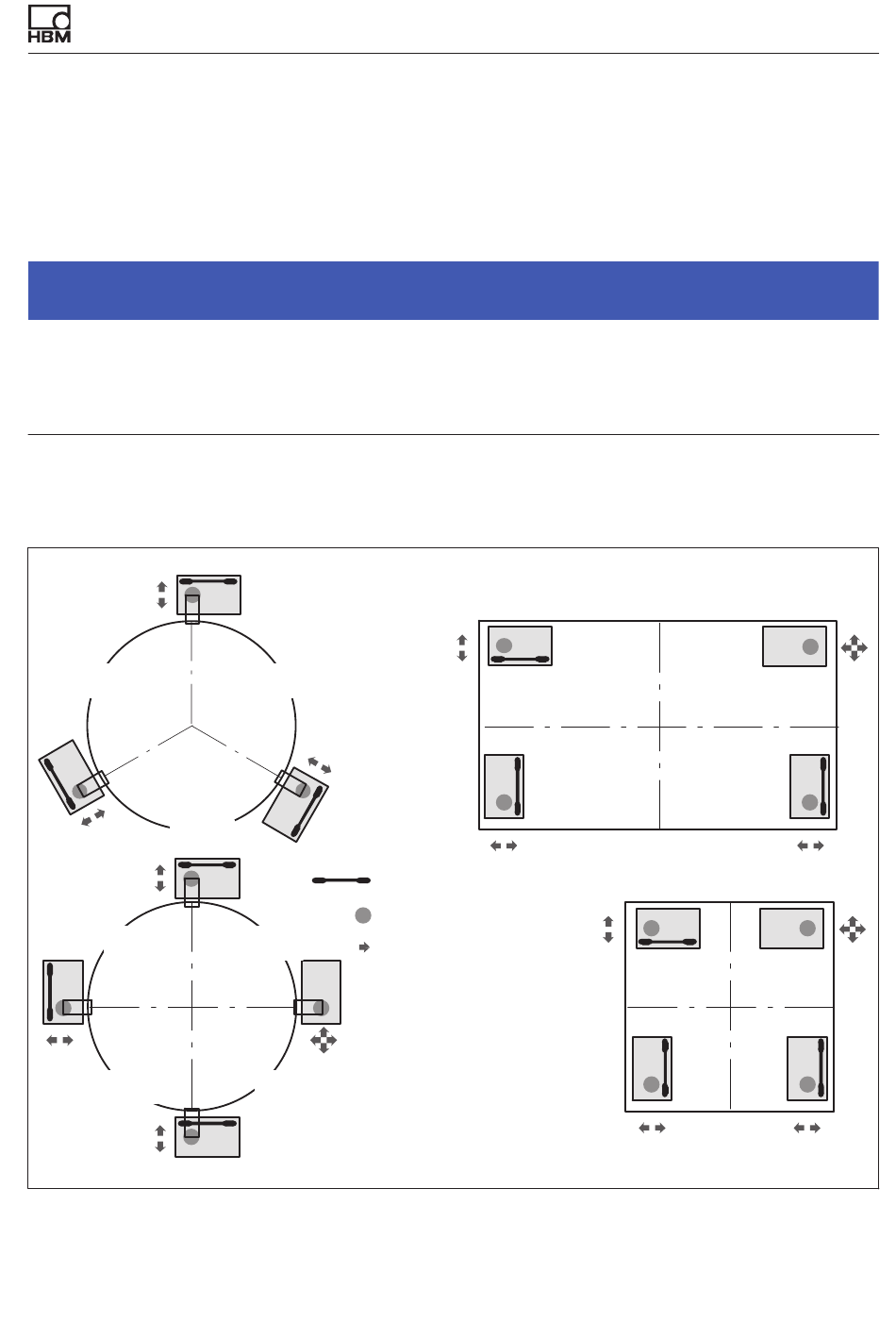

Mounting examples for weighing modules with stay rods
120°
120°
90°
90°
RTN/M2...
120°
Stay rod
Load introduction
90°
Degree of freedom
Attention: The represented
bearing arrangements con­
sider only weighing‐techni­
cal criteria.
The carrying and stability
90°
must be examined and
guaranteed in each case by
the operator.
