Air gap: 1 mm
5 plates max. for height adjustment

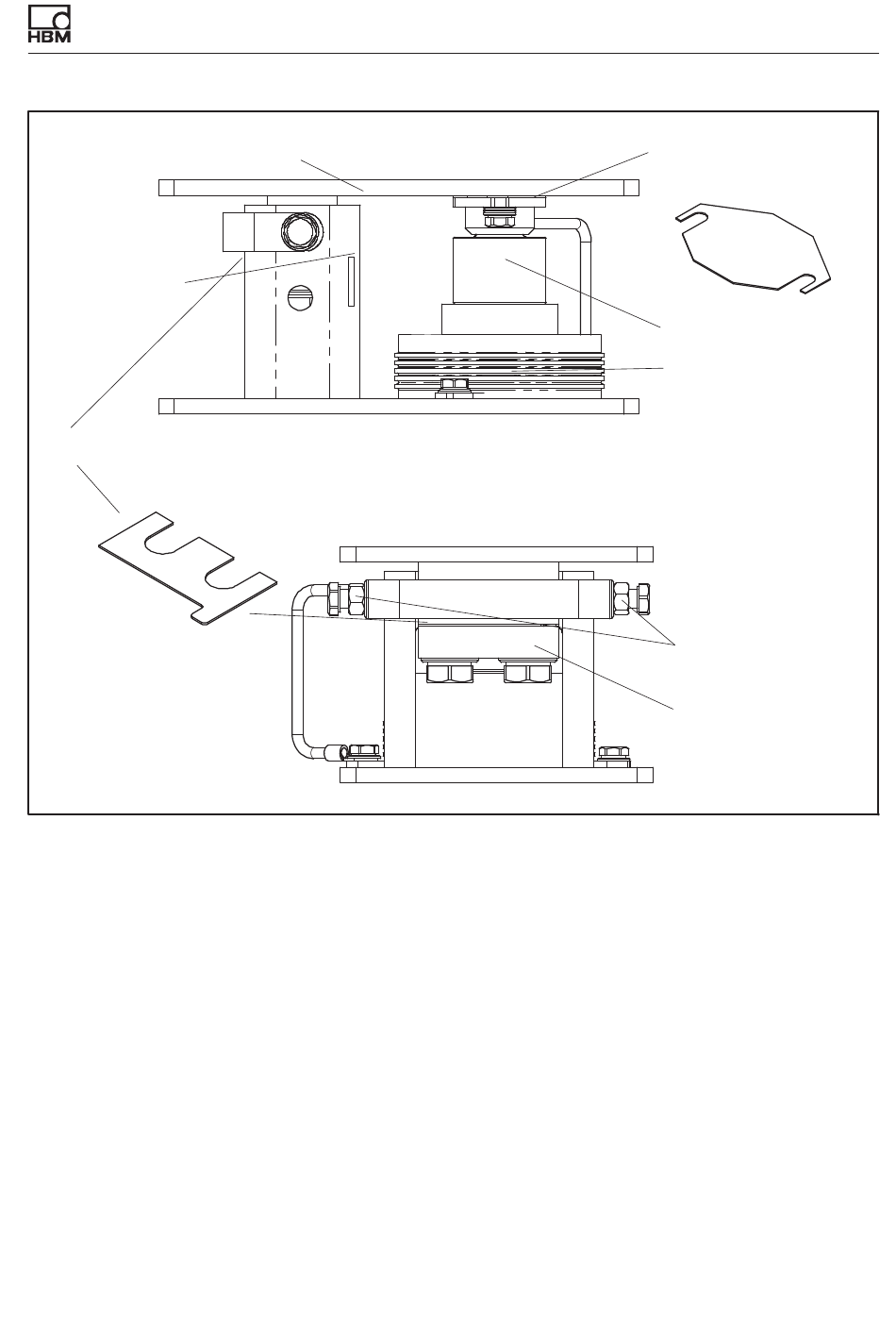

Fig. 4.2
Fitting of the spacer plates with 10 t ... 33 t version
RTN/M2...
Upper module plate
A01867_02_YS0_02 HBM: public
Mounting preparation
5 plates max. for
height adjustment
Dummy
Bearing
Cross‐bracket
(Anti‐liftoff device)
Lateral stops
