4 Identification
4.1 Product description and type
designation
Wiper kit which can be directly installed on the
housing body. Brush and body in steel. Integrates the
support for the wash injector coming from the pump.
Available for housings in the NXM, NXL series.
4.2 Product marking
Check the label on the product packaging.
5 Preparing the product for
use
Any change that is not expressly approved
by the manufacturer will invalidate the
guarantee.
5.1 Unpacking
When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
When returning a faulty product we recommend
using the original packaging for shipping.
Keep the packaging in case you need to send the
product for repairs.
5.2 Contents
Check the contents to make sure they correspond
with the list of materials as below:
• Wiper kit
• Instruction manual
2
5.3 Safely disposing of packaging
material
The packaging material can all be recycled. The
installer technician will be responsible for separating
the material for disposal, and in any case for
compliance with the legislation in force where the
device is to be used.
6 Installation
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
Before starting any operation, make sure
the power supply is disconnected.
6.1 Glass replacement (only for
NXM housing)
Glass replacement is not applied to the
NXM36 version
To install the kit on the NXM housing, the standard
kit needs to be replaced with a special one in the kit
supplied.

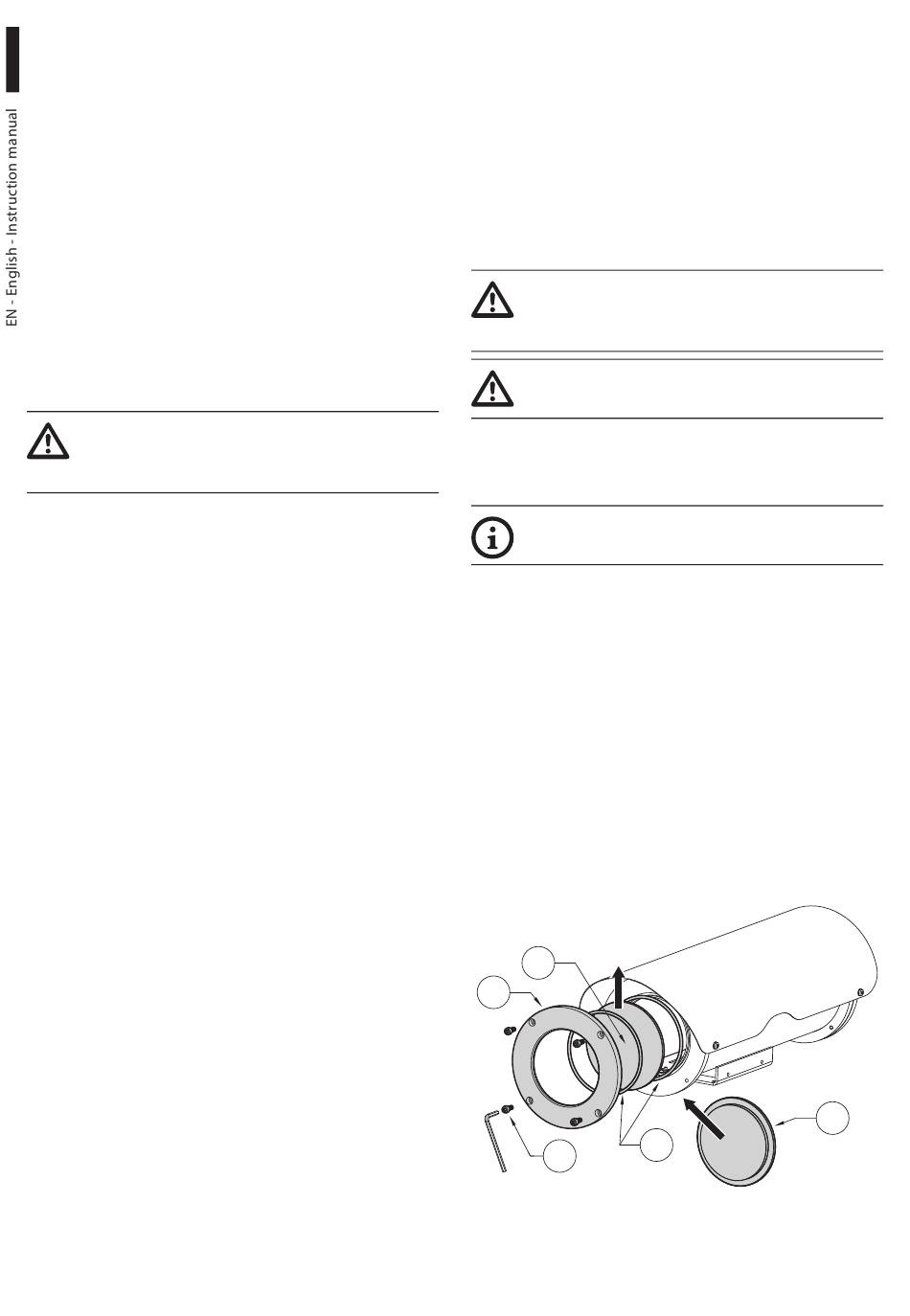

Dismantle the front flange (01) of the housing by
unscrewing the 4 screws (02).
Replace the standard glass (03) with the special glass
(04) by entering it in the specific compartment on the
flange.
Re-assemble the flange on the casing, paying
attention that the relevant gaskets (05) are inserted
correctly in the specific compartments.
Fasten the front flange to the housing body by
tightening the 4 screws.
03
01
02
Fig. 1
05
MNVKVIPNX_1744_EN
04
