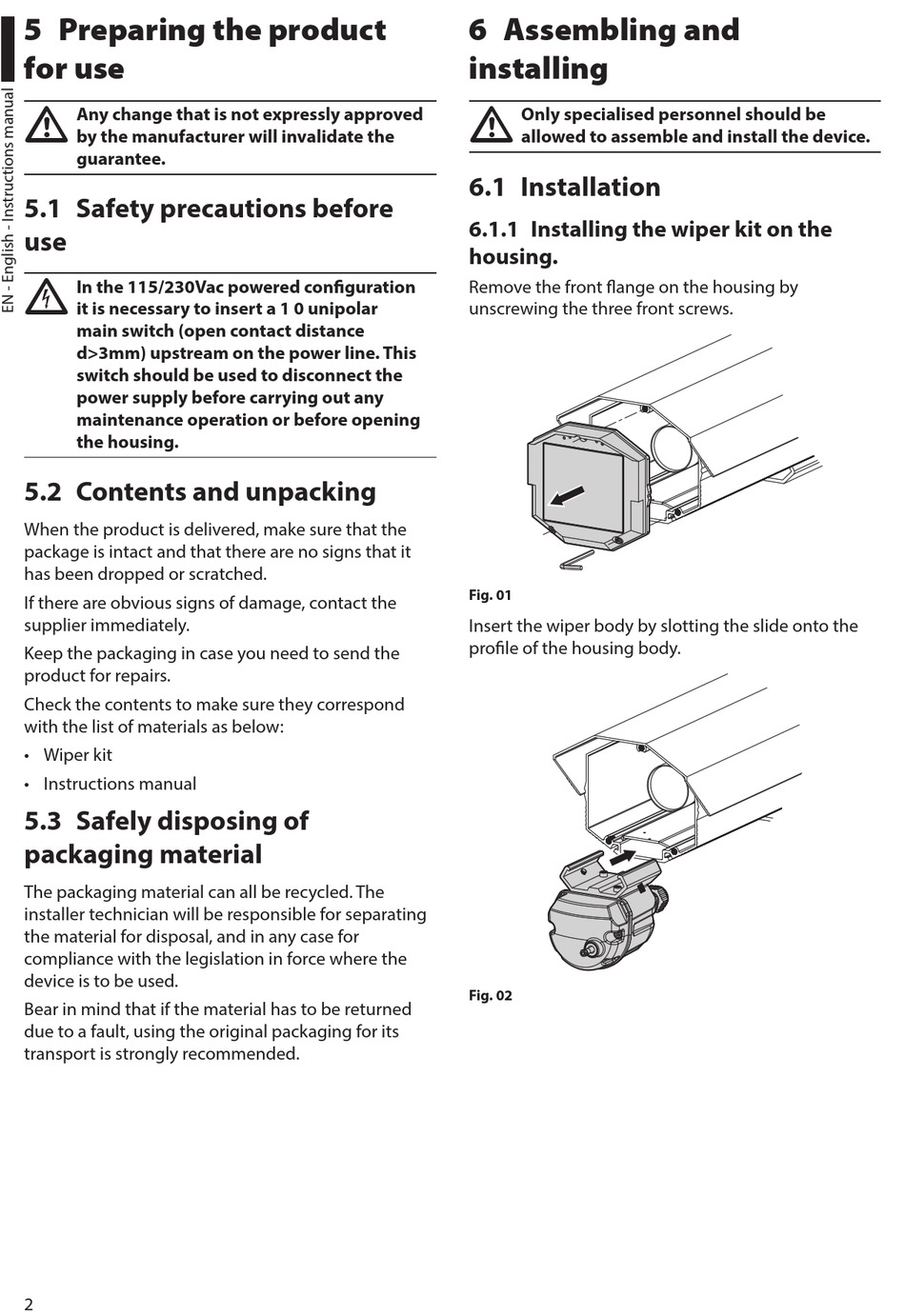

5 Preparing the product
for use
Any change that is not expressly approved
h
by the manufacturer will invalidate the
guarantee.
5.1 Safety precautions before
use
In the 115/230Vac powered configuration
g
it is necessary to insert a 1 0 unipolar
main switch (open contact distance
d>3mm) upstream on the power line. This
switch should be used to disconnect the
power supply before carrying out any
maintenance operation or before opening
the housing.

5.2 Contents and unpacking

When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
Keep the packaging in case you need to send the
product for repairs.
Check the contents to make sure they correspond
with the list of materials as below:
• Wiper kit
• Instructions manual
5.3 Safely disposing of
packaging material
The packaging material can all be recycled. The
installer technician will be responsible for separating
the material for disposal, and in any case for
compliance with the legislation in force where the
device is to be used.
Bear in mind that if the material has to be returned
due to a fault, using the original packaging for its
transport is strongly recommended.
2
6 Assembling and
installing
Only specialised personnel should be
h
allowed to assemble and install the device.
6.1 Installation
6.1.1 Installing the wiper kit on the
housing.
Remove the front flange on the housing by
unscrewing the three front screws.
Fig. 01
Insert the wiper body by slotting the slide onto the
profile of the housing body.
Fig. 02
