Interacoustics AT235 Impedance Audiometer Gebrauchsanweisung Seite 8

AT235 Instruction for Use - English
Date: 2001-06-15
Position: Symbol:
26 Left
27 Right
28 Patient Response
29 Contra
30 Transducer
31 Air
32 Keyboard
33 Power
34 USB
35 Mains
27
26
28 29
30
Explanation to symbols which can be found on the instrument:
I
On (Power: connection to the mains)
O
Off (Power: disconnection from the mains)
∼
Alternating current
Fuse
Ground
Dangerous voltage
!
See explanation in manual
Type B equipment

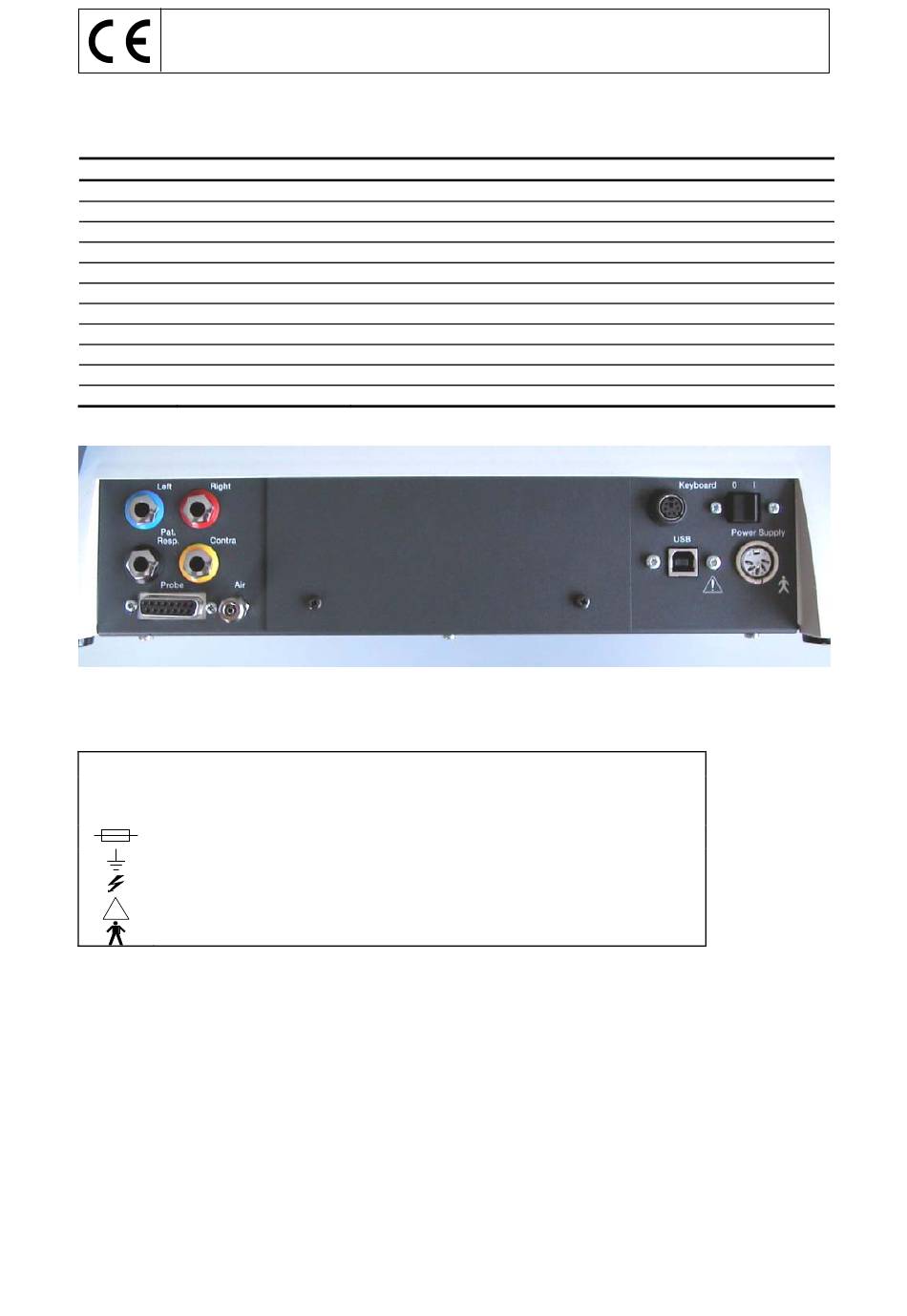

AT235 - Connection Panel Dictionary
Function:
Connector for left headphone TDH39.
Connector for right headphone TDH39.
Plug for patient response switch.
Plug for contra telephone.
Plug for cable from probe system.
Plug for the air hose of the probe system.
Connection for keyboard
Turns power on/off.
Plug for computer connection.
Plug for mains cable.
31
Page 4/7
32 33
34 35
