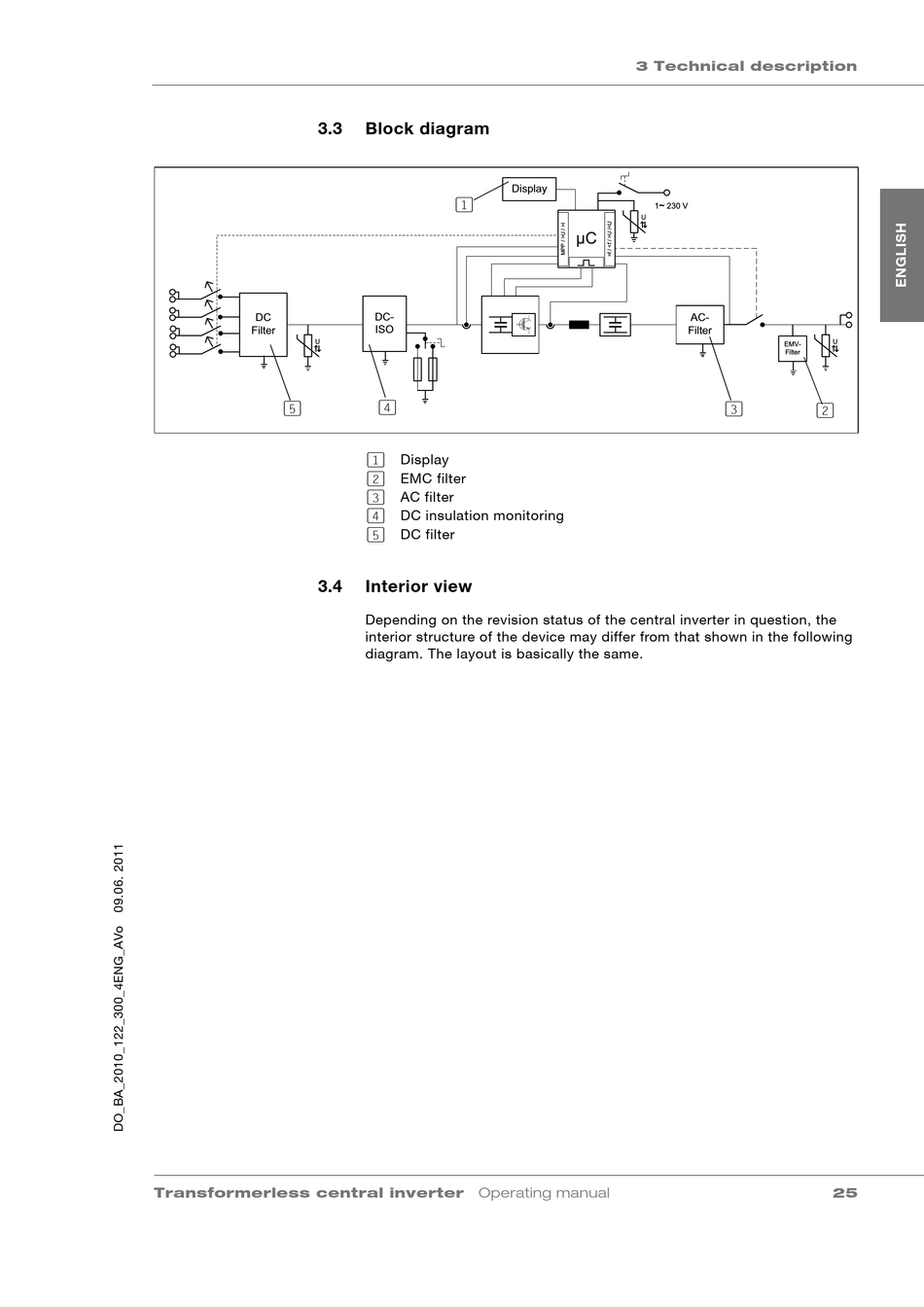

Block Diagram; Interior View - Voltwerk VC 200 Betriebsanleitung

3.3
DC
Filter
U
(5)
3.4
Transformerless central inverter

Block diagram

Display
(1)
DC-
ISO
(4)
(1) Display
(2) EMC filter
(3) AC filter
(4) DC insulation monitoring
(5) DC filter

Interior view

Depending on the revision status of the central inverter in question, the
interior structure of the device may differ from that shown in the following
diagram. The layout is basically the same.
