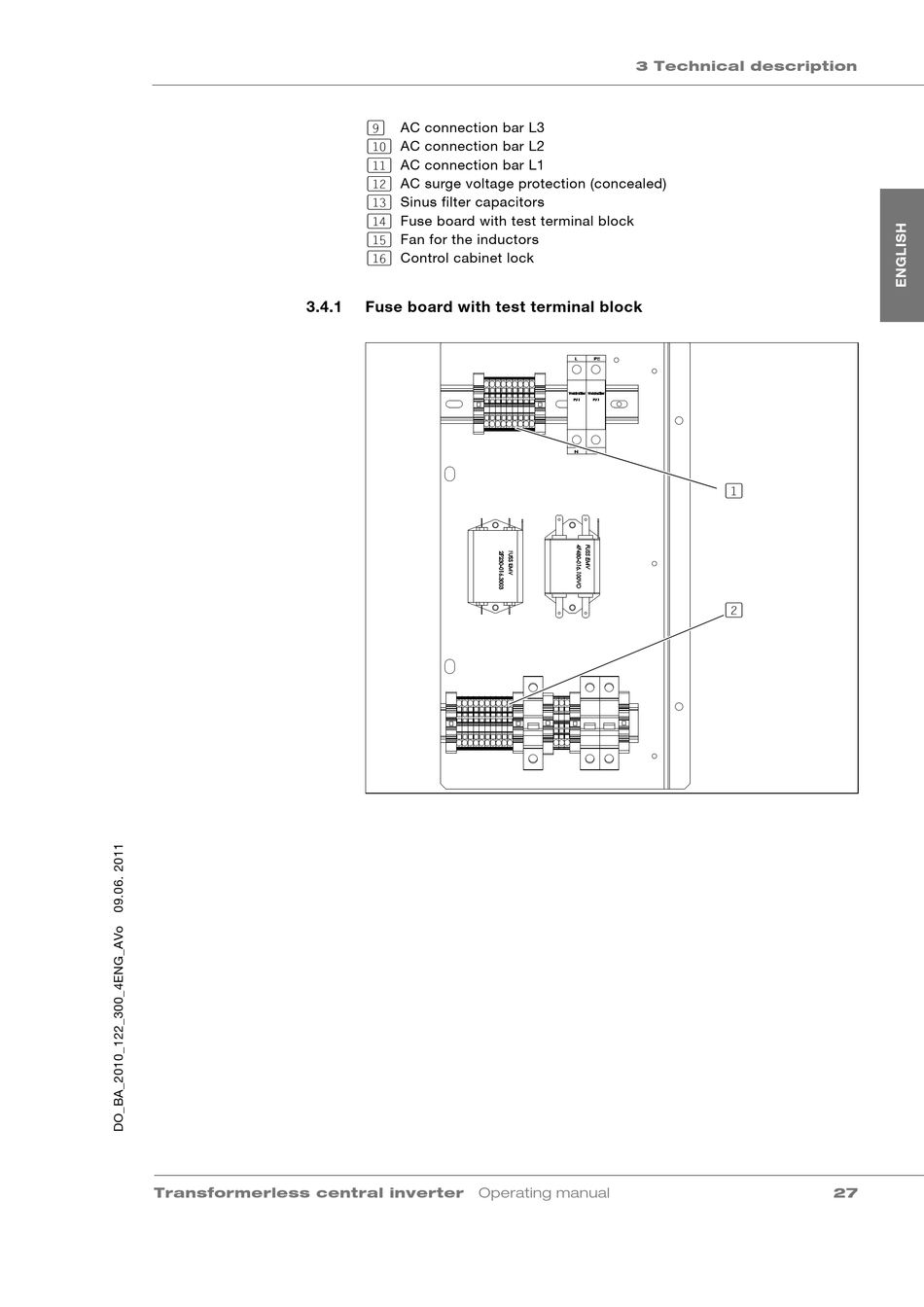

3.4.1
Transformerless central inverter
(9) AC connection bar L3
(10) AC connection bar L2
(11) AC connection bar L1
(12) AC surge voltage protection (concealed)
(13) Sinus filter capacitors

(14) Fuse board with test terminal block

(15) Fan for the inductors
(16) Control cabinet lock
Fuse board with test terminal block
Operating manual
