3 Technical description
(15)
(14)
(13)
(12)
26
(16)
(11)

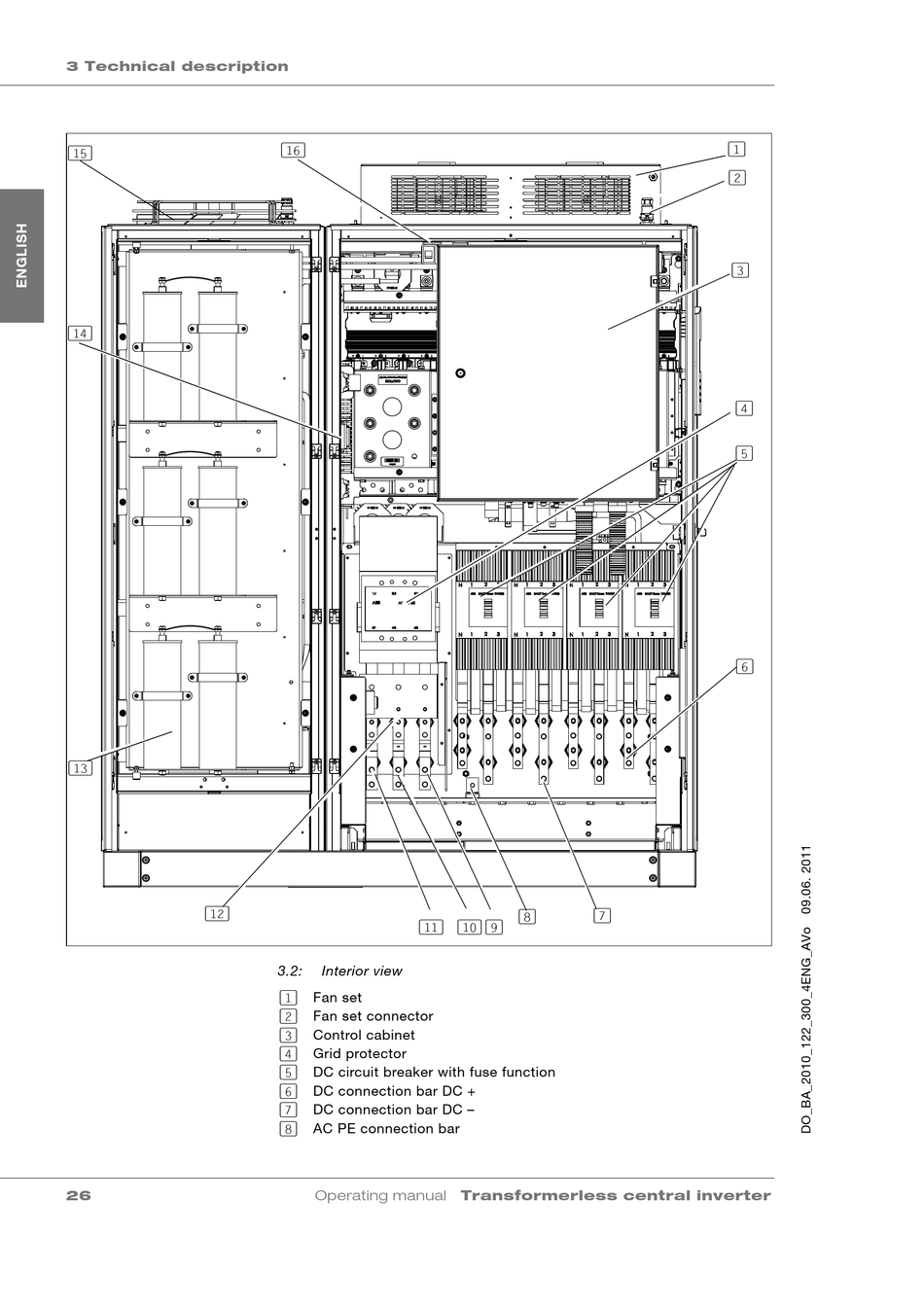

3.2: Interior view
(1) Fan set
(2) Fan set connector
(3) Control cabinet
(4) Grid protector
(5) DC circuit breaker with fuse function
(6) DC connection bar DC +
(7) DC connection bar DC –
(8) AC PE connection bar
Operating manual
(7)
(8)
(10) (9)
Transformerless central inverter
(1)
(2)
(3)
(4)
(5)
(6)
