2 Safety
16
(13)
(12)

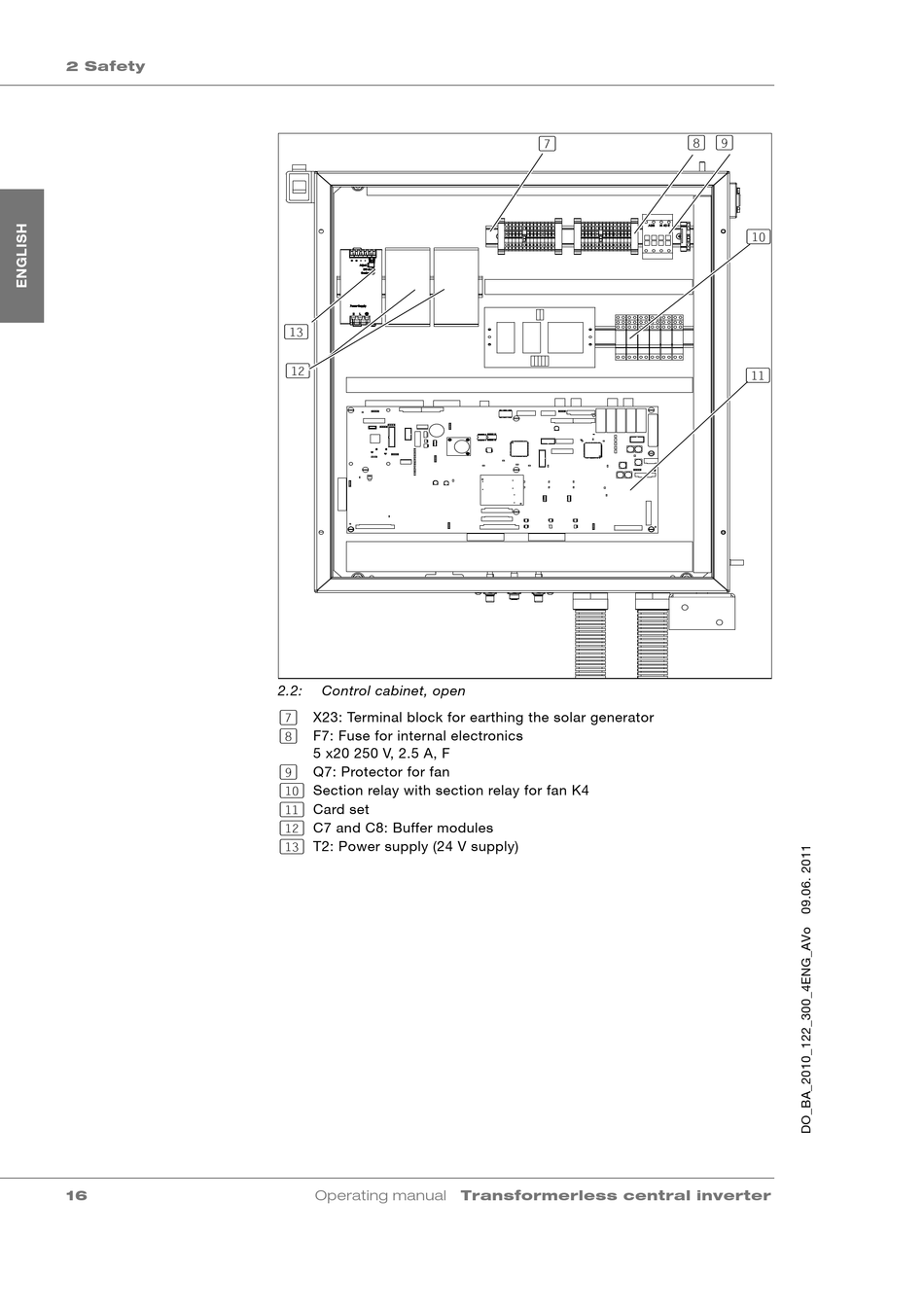

2.2: Control cabinet, open
(7) X23: Terminal block for earthing the solar generator
(8) F7: Fuse for internal electronics
5 x20 250 V, 2.5 A, F
(9) Q7: Protector for fan
(10) Section relay with section relay for fan K4
(11) Card set
(12) C7 and C8: Buffer modules
(13) T2: Power supply (24 V supply)
