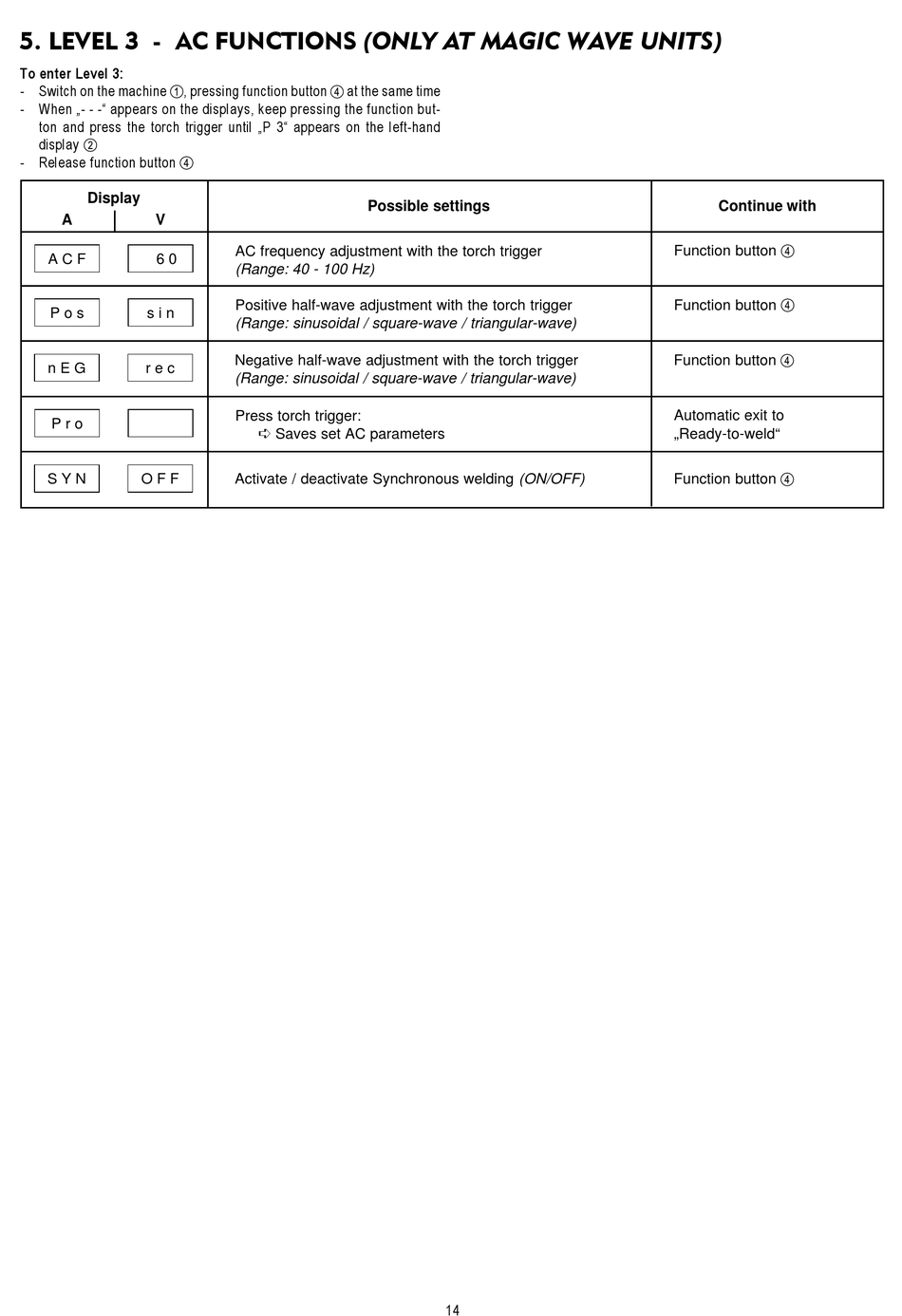

5. LEVEL 3 - AC FUNCTIONS (ONLY AT MAGIC WAVE UNITS)
To enter Level 3:
- Switch on the machine
, pressing function button
- When „- - -" appears on the displays, keep pressing the function but-
ton and press the torch trigger until „P 3" appears on the left-hand
display
- Release function button
Display
A
V
A C F
6 0
P o s
s i n
n E G
r e c
P r o
S Y N
O F F
at the same time
Possible settings
AC frequency adjustment with the torch trigger
(Range: 40 - 100 Hz)
Positive half-wave adjustment with the torch trigger
(Range: sinusoidal / square-wave / triangular-wave)
Negative half-wave adjustment with the torch trigger
(Range: sinusoidal / square-wave / triangular-wave)
Press torch trigger:
ê Saves set AC parameters
Activate / deactivate Synchronous welding (ON/OFF)
14
Continue with
Function button
Function button
Function button
Automatic exit to
„Ready-to-weld"
Function button
