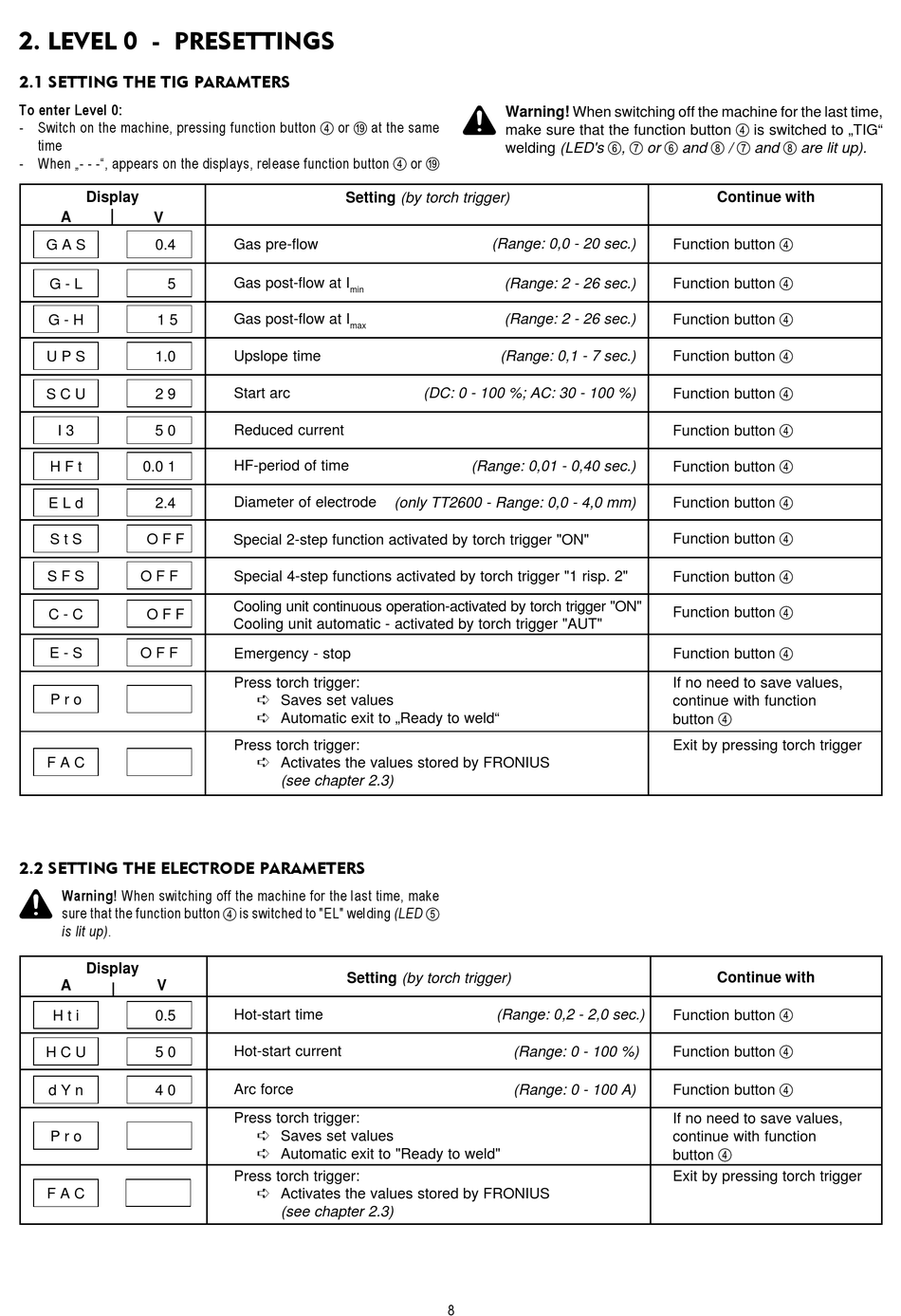

2. LEVEL 0 - PRESETTINGS

2.1 SETTING THE TIG PARAMTERS

To enter Level 0:
- Switch on the machine, pressing function button
time
- When „- - -", appears on the displays, release function button
Display
A V
G A S 0.4
G - L 5
G - H 1 5
U P S 1.0
S C U 2 9
I 3 5 0
H F t 0.0 1
E L d 0 2.4
S t S O F F
S F S O F F
C - C O F F
E - S O F F
P r o
F A C

2.2 SETTING THE ELECTRODE PARAMETERS

Warning! When switching off the machine for the last time, make
sure that the function button
is lit up).
Display
A V
H t i 0.5
H C U 0 5 0
d Y n 0 4 0
P r o
F A C
or at the same
Setting (by torch trigger)
Gas pre-flow
Gas post-flow at I
min
Gas post-flow at I
max
Upslope time
Start arc
Reduced current
HF-period of time
Diameter of electrode (only TT2600 - Range: 0,0 - 4,0 mm)
Special 2-step function activated by torch trigger "ON"
Special 4-step functions activated by torch trigger "1 risp. 2"
Cooling unit continuous operation-activated by torch trigger "ON"
Cooling unit automatic - activated by torch trigger "AUT"
Emergency - stop
Press torch trigger:
ê Saves set values
ê Automatic exit to „Ready to weld"
Press torch trigger:
ê Activates the values stored by FRONIUS
(see chapter 2.3)
is switched to "EL" welding (LED
Setting (by torch trigger)
Hot-start time
Hot-start current
Arc force
Press torch trigger:
ê Saves set values
ê Automatic exit to "Ready to weld"
Press torch trigger:
ê Activates the values stored by FRONIUS
(see chapter 2.3)
Warning! When switching off the machine for the last time,
make sure that the function button
welding (LED's
or
(Range: 0,0 - 20 sec.)
(Range: 2 - 26 sec.)
(Range: 2 - 26 sec.)
(Range: 0,1 - 7 sec.)
(DC: 0 - 100 %; AC: 30 - 100 %)
(Range: 0,01 - 0,40 sec.)
(Range: 0,2 - 2,0 sec.)
(Range: 0 - 100 %)
(Range: 0 - 100 A)
8
is switched to „TIG"
, or and / and
Continue with
Function button
Function button
Function button
Function button
Function button
Function button
Function button
Function button
Function button
Function button
Function button
Function button
If no need to save values,
continue with function
button
Exit by pressing torch trigger
Continue with
Function button
Function button
Function button
If no need to save values,
continue with function
button
Exit by pressing torch trigger
are lit up).
