PegaSys Authorisation reader 2.1 and
4.1 Display/keypad
Fuse
Switch output
Switching power
Switching voltage
Input
Operating temper-
ature
Protection rating
Humidity
RFID credential
reader
Read range
Cable, adapter
board to IO control-
ler
IO controller cable
to online controller
Display for user
Input option for user Numeric keypad
Radio emis-
sions
13.553 MHz - 13.567
MHz
EN

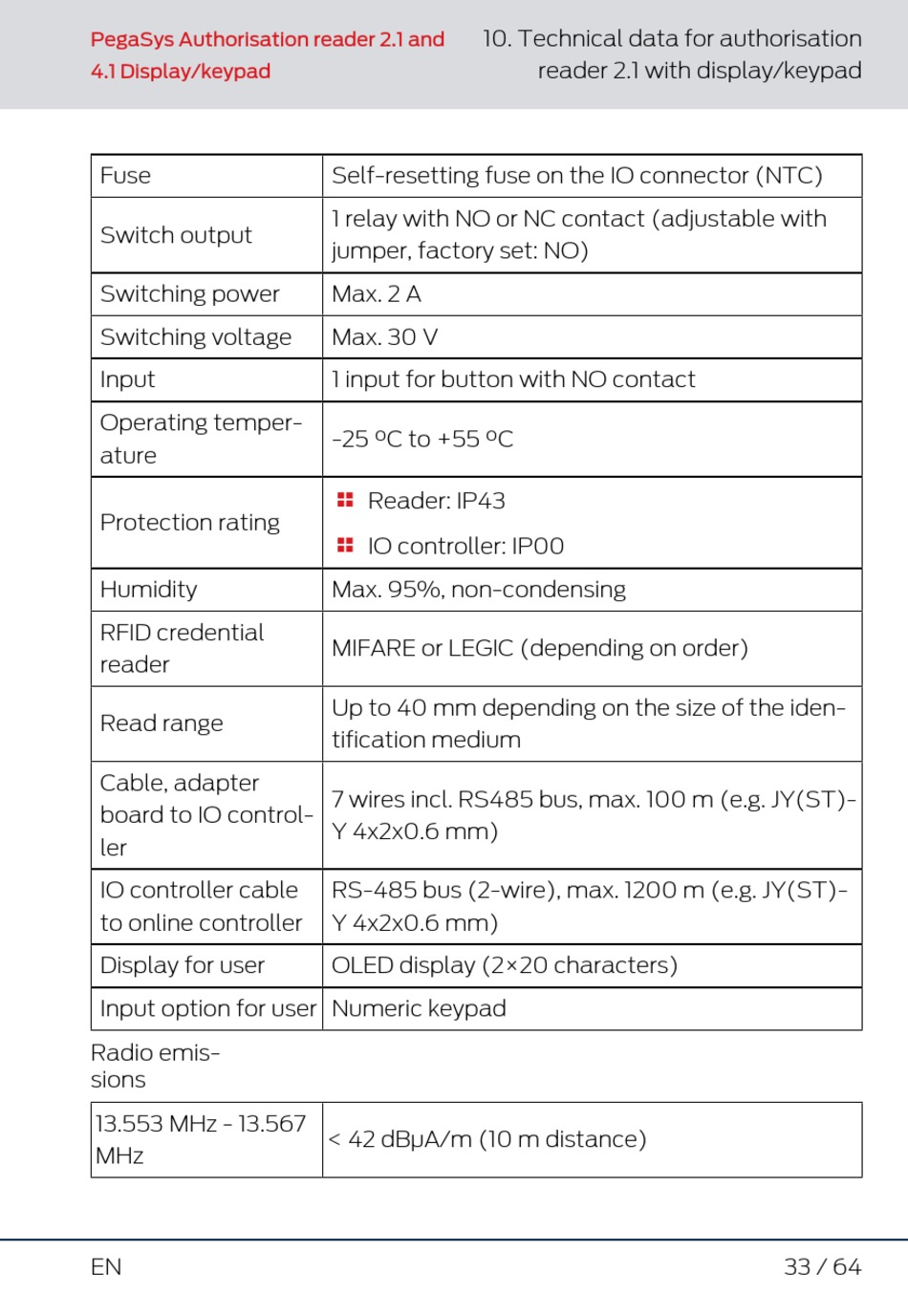

10. Technical data for authorisation
Self-resetting fuse on the IO connector (NTC)
1 relay with NO or NC contact (adjustable with
jumper, factory set: NO)
Max. 2 A
Max. 30 V
1 input for button with NO contact
-25 °C to +55 °C
Reader: IP43

IO controller: IP00

Max. 95%, non-condensing
MIFARE or LEGIC (depending on order)
Up to 40 mm depending on the size of the iden-
tification medium
7 wires incl. RS485 bus, max. 100 m (e.g. JY(ST)-
Y 4x2x0.6 mm)
RS-485 bus (2-wire), max. 1200 m (e.g. JY(ST)-
Y 4x2x0.6 mm)
OLED display (2×20 characters)
< 42 dBµA/m (10 m distance)
reader 2.1 with display/keypad
