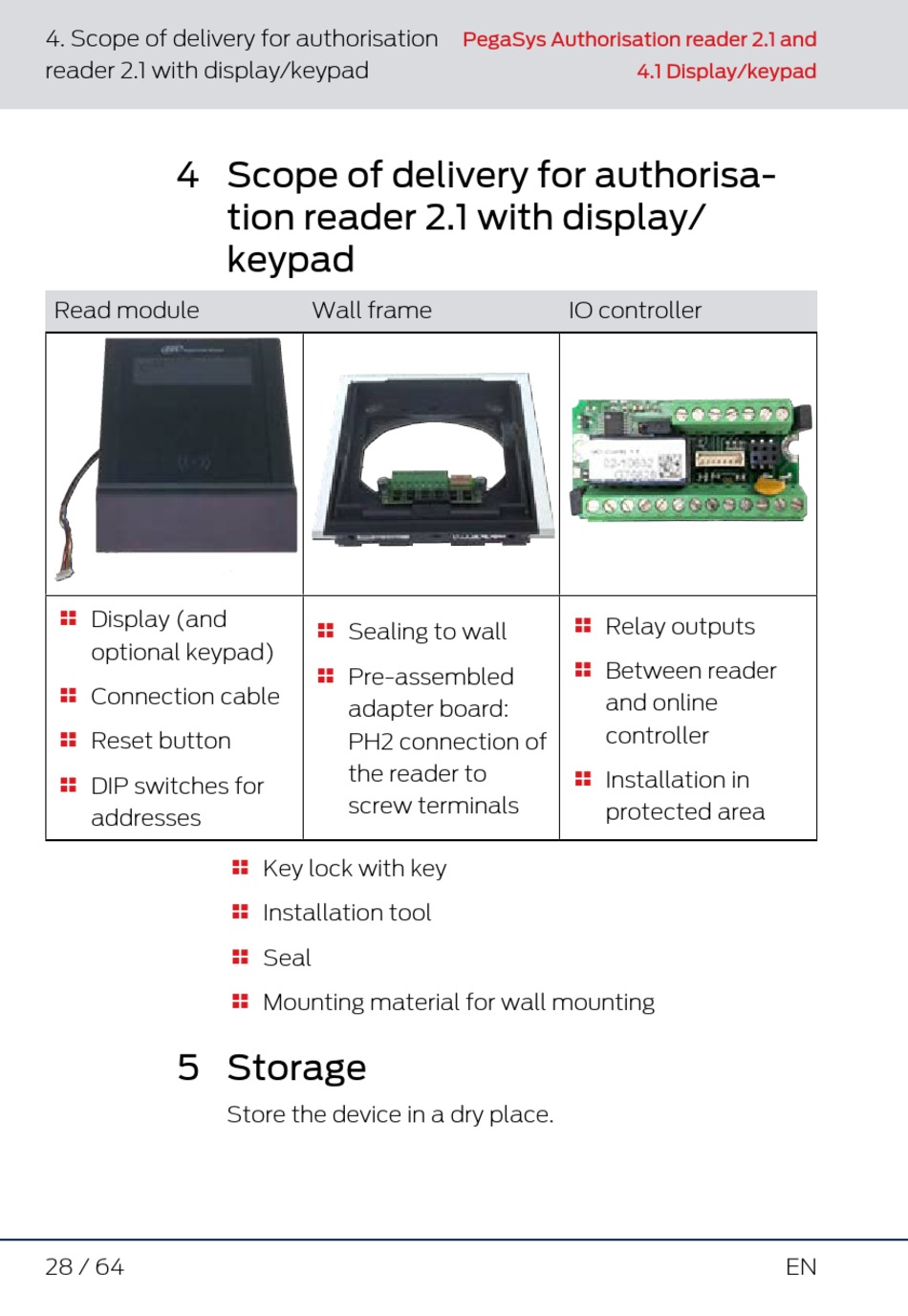

4. Scope of delivery for authorisation
reader 2.1 with display/keypad
4 Scope of delivery for authorisa-
Read module
Display (and

optional keypad)
Connection cable

Reset button

DIP switches for

addresses

5 Storage

28 / 64
tion reader 2.1 with display/
keypad
Wall frame
Sealing to wall

Pre-assembled

adapter board:
PH2 connection of
the reader to
screw terminals
Key lock with key

Installation tool

Seal

Mounting material for wall mounting

Store the device in a dry place.
PegaSys Authorisation reader 2.1 and
IO controller
Relay outputs

Between reader

and online
controller
Installation in

protected area
