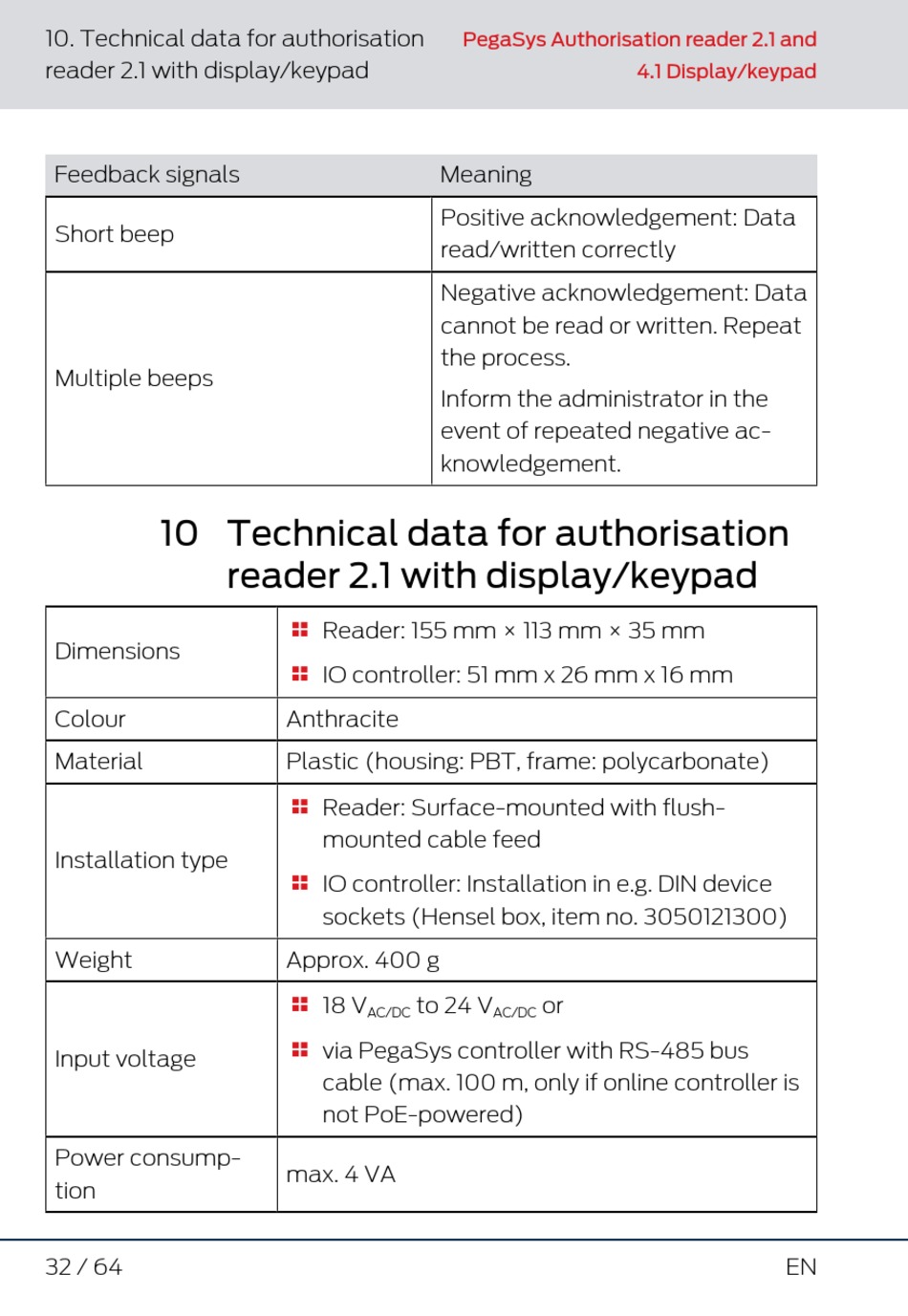

10. Technical data for authorisation
reader 2.1 with display/keypad
Feedback signals
Short beep
Multiple beeps
10 Technical data for authorisation
Dimensions
Colour
Material
Installation type
Weight
Input voltage
Power consump-
tion
32 / 64
reader 2.1 with display/keypad
Reader: 155 mm × 113 mm × 35 mm

IO controller: 51 mm x 26 mm x 16 mm

Anthracite
Plastic (housing: PBT, frame: polycarbonate)
Reader: Surface-mounted with flush-

mounted cable feed
IO controller: Installation in e.g. DIN device

sockets (Hensel box, item no. 3050121300)
Approx. 400 g
18 V

AC/DC
via PegaSys controller with RS-485 bus

cable (max. 100 m, only if online controller is
not PoE-powered)
max. 4 VA
PegaSys Authorisation reader 2.1 and
Meaning
Positive acknowledgement: Data
read/written correctly
Negative acknowledgement: Data
cannot be read or written. Repeat
the process.
Inform the administrator in the
event of repeated negative ac-
knowledgement.
to 24 V or
AC/DC
4.1 Display/keypad
EN
