Examples of arrangement of air heating units mounted on a wall

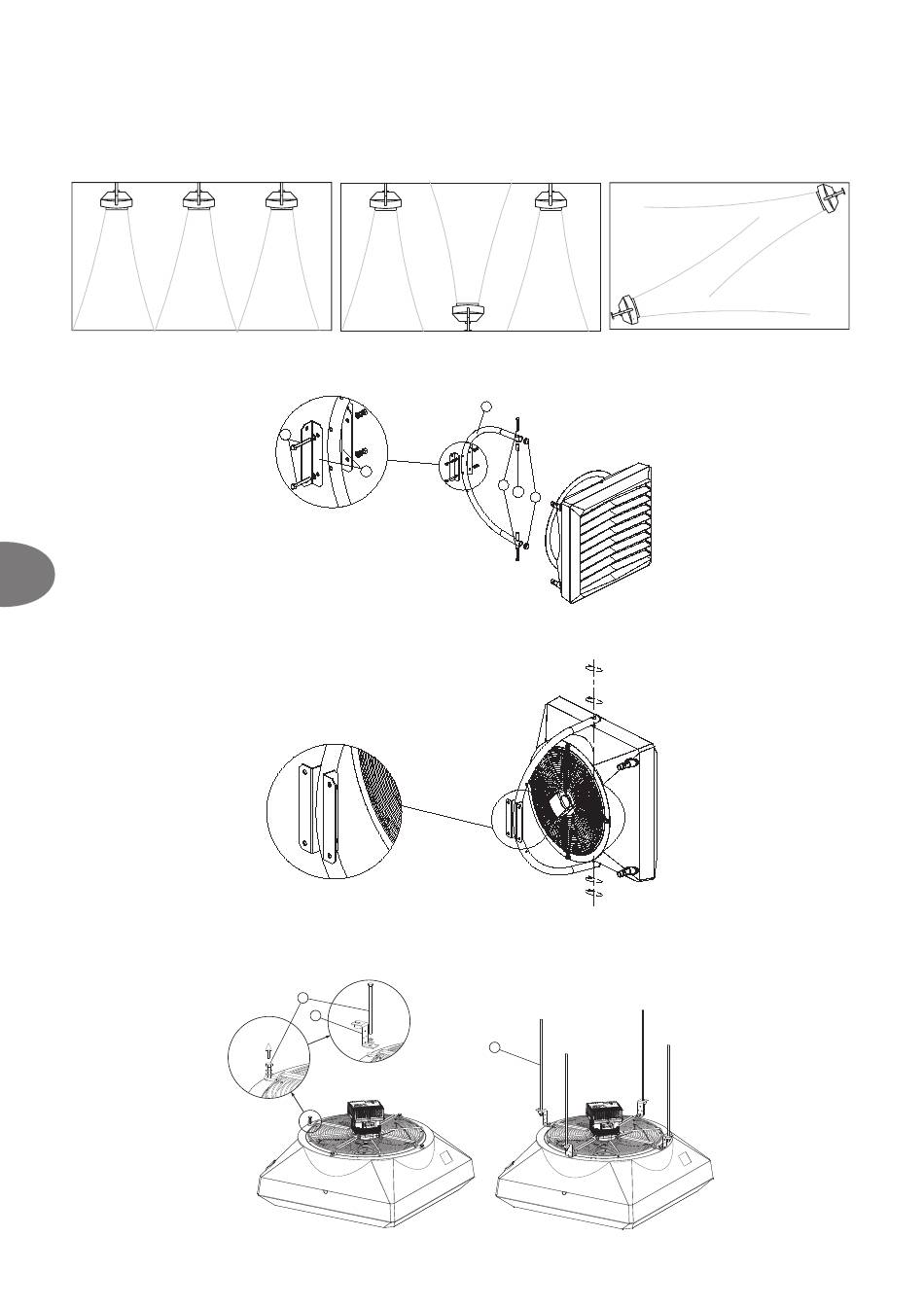

4.1 INSTALLATION WITH A BRACKET

The bracket is optional. In order to attach a bracket to the device, use crown drill bits to drill holes in the top and bottom panels of the heating unit (in places marked by 6), and insert sleeves
into the holes. Slide holder arms onto the sleeves. Insert M10 screws into the top and bottom sleeves, and fix the bracket position in relation to the heater while tightening the screws. When you
adjust the device in the right position, fit plugs onto the bracket.
EN
The bracket unit consists of:
1. ARM (1 piece); 2. HOLDER; 3. M10 SCREW WITH A WASHER AND NUT FASTENING THE CLAMP (2 sets); 4. M10 SCREW FASTENING THE HOLDER TO THE UNIT HEATER (2
pieces); 5. PLUG (2 pieces); 6. MOUNTING SLEEVE (2 pieces)
Rotation of the device when mounted on a console

4.2 INSTALLATION IN HORIZONTAL POSITION

Volcano units can be also installed in a horizontal position. To suspend the unit, special holders (1) have to be used. In order to install the holders, remove the screw (2) fixing the fan grid, install
holder (1) and screw the screw (2) in. Reapat for the remaining screws. Do not unscrew all screws at the same time!
Top view
3
2
2
1
30
Volcano V mini
Volcano V mini
1
4
6
5
120 °
3
supply
supply
return
return
