Audio
Connector

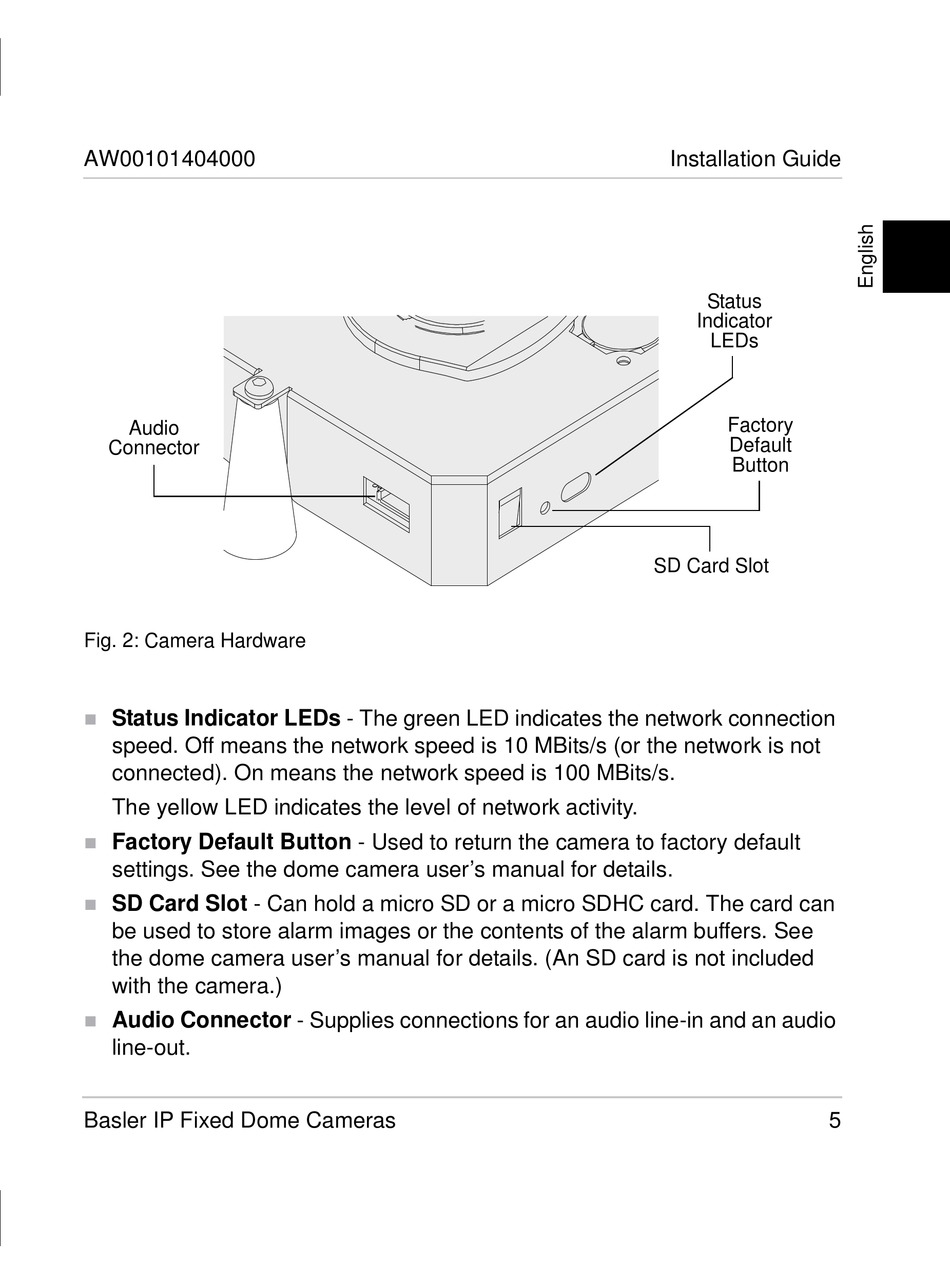

Fig. 2: Camera Hardware
 Status Indicator LEDs - The green LED indicates the network connection
speed. Off means the network speed is 10 MBits/s (or the network is not
connected). On means the network speed is 100 MBits/s.
The yellow LED indicates the level of network activity.
Factory Default Button - Used to return the camera to factory default

settings. See the dome camera user's manual for details.
SD Card Slot - Can hold a micro SD or a micro SDHC card. The card can

be used to store alarm images or the contents of the alarm buffers. See
the dome camera user's manual for details. (An SD card is not included
with the camera.)
 Audio Connector - Supplies connections for an audio line-in and an audio
line-out.
Basler IP Fixed Dome Cameras
Installation Guide
Status
Indicator
LEDs
Factory
Default
Button
SD Card Slot
