3. Complete the wiring at the terminal blocks.
a. If you will be using the camera's I/O ports or the DC Out capabilities,
refer to Table 1 on page 36 and to Figure 4 on page 40, and make the
appropriate wiring connections at the main terminal block now.
b. If you are installing an outdoor dome camera and you want to disable
the camera's heater (this will lower the camera power consumption),
refer to Table 1 on page 36 and apply a jumper between the "Heater
Off" and the "Gnd" wire fixing holes in the main terminal block now.
c. If you will be making an RS-485 connection to the camera, refer to
page 40 and make the appropriate wiring connections to the RS-485
terminal block now.

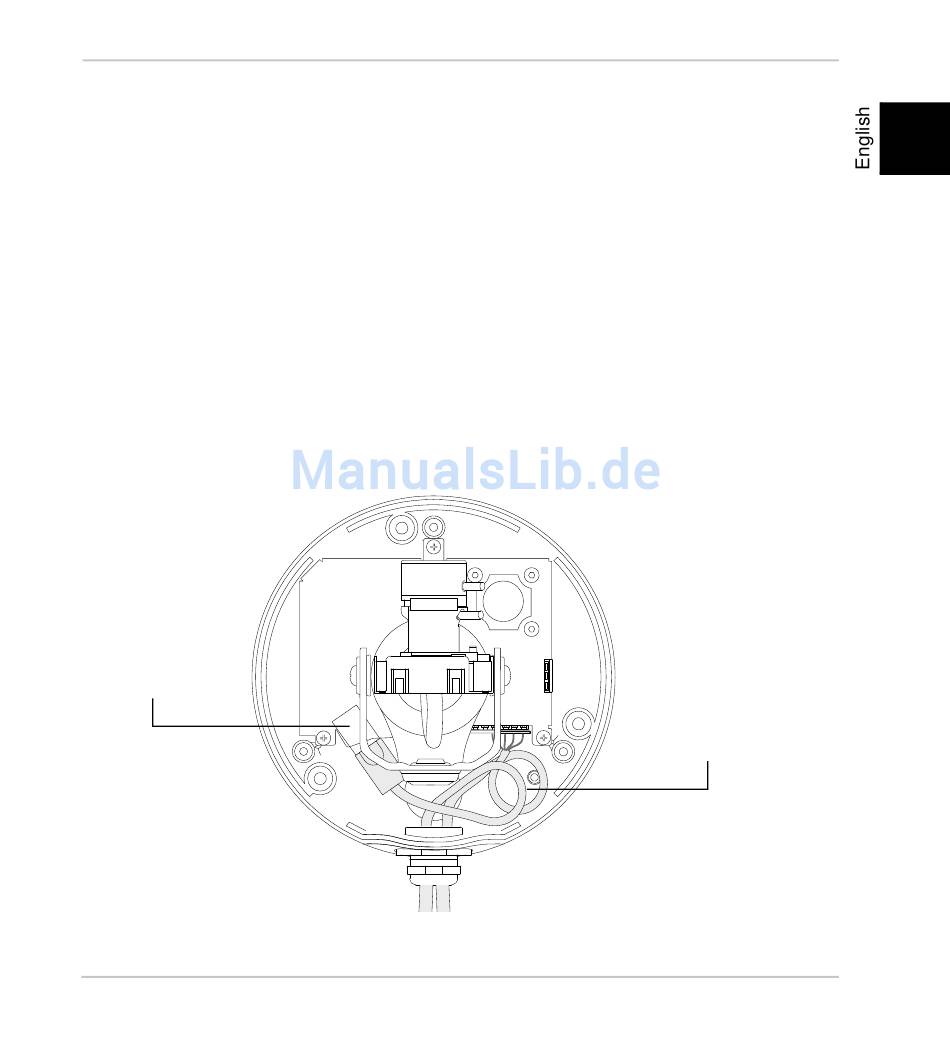

4. Connect the network cable to the RJ-45 connector now. It is easiest to
connect the cable if you loop it as shown below.
RJ-45
Connector
Basler IP Fixed Dome Cameras
Installation Guide
Looped
Network
Cable
