Installation Guide

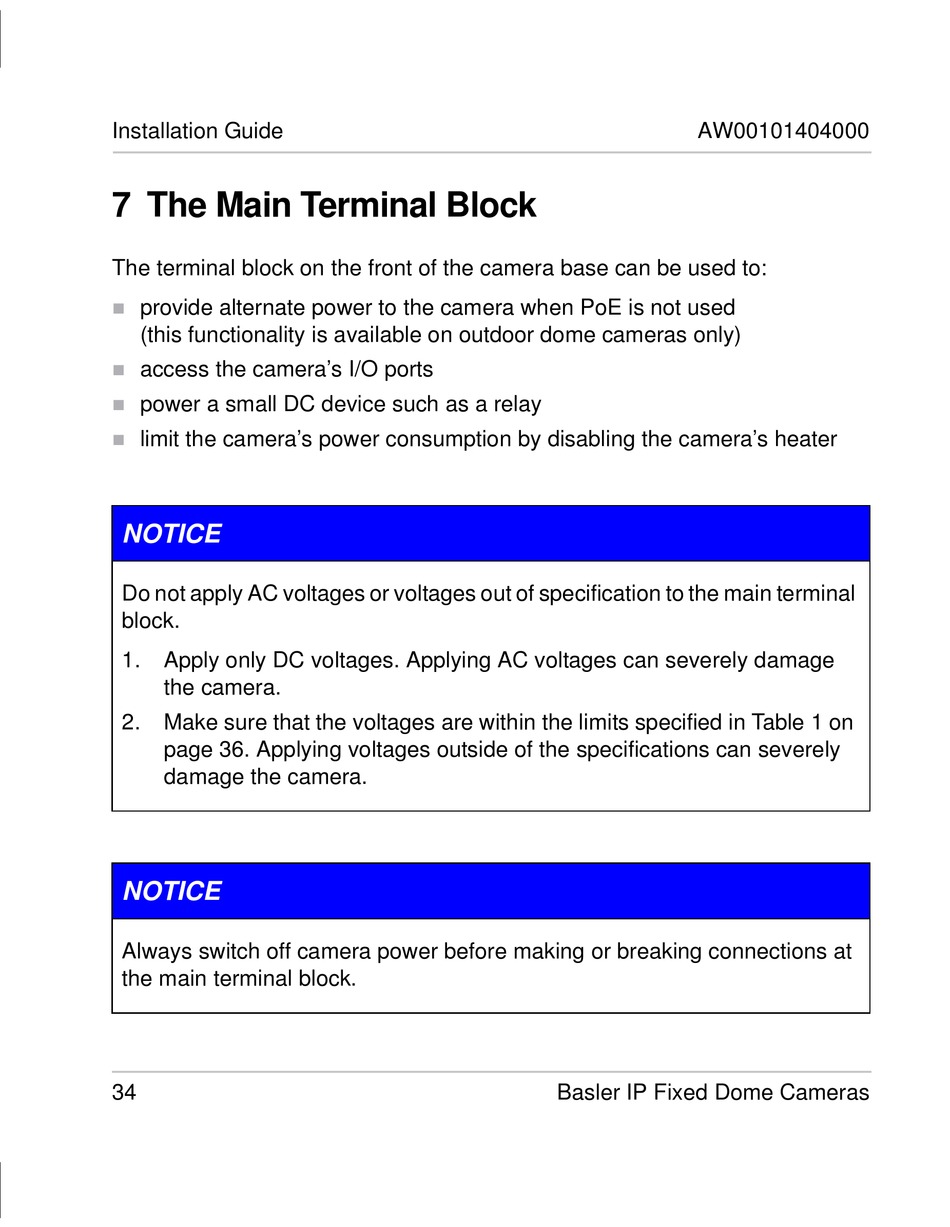

7 The Main Terminal Block
The terminal block on the front of the camera base can be used to:
provide alternate power to the camera when PoE is not used

(this functionality is available on outdoor dome cameras only)
access the camera's I/O ports

 power a small DC device such as a relay
 limit the camera's power consumption by disabling the camera's heater
NOTICE
Do not apply AC voltages or voltages out of specification to the main terminal
block.
1. Apply only DC voltages. Applying AC voltages can severely damage
the camera.
2. Make sure that the voltages are within the limits specified in Table 1 on
page 36. Applying voltages outside of the specifications can severely
damage the camera.
NOTICE
Always switch off camera power before making or breaking connections at
the main terminal block.
34
AW00101404000
Basler IP Fixed Dome Cameras
