Installation Guide
2. If you are installing an outdoor dome camera and camera power will be
supplied via the main terminal block:
a. Make sure that your power supply meets the requirements for alternate
camera power stated in Table 1 on page 36.
b. Locate the two wires that will be used to supply power to the camera.
c. Make sure that you can identify which wire is positive and which is
ground. If you are not sure, use a voltmeter to identify the wires now.
d. Switch off the power supply for the camera.
e. Strip 8 mm (5/16") of insulation from the end of each wire.

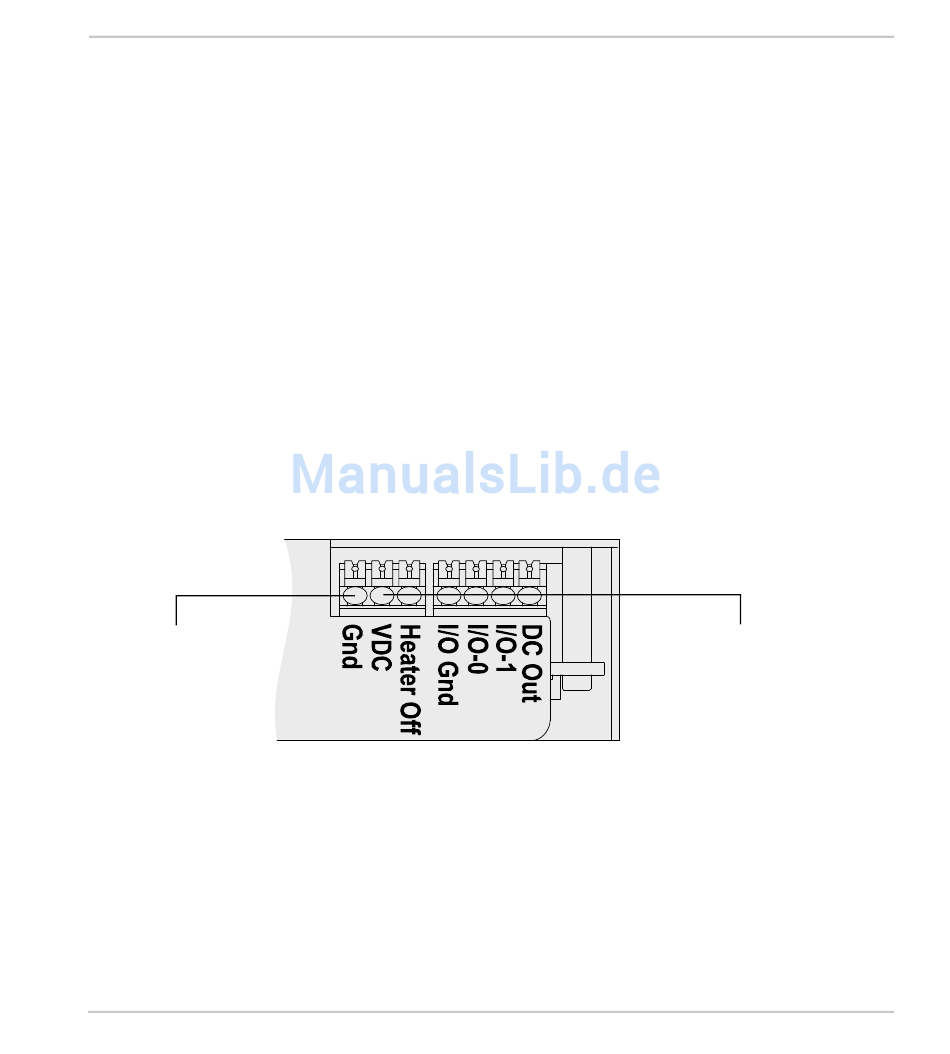

f. Insert the positive wire into the wiring fixing hole in the terminal block
marked "VDC" as shown below.
g. Insert the ground wire into the wire fixing hole marked "Gnd".
Insert
Ground
Wire
Here
16
AW00101404000
Insert
Positive
Wire
Here
