1 Hardware Overview

RJ-45
Network/PoE
Main
Terminal
Block

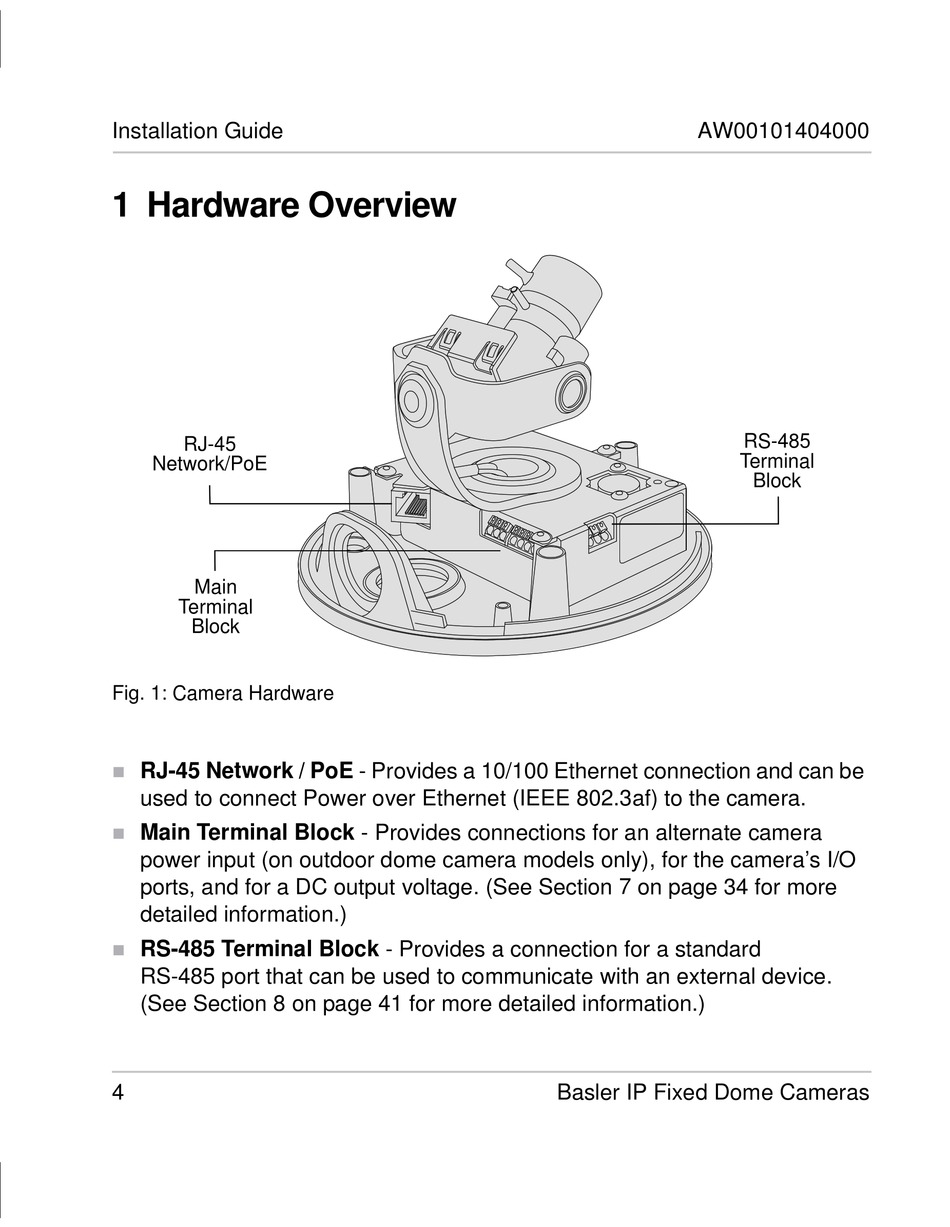

Fig. 1: Camera Hardware
 RJ-45 Network / PoE - Provides a 10/100 Ethernet connection and can be
used to connect Power over Ethernet (IEEE 802.3af) to the camera.
 Main Terminal Block - Provides connections for an alternate camera
power input (on outdoor dome camera models only), for the camera's I/O
ports, and for a DC output voltage. (See Section 7 on page 34 for more
detailed information.)
RS-485 Terminal Block - Provides a connection for a standard

RS-485 port that can be used to communicate with an external device.
(See Section 8 on page 41 for more detailed information.)
