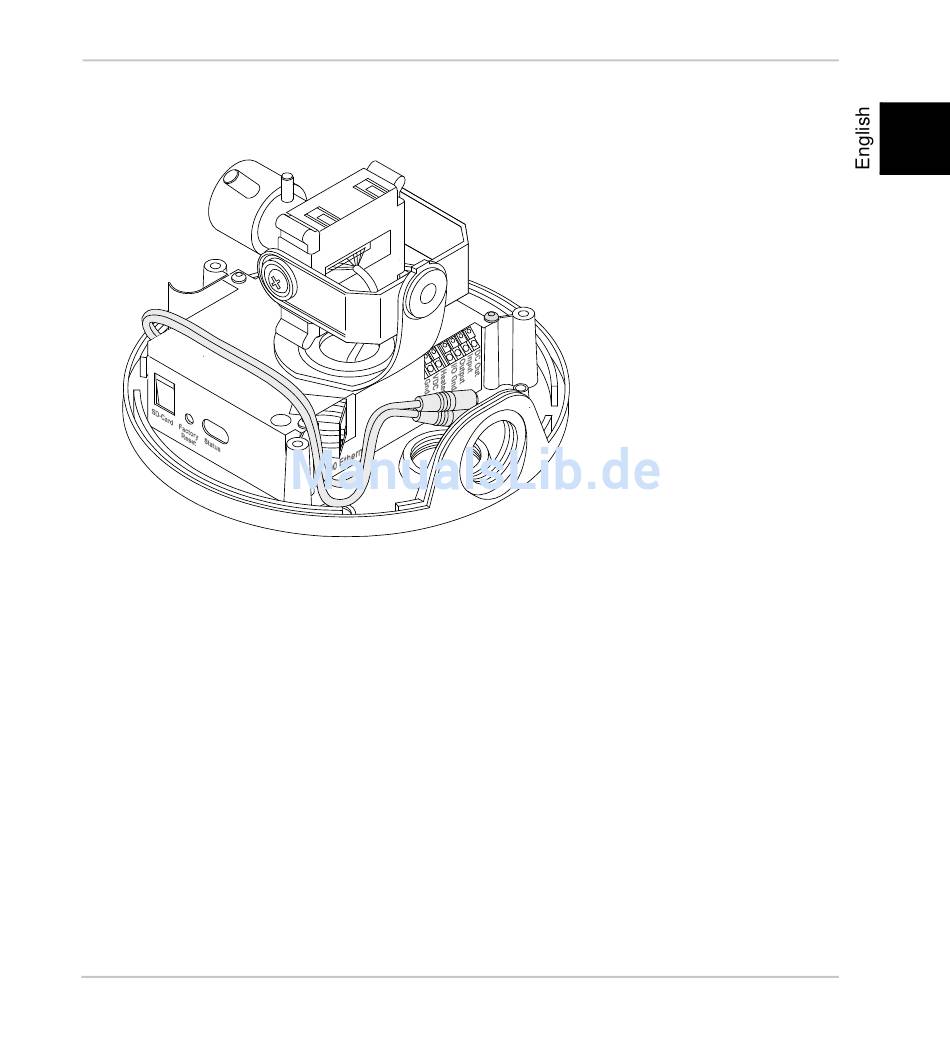

7. Route the Y-cable across the camera base as shown in the drawing below.
8. Plug a monaural microphone (or similar audio input device) with a 3.5 mm
plug into the jack on the end of the cable labeled "Input".
9. The 3.5 mm monaural jack on the end of the cable labeled "Output" can be
connected to an active speaker or, for example, to the line-in connector on
a PC. Note that the output from this jack is not amplified and cannot drive
headphones or a passive speaker.
Note: Software switchable 2.2 V power is available on the input line; this is
normally used with a microphone that requires power. Software switchable 20
dB gain is also available on the input line. See the camera user's manual for
more details.
